What is Rapid Prototyping: Types, Advantages, and Innovation

Contents show

1. Introduction

Rapid prototyping has reshaped product development, enabling industries to create and refine designs quickly.

This innovative process eliminates long development cycles and costly iterations, making it an essential tool in manufacturing, engineering, and design.

Rapid prototyping provides a bridge between concept and production by utilizing advanced technologies.

This blog will dive deep into the various methods, materials, advantages, and applications of rapid prototyping while exploring how it continues to revolutionize industries worldwide.

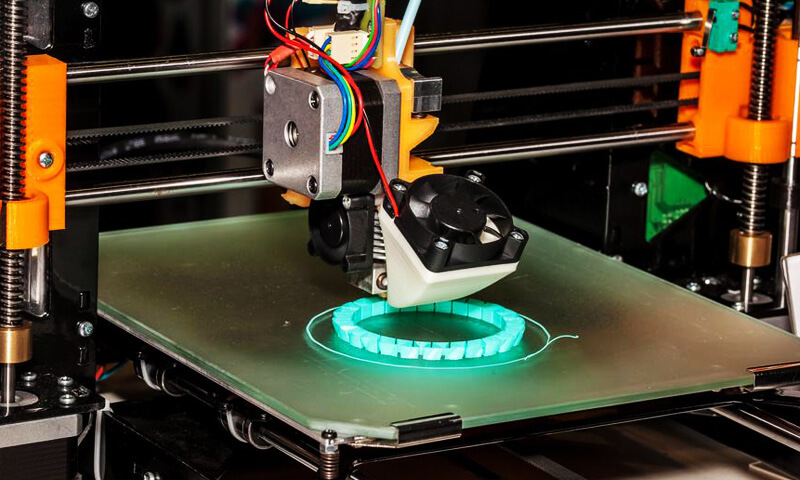

2. What is Rapid Prototyping?

Definition

Rapid prototyping involves quickly creating scale models or functional parts using advanced manufacturing technologies such as 3D printing.

Unlike traditional prototyping, which can be slow and costly, rapid prototyping focuses on speed and efficiency, enabling designers and engineers to iterate and refine concepts rapidly.

Comparison with Traditional Prototyping

Traditional prototyping often relies on manual processes that can extend project timelines and inflate costs.

In contrast, rapid prototyping leverages digital tools and automated machinery to produce prototypes swiftly.

For instance, a prototype that might take weeks using traditional methods can now be created in just a few days with rapid prototyping.

Evolution

The journey of rapid prototyping began in the 1980s with the advent of Computer-Aided Design (CAD) software and the emergence of 3D printing.

Since then, continuous advancements have propelled rapid prototyping into mainstream use, making it an essential tool for industries like automotive, aerospace, and consumer electronics.

3. How Does the Rapid Prototyping Process Work?

The rapid prototyping process involves a series of steps that take a concept from a digital design to a tangible model.

Each stage ensures precision, speed, and adaptability, allowing designers to evaluate, test, and refine their ideas efficiently. Here’s how the process works:

1: Design Creation

Start with CAD Modeling:
Engineers and designers use Computer-Aided Design (CAD) software to create a detailed 3D model of the desired product.
This digital blueprint serves as the foundation for the prototyping process.
Incorporate Features:
The model includes critical details like dimensions, tolerances, and intended functionality. Modifications can be made quickly, enabling iterative design.

2: File Preparation and Conversion

Convert to a Compatible Format:
The CAD model is converted into a file format recognized by prototyping machines, such as STL (Standard Tessellation Language) or OBJ.
These files translate the design into a series of layers for fabrication.
Optimize the Design:
Adjustments are made to ensure the design is suitable for the chosen prototyping method,
such as adding support structures for 3D printing or selecting appropriate tool paths for CNC machining.

3: Material Selection

Choose Based on Application:
Depending on the prototype’s purpose, a suitable material is selected. Options range from metals like aluminum and stainless steel to plastics like ABS and nylon.
Match Material Properties:
Factors like durability, flexibility, and heat resistance guide material selection to align with project requirements.

4: Prototype Fabrication

Additive Manufacturing (3D Printing):
The prototype is built layer by layer by depositing or curing material. Technologies like FDM, SLA, or SLS are commonly used for creating complex geometries.
Subtractive Manufacturing (CNC Machining):
Material is removed from a solid block using cutting tools to achieve the desired shape and features. This method is ideal for parts requiring tight tolerances.
Vacuum Casting or Injection Molding:
For producing small batches or prototype molds, liquid material is poured into molds and solidified.

5: Post-Processing

Refinement and Finishing:
After fabrication, the prototype undergoes processes like sanding, polishing, painting, or coating to enhance its appearance and functionality.
Assembly (if Required):
For multi-part prototypes, components are assembled to create a fully functional model.

6: Testing and Evaluation

Functional Testing:
The prototype is evaluated for performance, durability, and functionality under real-world conditions.
Design Iteration:
Feedback from testing informs design improvements. The revised CAD model undergoes the same process until the desired results are achieved.

7: Repeat as Needed

Iterative Prototyping:
Multiple iterations can be produced rapidly, enabling continuous improvement and refinement.

4. Types of Rapid Prototyping Technologies (Expanded)

Rapid prototyping technologies have revolutionized product development, offering a spectrum of methods tailored to varying needs for speed, precision, material, and design complexity.

Below is a detailed exploration of the most widely used rapid prototyping technologies, enriched with insights and examples.

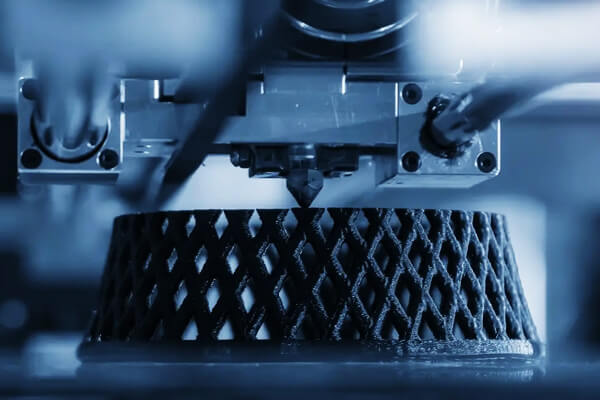

Additive Manufacturing (3D Printing)

Additive manufacturing, commonly referred to as 3D printing, creates objects layer by layer from digital designs.

It is the most versatile prototyping technology, allowing for intricate geometries and efficient material usage.

Fused Deposition Modeling (FDM):

Process: Heats and extrudes thermoplastic filaments layer by layer.
Materials: PLA, ABS, PETG, nylon.
Applications: Basic prototypes, jigs, and fixtures.
Example: FDM is frequently used for proof-of-concept models in consumer electronics.

Stereolithography (SLA):

Process: Uses a laser to solidify liquid resin into precise layers.
Materials: Photopolymers.
Applications: High-detail models, dental molds, and jewelry prototypes.
Example: SLA excels in creating intricate medical models, such as surgical guides.

Selective Laser Sintering (SLS):

Process: Fuses powdered material (plastic, metal) with a high-powered laser.
Materials: Nylon, TPU, metal powders.
Applications: Durable, functional parts for aerospace and automotive sectors.
Example: SLS is commonly used to produce lightweight brackets in aircraft design.

Advantages:

Highly customizable designs.
Ideal for quick iterations in early product development.

Challenges:

Surface finishes may require post-processing.
Limited material strength compared to subtractive methods.

Subtractive Manufacturing (CNC Machining)

Subtractive manufacturing removes material from a solid block to create the desired shape, delivering precise prototypes with excellent mechanical properties.

Processes and Applications:

CNC Milling: Creates complex 3D shapes with rotating cutting tools.

- Applications: Aerospace components, molds, and housings.

CNC Turning: Ideal for cylindrical parts like shafts and fittings.

- Applications: Automotive drive shafts and industrial connectors.

Materials: Aluminum, steel, titanium, and plastics like POM, ABS, and PC.

Example: CNC machining is a go-to for high-precision aerospace components that must meet strict tolerances.

Advantages:

High dimensional accuracy (tolerances up to ±0.005mm).
Broad material compatibility for durable parts.

Challenges:

Longer setup times and potential for material waste.

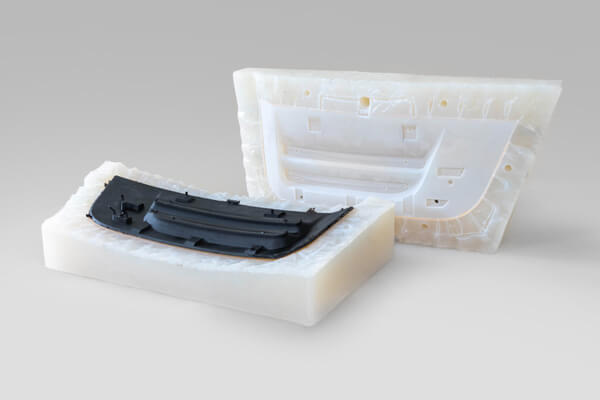

Vacuum Casting

Vacuum casting replicates parts by pouring liquid material into a silicone mold under vacuum pressure, ensuring high-quality surface finishes and detail retention.

Applications:

- Ideal for low-volume plastic parts like casings, ergonomic tools, and consumer electronics.

Materials: Polyurethane, rubber-like elastomers, thermosetting plastics.
Advantages:

- Mimics the feel and look of injection-molded parts.
- Cost-effective for small production runs (10–100 units).

Example: Vacuum casting is often used to create wearable technology prototypes.

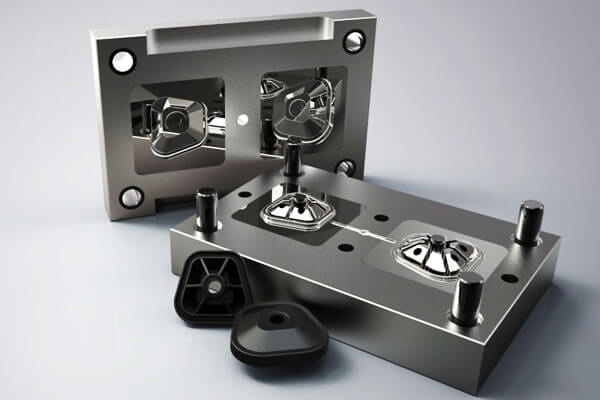

Rapid Tooling

Rapid tooling creates molds or dies quickly, often bridging the gap between prototyping and mass production.

Subtypes and Applications:

- Soft Tooling: Silicone or aluminum molds for prototypes.

- - Applications: Low-volume injection molding.

- Hard Tooling: Durable steel molds for higher durability.

- - Applications: Mass production of plastic and metal parts.

Advantages:

- Accelerates pre-production testing.
- Reduces lead times for production tooling.

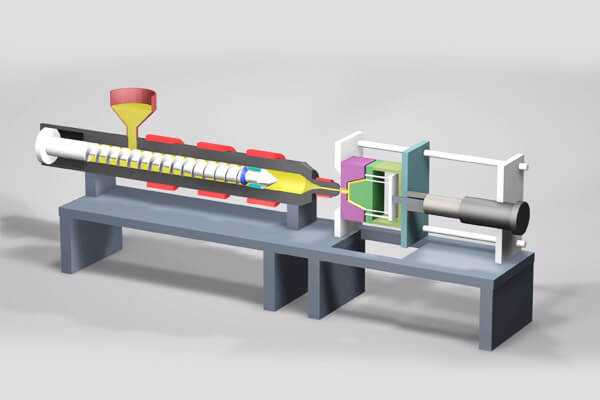

Injection Molding (Rapid Prototyping for Molded Parts)

Rapid prototyping for injection molding allows for the production of parts using prototype molds for functional testing and design validation.

Applications:

- Consumer goods, automotive components, and industrial fittings.

Advantages:

- High fidelity for design validation.
- Economical for high-quality prototypes.

Rapid Sheet Metal Fabrication

This technique transforms sheet metal into functional prototypes using processes like laser cutting, bending, and welding.

Applications:

- Enclosures, brackets, HVAC components, and panels.

Materials: Aluminum, stainless steel, mild steel, and galvanized steel.
Advantages:

- Customizable designs with short lead times.
- Excellent for testing structural integrity.

Hybrid Methods

Hybrid rapid prototyping combines subtractive and additive techniques for maximum flexibility and performance.

Example: CNC machining combined with SLA 3D printing for a prototype that requires both durability and intricate detailing.
Advantages:

- Optimized for complex designs.
- Allows blending of multiple materials.

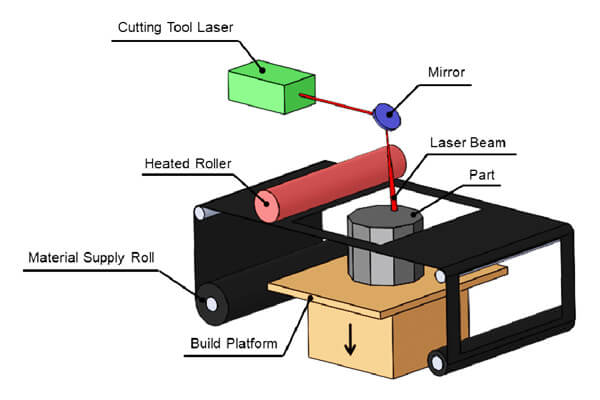

Laminated Object Manufacturing (LOM)

Process: Layers of paper, plastic, or metal laminates are bonded together and cut into shape using a laser or blade.
Applications: Concept models, visual aids, educational tools.

Electron Beam Melting (EBM)

Process: An electron beam melts metal powder in a vacuum environment to form parts.
Applications: Biocompatible implants, aerospace components, lightweight structures.

Comparison of Rapid Prototyping Technologies

Technology	Strengths	Limitations	Best Applications
Additive Manufacturing	Complex geometries, low material waste	Surface finish requires post-processing	Design iterations, lightweight parts
CNC Machining	High precision, material durability	Longer setup, material waste	Functional components, tight tolerances
Vacuum Casting	Excellent surface quality, low cost	Limited to small batches	Plastic enclosures, aesthetic models
Rapid Tooling	Accelerates mold creation	Higher initial costs	Pre-production molds
Injection Molding	High-quality parts, scalability	Requires upfront mold creation	Prototypes mimicking final products
Sheet Metal Fabrication	Structural strength, custom shapes	Limited to 2D and simple 3D designs	Panels, brackets, enclosures

5. Materials Used in Rapid Prototyping

Choosing the right material is crucial for achieving the desired properties and performance of a prototype.

Rapid prototyping technologies can accommodate a wide range of materials, each with unique characteristics suited to specific applications.

Below is an overview of common materials used in rapid prototyping, categorized by type, along with their key attributes and typical applications.

Plastics

Plastics are widely used due to their versatility, ease of processing, and cost-effectiveness. They can be easily colored and finished to match final product aesthetics.

Material	Key Attributes	Common Applications
ABS (Acrylonitrile Butadiene Styrene)	Strong, durable, impact-resistant	Functional prototypes, end-use parts
PLA (Polylactic Acid)	Eco-friendly, easy to print, good surface finish	Concept models, educational tools
Nylon (Polyamide)	High strength, flexibility, heat resistance	Functional testing, aerospace components
PETG (Polyethylene Terephthalate Glycol)	Tough, transparent, chemical resistance	Clear parts, consumer goods
TPU (Thermoplastic Polyurethane)	Elastic, wear-resistant	Flexible parts, wearable technology

Metals

Metals offer superior strength, durability, and heat resistance, making them ideal for functional prototypes and end-use parts in demanding industries.

Material	Key Attributes	Common Applications
Aluminum	Lightweight, corrosion-resistant, conductive	Aerospace components, automotive parts
Stainless Steel	Corrosion-resistant, high-strength	Medical devices, tooling
Titanium	Extremely strong, lightweight, biocompatible	Implants, aerospace structures
Copper	Excellent electrical and thermal conductivity	Electrical connectors, heat exchangers

Composites

Composites combine different materials to achieve enhanced properties that single materials cannot provide alone.

Material	Key Attributes	Common Applications
Carbon Fiber	High strength-to-weight ratio, stiffness	Sports equipment, automotive racing parts
Graphene	Exceptional strength, conductivity, lightweight	Advanced electronics, structural components
Fiber-reinforced polymers (FRP)	Increased strength and durability	Industrial products, marine applications

Ceramics

Ceramics are valued for their hardness, heat resistance, and chemical inertness, suitable for specialized applications requiring these properties.

Material	Key Attributes	Common Applications
Alumina (Al2O3)	High hardness, excellent wear resistance	Cutting tools, wear-resistant parts
Zirconia (ZrO2)	Tough, high-temperature stability	Dental implants, biomedical devices
Silicon Carbide (SiC)	Extreme hardness, thermal conductivity	Bearings, semiconductor manufacturing

6. Advantages of Rapid Prototyping

Rapid prototyping has become an indispensable tool in modern manufacturing and design, offering numerous benefits that streamline processes, reduce costs, and improve product quality.

Below are the key advantages:

Accelerated Development Cycle

Rapid prototyping significantly reduces the time it takes to turn an idea into a tangible product. This speed enables:

Quick iteration of designs, reducing delays in development.
Faster response to market demands and user feedback.

Cost Savings

By identifying and addressing design flaws early in the process, rapid prototyping minimizes the risk of expensive errors during mass production. This leads to:

Lower costs for tooling adjustments.
Fewer resources are spent on rework or redesigns.

Improved Product Quality

The iterative nature of rapid prototyping allows for continuous refinement of the design. This results in:

Enhanced functionality and performance.
Greater precision in meeting customer requirements.

Encouragement of Innovation

The flexibility and speed of rapid prototyping encourage experimentation with new ideas and creative designs. Benefits include:

Testing unconventional solutions without high upfront costs.
Pushing the boundaries of design and functionality.

Customization and Personalization

Rapid prototyping supports the creation of bespoke designs, making it ideal for industries requiring individualized solutions. Examples include:

Tailored medical devices, such as prosthetics or implants.
Customized consumer goods like personalized jewelry or eyewear.

Enhanced Functional Testing

Prototypes produced through rapid prototyping are often durable enough for real-world testing. This enables:

Early validation of product performance and usability.
Detection of potential design weaknesses before production.

Material Versatility

Rapid prototyping accommodates a wide range of materials, such as:

Plastics for lightweight and flexible components.
Metals for durable and robust parts.
Hybrid materials for specific functional needs.

Improved Stakeholder Collaboration

Physical prototypes make it easier for teams to communicate ideas and gather feedback. Benefits include:

Better understanding of design concepts.
Informed decision-making during project reviews.

Waste Reduction

Additive manufacturing techniques used in rapid prototyping are highly material-efficient. This results in:

Minimal material waste compared to traditional methods.
Lower environmental impact in the development phase.

Market Competitiveness

The ability to innovate and iterate faster gives companies a competitive edge. Rapid prototyping allows businesses to:

Launch products ahead of competitors.
Quickly adapt to changing market trends.

7. Applications of Rapid Prototyping

Product Development and Design:

Concept Models: Rapid prototyping allows designers to visualize and test ideas in physical form early in the design process, facilitating quicker design iterations and improvements.
Proof of Concept: Engineers can use prototypes to validate the functionality of a design concept before investing in full-scale production, saving time and resources.

Automotive Industry:

Part Verification: Prototyping is used to verify the fit, form, and function of automotive parts before they go into mass production, reducing the risk of costly redesigns.
Customization: For low-volume or custom parts, rapid prototyping can produce complex geometries that are otherwise difficult or expensive to manufacture with traditional methods.

Aerospace and Defense:

Lightweighting: Prototypes can be used to test lightweight structures with complex internal geometries, aiding in the design of components that reduce weight without sacrificing strength.
Testing and Validation: Rapid prototyping allows for the creation of test models for aerodynamic testing, component stress testing, and system integration.

Medical and Dental:

Custom Prosthetics and Implants: Rapid prototyping enables the creation of patient-specific prosthetics and implants, tailored to fit the unique anatomy of each individual.
Surgical Planning: Surgeons can use 3D printed models to plan complex surgeries, visualize anatomical structures, and practice procedures, potentially improving surgical outcomes.

Consumer Goods:

Market Testing: Companies can produce prototypes of new products to test market reactions, gather consumer feedback, and refine designs before mass production.
Ergonomics and Aesthetics: Rapid prototyping helps in evaluating the ergonomics and aesthetic appeal of products, ensuring they meet consumer expectations.

Electronics and Telecommunications:

Enclosures and Casings: Prototypes of electronic devices can be created to test fit, heat dissipation, and assembly processes.
Component Design: Rapid prototyping aids in designing and testing electronic components, especially those with complex geometries or cooling channels.

Architecture and Construction:

Scale Models: Architects and builders use rapid prototyping to produce scale models of buildings or structures for visualization, presentation, and design validation.
Molds and Formwork: Custom molds or formwork can be quickly produced for unique architectural elements or construction projects.

Tooling and Manufacturing:

Rapid Tooling: Prototypes can be used to create molds or tools for low-volume production, reducing lead times for new products.
Bridge Tooling: Rapid prototyping can produce bridge tools that allow for small batch production while permanent tooling is being prepared.

Education and Training:

Learning Aids: Prototypes serve as excellent teaching tools, allowing students to interact with real-world models of theoretical concepts.
Training Models: In fields like medicine, engineering, or architecture, rapid prototyping provides realistic models for training purposes.

Art and Jewelry:

Custom Designs: Artists and jewelers can create unique, one-of-a-kind pieces or prototypes for casting.
Exhibition Models: Rapid prototyping can produce detailed, accurate models for exhibitions, showcasing intricate designs or concepts.

Research and Development:

Experimental Testing: Researchers can prototype parts to test theories or new materials under controlled conditions.
Innovation: Rapid prototyping facilitates innovation by allowing for the quick exploration of new ideas, forms, and functions.

Entertainment and Special Effects:

Props and Models: The film and entertainment industry uses rapid prototyping to create detailed props, models, and special effects that would be impractical or time-consuming to produce manually.

Reverse Engineering:

Part Duplication: Rapid prototyping can replicate parts from existing products or historical artifacts for study or replacement.

Food Industry:

Customized Food Products: Some companies use rapid prototyping to create molds for unique food products or to prototype new packaging designs.

8. Limitations of Rapid Prototyping

While rapid prototyping offers numerous advantages, it has its limitations that must be carefully considered during product development.

These constraints often arise from the methods, materials, or costs associated with the process.

Limited Material Options

Many rapid prototyping technologies, especially additive manufacturing, have a restricted range of compatible materials.
Certain metals, composites, or high-performance polymers may not be available for specific prototyping methods.
Material properties such as strength and heat resistance may differ significantly from production-grade materials.

Surface Finish and Quality

Prototypes produced through additive methods like 3D printing may have visible layer lines, requiring post-processing to achieve a smooth surface.
Achieving tight tolerances and fine details can be challenging, especially with low-resolution processes.

Cost for Low Volumes

While rapid prototyping is cost-effective for small batches or unique parts, the per-unit cost can be high compared to mass production techniques like injection molding.
The initial investment in high-end equipment and specialized software may also be prohibitive for smaller firms.

Structural Limitations

Prototypes may not replicate the mechanical properties of the final product, making them less suitable for stress testing or long-term durability evaluations.
Additive manufacturing processes may introduce anisotropy, where the material’s strength varies along different axes.

Size Constraints

Many rapid prototyping machines have limited build volumes, restricting the size of the parts that can be produced.
Large components may require assembly from smaller parts, which can affect the prototype’s structural integrity.

Limited Production Scalability

Rapid prototyping methods are typically designed for small-scale production, making them unsuitable for high-volume manufacturing.
Transitioning from prototyping to full-scale production often requires redesigning tools or parts for mass production methods.

Time-Intensive Post-Processing

Some prototypes require extensive post-processing, such as sanding, painting, or heat treatment, to meet aesthetic or functional requirements.
This additional time can negate the speed advantage of rapid prototyping for complex designs.

Accuracy and Tolerance Issues

Prototyping methods, particularly fused deposition modeling (FDM) or selective laser sintering (SLS), may struggle to achieve the precision required for certain applications.
Warping or distortion can occur during manufacturing, impacting dimensional accuracy.

9. Common Mistakes to Avoid in Rapid Prototyping

Neglecting Material Properties:

Mistake: Choosing materials without considering their properties to the final product’s requirements.
Solution: Understand the material’s mechanical, thermal, and chemical properties.
Ensure the prototype material mimics the behavior of the intended production material as closely as possible.

Overlooking Design for Manufacturability (DFM):

Mistake: Designing parts without considering how they will be manufactured in production.
Solution: Incorporate DFM principles from the start. Design with production processes in mind to avoid features that are difficult or impossible to replicate in mass production.

Ignoring Tolerances:

Mistake: Not specifying or understanding the necessary tolerances for the prototype, leading to parts that don’t fit or function as intended.
Solution: Clearly define and communicate tolerances. Use prototyping technologies that can achieve the required precision or plan for post-processing to meet tolerances.

Skipping Iterative Testing:

Mistake: Creating one prototype and moving directly to production without iterative testing and refinement.
Solution: Use prototyping as a means to test, refine, and validate design changes. Multiple iterations are often necessary to optimize performance.

Lack of Documentation:

Mistake: Failing to document the prototyping process, including design changes, material choices, and test results.
Solution: Keep detailed records of all aspects of the prototyping process. This documentation is invaluable for troubleshooting, scaling up production, and future reference.

Misunderstanding the Purpose of Prototyping:

Mistake: Using rapid prototyping as a final production method rather than a tool for design validation and development.
Solution: Remember that prototypes are meant to test concepts, not to replace production. Use them to learn, adjust, and improve before committing to manufacturing.

Overcomplicating the Design:

Mistake: Adding unnecessary complexity to the prototype, can increase costs and lead times.
Solution: Simplify designs where possible. Complex geometries might be possible with RP but consider if they are necessary or if they will complicate production.

Not Considering Post-Processing:

Mistake: Overlooking the need for post-processing like sanding, painting, or assembly, which can significantly affect the final part’s appearance and functionality.
Solution: Plan for post-processing steps in your prototyping timeline and budget. Understand how these steps might alter the prototype’s properties.

Underestimating Costs and Time:

Mistake: Assuming rapid prototyping is always quick and cheap, leading to budget overruns and project delays.
Solution: Be realistic about the costs and time involved. Factor in material costs, machine time, labor, post-processing, and potential iterations.

Over-Reliance on Prototyping:

Mistake: Relying solely on prototypes for all testing without considering other methods like simulation or traditional testing.
Solution: Use rapid prototyping in conjunction with other validation methods. Simulation can predict behaviors that might not be observable in a prototype.

Miscommunication with RP Service Providers:

Mistake: Poor communication with external prototyping services, leading to misunderstandings about design intent or specifications.
Solution: Provide clear, detailed specifications and maintain open communication. Discuss design intent, tolerances, materials, and any special requirements.

10. How to Choose the Right Rapid Prototyping Method for Your Project?

Selecting the most suitable rapid prototyping method is a crucial step in achieving project success.

Below are the key factors to consider, providing a structured approach to your decision-making process:

Project Requirements

Clearly define the purpose of the prototype.

Form-Only Prototypes: If your goal is to showcase the design, methods like stereolithography (SLA) can provide highly detailed and visually appealing models.
Functional Testing: For parts requiring mechanical performance, CNC machining or selective laser sintering (SLS) might be ideal.
Iterative Development: Use fused deposition modeling (FDM) for quick iterations.

Material Choice

Material properties play a pivotal role in selecting a method.

For strength and durability, opt for CNC machining with metals like aluminum or high-performance plastics like PEEK.
If flexibility is required, resin-based 3D printing or vacuum casting can replicate elastic properties.
Heat Resistance: High-temperature materials like ULTEM or titanium are suited for SLS or metal 3D printing.

Precision Needed

Assess the detail and tolerance requirements of your prototype.

For intricate designs or medical devices, SLA or direct metal laser sintering (DMLS) offers exceptional accuracy.
Less precise methods like FDM are sufficient for early-stage models where aesthetics or tight tolerances are not critical.

Budget Constraints

Evaluate both upfront and long-term costs.

Small Volumes:3D printing is cost-effective for single parts or short runs.
Higher Volumes: For larger production needs, injection molding becomes more economical despite higher initial tooling costs.
Consider additional costs for post-processing or specialized materials.

Time Constraints

Choose a method aligned with your timeline.

FDM or SLA provides rapid turnaround, often within a few days, for simpler parts.
Complex processes like metal 3D printing or CNC machining may require longer lead times but deliver better performance.

Complexity of Design

Complex geometries and moving parts may demand advanced techniques.

Multi-Material 3D Printing: Perfect for prototypes requiring multiple material properties in a single piece.
SLS or DMLS: Ideal for intricate designs or lattice structures that are hard to achieve with subtractive methods.

Final Product Material Compatibility

For prototypes requiring functional testing, ensure the method supports materials similar to the final product.

For metal-based final products, CNC machining or metal 3D printing is recommended.
For plastic parts, methods like SLA or injection molding can closely replicate the final material properties.

Scale and Size

Consider the physical dimensions of your prototype.

Large-scale prototypes may require CNC machining or large-format FDM printing.
Ensure the chosen process can accommodate the size without sacrificing precision.

13. Conclusion

Rapid prototyping has transformed modern product development, offering unprecedented speed, flexibility, and cost-effectiveness.

By embracing this technology, companies can innovate faster, reduce risks, and deliver high-quality products to market.

We encourage you to explore rapid prototyping services with a trusted provider(like DEZE) to unlock new possibilities for your next project.

14. FAQs

Is rapid prototyping expensive?

Initial costs can vary, but rapid prototyping generally offers cost savings for low-volume runs and reduces overall expenses by minimizing errors and speeding up development.

How does rapid prototyping differ from traditional prototyping?

Rapid prototyping uses advanced manufacturing techniques to produce prototypes faster and more efficiently, whereas traditional methods can be slower and more labor-intensive.
