1. Introduction
Steel is one of the most critical materials in modern engineering, supporting industries ranging from construction and automotive manufacturing to aerospace and energy infrastructure.
Yet, not all steels perform identically. Depending on how much and which alloying elements they contain, steels split into low-alloy steel and high-alloy steel families.
Striking the right balance between performance and cost hinges on understanding these distinctions.
Therefore, this article examines low-alloy steel (LAS) and high-alloy steel (HAS) from multiple angles—chemistry, mechanics, corrosion resistance, processing, economics, and real-world applications—to guide your material selection.
2. What Is Low-Alloy Steel (LAS)?
Low-alloy steel is a category of ferrous materials engineered to achieve superior mechanical performance and environmental resistance through the addition of carefully controlled alloying elements.
Defined by the American Iron and Steel Institute (AISI) as steels containing a total alloy content not exceeding 5% by weight,
low-alloy steels offer a refined balance between performance, manufacturability, and cost—positioning them as workhorse materials across multiple industries.
Chemical Composition and Microstructure
Unlike carbon steel, which relies solely on the iron-carbon system,
low-alloy steels incorporate a variety of metallic elements that synergistically improve material properties without fundamentally altering the steel’s phase structure.
The most common alloying elements and their typical roles include:
- Chromium (Cr): Enhances hardenability, oxidation resistance, and high-temperature strength.
- Nickel (Ni): Improves fracture toughness, especially at sub-zero temperatures.
- Molybdenum (Mo): Increases strength at elevated temperatures and enhances creep resistance.
- Vanadium (V): Promotes fine grain size and contributes to precipitation hardening.
- Copper (Cu): Provides moderate atmospheric corrosion resistance.
- Titanium (Ti): Stabilizes carbides and enhances microstructural stability.
These alloying elements influence phase stability, solid-solution strengthening, and the formation of dispersed carbides or nitrides.
As a result, low-alloy steels typically exhibit microstructures composed of ferrite, pearlite, bainite, or martensite, depending on the specific heat treatment and alloy content.
For example, chromium-molybdenum steels (such as AISI 4130 or 4140 steel) form tempered martensitic structures after quenching and tempering, offering high strength and wear resistance without sacrificing ductility.
Classification and Designation
Low-alloy steels are classified based on their mechanical behavior, heat treatment response, or intended service environment. Common categories include:
- Quenched and Tempered Steels: Known for high strength and toughness.
- High-Strength Low-Alloy (HSLA) Steels: Optimized for structural applications with enhanced formability and weldability.
- Creep-Resistant Steels: Designed to maintain strength at elevated temperatures.
- Weathering Steels (e.g., ASTM A588/Corten): Developed for improved atmospheric corrosion resistance.
In the AISI-SAE designation system, low-alloy steels are often identified by four-digit numbers starting with “41”, “43”, “86”, or “87”, indicating specific alloying combinations (e.g., 4140 = 0.40% C, Cr-Mo steel).
3. What Is High-Alloy Steel (HAS)?
High-alloy steel refers to a broad class of steels containing a total alloying element content exceeding 5% by weight, often reaching levels of 10% to 30% or more, depending on the grade and application.
Unlike low-alloy steel, which improves properties with modest additions, high-alloy steel relies on substantial concentrations of elements
such as chromium (Cr), nickel (Ni), molybdenum (Mo), tungsten (W), vanadium (V), and cobalt (Co) to achieve highly specialized performance characteristics.
These steels are engineered for demanding environments requiring exceptional corrosion resistance, mechanical strength, high-temperature stability, or wear resistance.
Common examples include stainless steels, tool steels, maraging steels, and superalloys.
Chemical Composition and Microstructure
High-alloy steels possess complex chemistries designed to control the steel’s microstructure at both room and elevated temperatures. Each alloying element plays a precise role:
- Chromium (≥12%): Promotes passivation by forming a thin, adherent oxide layer, which is essential for corrosion resistance in stainless steels.
- Nickel: Enhances toughness, impact resistance, and corrosion resistance, while also stabilizing the austenitic phase.
- Molybdenum: Increases strength at high temperatures and improves resistance to pitting and crevice corrosion.
- Vanadium and Tungsten: Promote fine carbide formation for wear resistance and hot hardness.
- Cobalt and Titanium: Used in tool and maraging steels for solid-solution strengthening and precipitation hardening.
These alloying strategies enable precise phase manipulation, including retention of austenite, formation of martensite, or stabilization of intermetallic compounds and complex carbides.
For example:
- Austenitic stainless steels (e.g., 304, 316): High Cr and Ni contents stabilize a non-magnetic face-centered cubic (FCC) structure, maintaining ductility and corrosion resistance even at cryogenic temperatures.
- Martensitic and precipitation-hardened grades (e.g., 17-4PH, H13 tool steel): Feature a body-centered tetragonal (BCT) or martensitic structure that can be significantly hardened by heat treatment.
Classification of High-Alloy Steels
High-alloy steels are generally categorized into the following main types:
| Category | Typical Alloys | Primary Features | Common Applications |
|---|---|---|---|
| Stainless Steel | 304, 316, 410, 17-4PH | Corrosion resistance via Cr-passivation; some grades offer strength + ductility | Chemical equipment, medical tools, architecture |
| Tool Steel | H13, D2, M2, T1 | High hardness, abrasion resistance, red hardness | Dies, cutting tools, molds |
| Maraging Steels | 18Ni(250), 18Ni(300) | Ultra-high strength, toughness; precipitation hardening of Ni-rich martensite | Aerospace, defense, high-performance mechanical parts |
| Superalloys | Inconel 718, Hastelloy, Rene 41 | Exceptional strength + corrosion/oxidation resistance at high temperatures | Turbines, jet engines, nuclear reactors |
4. Performance Characteristics of Low-Alloy vs High-Alloy Steel
Understanding how low-alloy vs high-alloy steel differs in mechanical and environmental performance is essential for engineers and designers
when selecting materials for structural integrity, service longevity, and cost-efficiency.
These performance attributes arise not only from chemical composition but also from thermomechanical treatments and microstructural control.
To provide a detailed comparison, the key characteristics are outlined below:
| Property | Low-Alloy Steel | High-Alloy Steel |
|---|---|---|
| Tensile Strength | Typically ranges from 450–850 MPa, depending on heat treatment and grade | Often exceeds 900 MPa, especially in hardened tool steels or maraging grades |
| Yield Strength | Can reach 350–700 MPa after quenching and tempering | Can surpass 800 MPa, particularly in precipitation-hardened and martensitic steels |
| Ductility (Elongation %) | Moderate to good ductility (10–25%), suitable for forming | Varies widely; austenitic grades offer >30%, while tool steels may be <10% |
Hardness |
Achieves 200–350 HB; limited by carbon and alloy levels | Can exceed 600 HV (e.g., in M2 or D2 steels); ideal for wear-critical applications |
| Wear Resistance | Enhanced by carbides in Cr/Mo grades, but moderate overall | Excellent in tool and die steels due to high carbide volume fraction |
| Fracture Toughness | Generally good at low to moderate strength levels | Austenitic steels offer high toughness; some high-strength grades may be notch-sensitive |
| Fatigue Resistance | Sufficient for dynamic load applications; sensitive to surface finish and stress | Superior in alloyed martensitic and maraging steels; enhanced crack resistance |
Creep Resistance |
Limited long-term strength above 450°C | Excellent in nickel-rich high-alloy steels; used in turbines, boilers |
| Thermal Stability | Phase stability and strength degrade above 500–600°C | Retains structural integrity up to 1000°C in superalloys and high-Cr grades |
| Corrosion Resistance | Poor to moderate; often needs coatings or inhibitors | Excellent, especially in stainless steels with >12% Cr and Ni-Mo additions |
| Heat Treatability | Readily hardenable via quench and temper cycles | Complex treatments: solution annealing, precipitation hardening, cryogenic steps |
Weldability |
Generally good; some cracking risk with high-carbon variants | Varies; austenitic grades weld well, others may require preheating or filler metals |
| Machinability | Fair to good, especially in leaded or resulfurized variants | Can be difficult due to hardness and carbide content (use of coated tools recommended) |
| Formability | Suitable for bending and rolling in annealed states | Excellent in annealed austenitic steels; limited in hardened tool steels |
Key Observations:
- Strength vs. Toughness Trade-off: High-alloy steels often deliver higher strength, but some grades may lose ductility or toughness.
Low-alloy steels balance these properties effectively for structural use. - Temperature Performance: For high-temperature operations (e.g., power plants, jet engines), high-alloy steels significantly outperform low-alloy counterparts.
- Corrosion Protection: While low-alloy steels often rely on external coatings, high-alloy steels—especially stainless and superalloys—provide intrinsic corrosion protection via passive oxide films.
- Cost vs. Performance: Low-alloy steel offers a favorable cost-to-performance ratio for general applications,
whereas high-alloy steel is reserved for scenarios demanding specialized functionality.
5. Applications Across Industries
Low-Alloy Steel

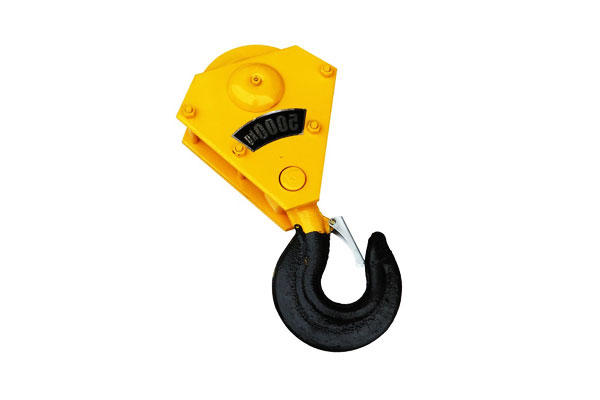

- Construction: Bridges, cranes, rebar, structural beams
- Automotive: Axles, frames, suspension components
- Oil & Gas: Pipeline steels (API 5L X70, X80)
- Heavy Machinery: Mining equipment, pressure vessels
High-Alloy Steel
- Aerospace: Turbine blades, jet engine components, landing gear
- Chemical Processing: Reactors, heat exchangers, pumps

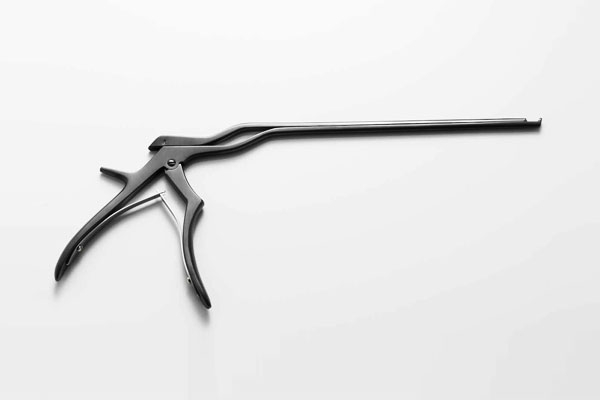

- Medical: Surgical instruments, orthopedic implants (316L stainless)
- Energy: Nuclear reactor internals, supercritical steam lines
6. Conclusion
Both low-alloy vs high-alloy steel offer critical benefits, depending on the performance needs and environmental challenges of a given application.
Low-alloy steels strike a favorable balance between strength, processability, and cost, making them ideal for general engineering use.
High-alloy steels, on the other hand, deliver unparalleled mechanical and environmental performance for high-stakes industries such as aerospace, medical, and power generation.
By understanding the chemical, mechanical, and economic differences between these steel families,
decision-makers can optimize materials for safety, durability, and total cost of ownership—ensuring engineering success from the blueprint to the final product.
DEZE is the perfect choice for your manufacturing needs if you need high-quality alloy steel parts.
FAQs
Is stainless steel considered a high-alloy steel?
Yes. Stainless steel is a common type of high-alloy steel. It typically contains at least 10.5% chromium, which enables the formation of a passive oxide film that resists corrosion.
Many stainless steels also contain nickel, molybdenum, and other alloying elements.
Can low-alloy steel be used in corrosive environments?
Low-alloy steels offer moderate corrosion resistance, especially when alloyed with elements like copper or chromium.
However, they often require protective coatings (e.g., galvanizing, painting) or cathodic protection when used in aggressive or marine environments.
How does alloy content affect weldability?
Higher alloy content can reduce weldability due to increased hardenability and the risk of cracking.
Low-alloy steels generally exhibit better weldability, although preheating and post-weld heat treatment may still be necessary.
High-alloy steels often require specialized welding procedures and filler metals.
Are there international standards that distinguish between low and high-alloy steels?
Yes. Standards from organizations such as ASTM, ASME, ISO, and SAE/AISI define chemical composition limits and categorize steels accordingly.
These standards also specify mechanical properties, heat treatment conditions, and applications.
Which type of alloy steel is better for high-temperature applications?
High-alloy steels, particularly nickel-based superalloys or high-chromium stainless steels,
perform significantly better in high-temperature environments due to their resistance to creep, oxidation, and thermal fatigue.
Low-alloy steels typically degrade at temperatures above 500°C.
Are high-alloy steels harder to machine and fabricate?
Yes, in general. High-alloy steels, especially tool steels and hardened stainless grades, can be difficult to machine due to their high hardness and carbide content.
Their weldability may also be limited in some grades. Conversely, many low-alloy steels are easier to weld, machine, and form.
Which steel type is more cost-effective?
Low-alloy steels are typically more cost-effective in terms of initial purchase price and fabrication.
However, high-alloy steels may offer a lower total cost of ownership in demanding applications due to their durability, resistance to failure, and reduced maintenance needs.
