1. Introduction
ASTM A216 WCB is one of the most commonly used cast carbon steels in industrial equipment manufacturing, particularly in components exposed to moderate-to-high pressure and temperature.
The ASTM A216 standard governs carbon steel castings for valves, flanges, fittings, and other pressure-containing parts.
Among the standard’s three grades—WCA, WCB, and WCC—WCB (Wrought Carbon grade B) stands out due to its excellent balance of mechanical strength, weldability, castability, and cost-effectiveness.
2. Chemical Composition of ASTM A216 WCB
ASTM A216 Grade WCB is a carbon steel casting material designed for moderate- and high-temperature service.
Its chemical composition balances strength, ductility, castability, and weldability.
| Element | Standard Limit (%wt) | Typical Content (%wt) | Function / Role in Alloy |
| Carbon (C) | ≤ 0.30 | ~0.25 | Increases strength and hardness; excessive carbon reduces toughness and weldability. |
| Manganese (Mn) | 0.60 – 1.00 | ~0.80 | Enhances tensile strength and hardenability; acts as a deoxidizer and improves hot working characteristics. |
| Silicon (Si) | 0.25 – 0.60 | ~0.45 | Primary deoxidizer; increases strength and improves fluidity during casting. |
| Phosphorus (P) | ≤ 0.04 | ~0.020 | Harmful impurity; excessive amounts lead to embrittlement and reduced toughness. |
| Sulfur (S) | ≤ 0.04 | ~0.015 | Also an impurity; small amounts can improve machinability, but high levels cause brittleness and hot cracking. |
| Copper (Cu) (optional) | ≤ 0.50 | ≤ 0.30 | May be present as residual; improves corrosion resistance but excessive levels may affect toughness. |
| Nickel (Ni) (optional) | Not required | ≤ 0.30 | Sometimes added to improve low-temperature toughness. |
| Molybdenum (Mo) (optional) | ≤ 0.20 | ≤ 0.15 | Improves high-temperature strength and corrosion resistance, though not commonly added in standard WCB. |
3. Mechanical Properties of ASTM A216 WCB
ASTM A216 Grade WCB is widely recognized for its balanced mechanical properties, which make it suitable for pressure-containing applications such as valves, flanges, fittings, and pressure vessel components.
Key Mechanical Properties
| Property | Typical Value | Test Condition | Remarks |
| Tensile Strength | 485–655 MPa (70–95 ksi) | Room Temperature (RT) | Measures resistance to pulling forces; adequate for structural integrity. |
| Yield Strength | ≥ 250 MPa (36 ksi) | RT | Minimum stress needed to cause permanent deformation. |
| Elongation (in 50 mm) | ≥ 22% | RT | Indicates ductility and the ability to deform before fracture. |
| Reduction of Area | ≥ 30% | RT | Reflects ductile behavior and ability to resist brittle fracture. |
| Impact Toughness | ~20–27 J at 20°C | Charpy V-Notch (optional test) | Ensures resistance to shock loading and brittle fracture in mild climates. |
| Hardness (Brinell) | 143–197 HB | After Normalizing | Indicates wear resistance; excessive hardness may reduce machinability. |
| Modulus of Elasticity | ~200 GPa (29 × 10³ ksi) | RT | Reflects stiffness; useful for engineering stress-strain calculations. |
Thermal and Mechanical Stability
A216 WCB retains its mechanical properties reasonably well at elevated temperatures up to 425°C (800°F).
Beyond this, properties like tensile strength and toughness begin to degrade, necessitating the use of higher-grade materials such as chrome-moly steels or austenitic stainless steels.
4. Material Designation Explained
Understanding the designation of ASTM A216 WCB is essential for engineers, specifiers, and procurement professionals when selecting materials for pressure-retaining cast components.
Each part of the designation conveys specific information about the manufacturing process, mechanical performance, and service suitability.
What is ASTM A216 Grade WCB?
The term WCB in ASTM A216 WCB is a grade designation defined by the American Society for Testing and Materials (ASTM). It is broken down as follows:
- W – Denotes that the material is weldable carbon steel.
- C – Indicates the material is intended for use in casting (as opposed to forging).
- B – Refers to the mechanical property range within the ASTM A216 standard. Specifically, WCB has medium tensile strength compared to other subgrades like WCA and WCC.
In summary, WCB = Weldable Cast Grade B Carbon Steel.
Classification within ASTM A216
ASTM A216 includes three main carbon steel grades for cast components used in high-temperature service:
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Typical Application |
| WCA | 415–585 | ≥ 205 | Low-stress parts, general purpose |
| WCB | 485–655 | ≥ 250 | Standard grade for valves and pressure parts |
| WCC | 485–655 | ≥ 275 | Higher toughness; often used in severe service |
- WCA: Lower strength and cost-effective, less commonly used.
- WCB: Most popular due to its balance of strength, ductility, weldability, and economy.
- WCC: Stronger and slightly more ductile; used where additional mechanical integrity is needed.
5. Manufacturing and Heat Treatment of ASTM A216 WCB
ASTM A216 WCB production involves precise foundry practices, followed by controlled heat treatment, machining, and rigorous quality control.
Casting of WCB
ASTM A216 WCB is primarily manufactured through casting, a process well-suited for producing complex geometries that are difficult to achieve via forging or machining.
The process begins with mold preparation—typically using sand or metal—into which molten WCB steel is poured. Upon solidification, the casting takes the shape of the mold cavity.
Several casting techniques can be employed, including sand casting, investment casting, and shell molding, depending on the part’s complexity, required precision, and production volume.
Sand casting is the most commonly used method for WCB due to its cost-effectiveness and suitability for large components.
However, it offers less precision and surface finish quality compared to more refined methods like investment casting, which is preferred for intricate or high-tolerance parts.
Heat Treatment of WCB
Post-casting heat treatment is mandatory for ASTM A216 WCB to ensure desirable mechanical properties, relieve internal stresses, and refine grain structure.
The most common heat treatments include:
| Process | Temperature Range (°C) | Purpose |
| Normalizing | 890–950 | Refines grain size, homogenizes structure |
| Annealing | 815–870 | Relieves residual stress, improves machinability |
| Tempering | 540–650 (if needed) | Enhances toughness after normalization or quenching |
| Stress Relieving | 600–680 | Minimizes residual stress without significant strength change |
Note: Heat treatment cycles must be precisely controlled and verified by furnace charts or thermocouple data per ASTM A961 requirements.
Machining and Finishing of WCB
After heat treatment, WCB castings undergo precision machining to achieve final dimensions and functional surfaces such as sealing faces, threads, and stem holes.
Key machining operations:
- Turning, drilling, boring, and tapping
- CNC milling for complex profiles
- Surface grinding for flange faces and seats
Due to its balanced carbon content (~0.25%), WCB is moderately machinable. Proper tooling and cutting fluids enhance surface finish and tool life.
Quality Control and Inspection of WCB
A216 WCB components undergo comprehensive non-destructive and destructive testing to verify compliance with design codes such as ASME, API, and ASTM.
Common inspection and quality control steps:
| Test | Purpose |
| Visual & Dimensional Check | Identify casting defects, verify tolerances |
| Hydrostatic Pressure Test | Confirm pressure containment integrity |
| Radiographic Testing (RT) | Detect internal flaws and porosity |
| Ultrasonic Testing (UT) | Evaluate subsurface discontinuities |
| Magnetic Particle Inspection (MPI) | Surface crack detection (ferrous only) |
| Hardness Test | Confirm heat treatment effectiveness |
| Mechanical Testing | Tensile, yield, elongation (per ASTM A370) |
| Chemical Analysis (Spectrometry) | Ensure compliance with ASTM A216 chemistry |
6. WCB in Valve and Pressure-Containing Components
ASTM A216 Grade WCB (Wrought Carbon Steel, Grade B) is one of the most widely used cast carbon steels for pressure-retaining parts, especially in the valve and piping industry.
Its mechanical robustness, moderate corrosion resistance, and excellent castability make it the material of choice for manufacturing a variety of industrial components operating under high-pressure and temperature conditions.
Why WCB Is Preferred in Valves
WCB is ideally suited for valve bodies and bonnets due to its:
- Excellent pressure containment: Suitable for high-pressure service up to Class 2500 (per ASME B16.34).
- Good weldability and machinability: Ensures ease of fabrication and maintenance.
- High-temperature tolerance: Typically used in temperatures ranging from −29°C (−20°F) up to 425°C (800°F).
- Economical cost-performance ratio: More affordable than alloy or stainless steel options, yet reliable for general-purpose service.
Typical Valve Types Using A216 WCB
| Valve Type | Application Role | Why WCB is Used |
| Gate Valve | On/off flow control in pipelines | High strength and rigidity; suitable for full-open/full-close applications |
| Globe Valve | Flow regulation and throttling | Good castability for complex flow paths; reliable under moderate throttling |
| Check Valve | Prevents backflow in piping systems | Withstands impact from reverse flow; maintains sealing integrity under pressure |
| Ball Valve | Quick shut-off and isolation | Easy to machine spherical components; offers tight sealing and pressure resistance |

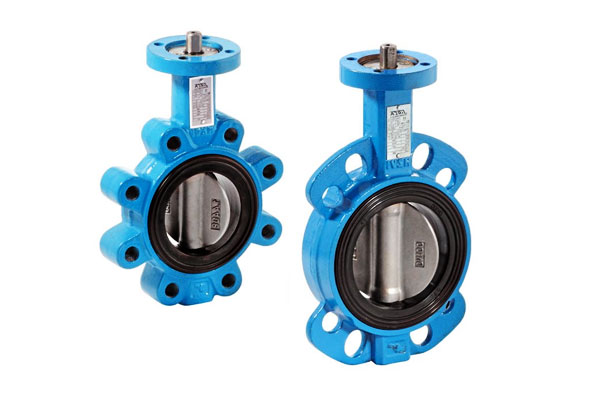

| Butterfly Valve | Flow control in large-diameter, low-to-medium pressure lines | Lightweight, cost-effective option when cast in large sizes |
| Plug Valve | On/off and flow diversion applications | Castability and machinability allow for reliable sealing geometry |
| Pressure Relief Valve (body only) | Protects systems from overpressure by venting excess fluid | Structural durability and pressure containment for valve bodies |
WCB Performance Under Pressure and Temperature
ASTM A216 WCB complies with ASME B16.34 and API 600 standards for pressure–temperature ratings and valve performance. Typical service ratings include:
- Pressure Classes: 150, 300, 600, 900, 1500, and 2500.
- Temperature Range: −29°C to 425°C (−20°F to 800°F), with potential modifications for higher performance if necessary.
- Allowable Stress: Based on ASME Section II, Part D (e.g., ~20,000 psi at ambient temperature for design).
Pressure-Containing Components Beyond Valves
Apart from valves, A216 WCB is also commonly used in:
- Pressure vessel components (non-code parts like manways or flanges)
- Pump housings and impellers
- Compressor casings
- Pipeline fittings and flanged connections
These components demand structural stability under internal pressure, temperature fluctuations, and mechanical loads—conditions where WCB performs reliably.
7. Weldability and Corrosion Resistance of ASTM A216 WCB
Weldability
ASTM A216 WCB, being a carbon steel with relatively low alloy content, exhibits good weldability, making it suitable for fabrication and repairs in the field.
However, to ensure optimal weld integrity and to prevent the formation of cracks or hard zones, certain precautions must be taken:
- Preheating: Preheating the material (typically to 150–250°C or 300–480°F) is recommended, especially for thicker sections, to reduce the risk of hydrogen-induced cracking.
- Post-Weld Heat Treatment (PWHT): In some pressure-containing applications (as specified by codes like ASME B31.3 or API 598), PWHT is performed to relieve residual stress and restore ductility.
- Filler Metal Selection: Carbon steel-compatible filler materials (e.g., E7018 for SMAW) are typically used to match mechanical properties and minimize metallurgical mismatch.
Overall, WCB’s predictable behavior during welding, combined with its structural toughness, makes it a reliable choice for welded pressure-retaining parts, such as valves and flanges.
Corrosion Resistance
While A216 WCB is valued for its strength and machinability, its corrosion resistance is relatively limited, especially in aggressive environments.
This is due to its low chromium and alloy content, which makes it vulnerable to:
- General corrosion in humid or marine environments
- Pitting and crevice corrosion in chloride-rich conditions
- Oxidation at elevated temperatures over prolonged exposure
Corrosion Mitigation Strategies:
- Internal Coatings and Linings: Epoxy coatings, rubber linings, or glass flake linings can be applied internally for valves and vessels.
- Cathodic Protection: Used in underground or submerged systems.
- Surface Treatments: Galvanizing or painting can enhance corrosion resistance externally.
- Alloy Overlays or Cladding: In highly corrosive applications, stainless steel cladding or weld overlays are used to provide a corrosion-resistant surface
while maintaining the strength and cost-effectiveness of WCB as the base material.
8. A216 WCB vs. Forged and Other Cast Materials
ASTM A216 Grade WCB is one of the most commonly used cast carbon steels in pressure-retaining applications, but it is not the only option available.
Comparison Table:
| Property | A216 WCB(Cast Carbon Steel) | A105(Forged Carbon Steel) | A352 LCB(Low Temp Cast Steel) | A351 CF8(Cast 304 SS) | A351 CF8M(Cast 316 SS) |
| Manufacturing Method | Casting (typically sand cast) | Forging | Casting (sand cast) | Casting | Casting |
| Temperature Range (°C) | −29 to +425 | −29 to +425 | −46 to +345 | −196 to +870 | −196 to +870 |
| Corrosion Resistance | Moderate | Moderate | Moderate | Good | Excellent |
| Low Temperature Toughness | Fair | Good | Excellent | Moderate | Moderate |
| Tensile Strength (MPa) | ≥485 | ≥485 | ≥485 | ≥485 | ≥485 |
| Yield Strength (MPa) | ≥250 | ≥250 | ≥250 | ≥205 | ≥205 |
| Weldability | Good | Excellent | Good | Good | Good |
| Dimensional Accuracy | Moderate | High | Moderate | High | High |
| Surface Finish | Moderate | Excellent | Moderate | Excellent | Excellent |
| Cost | Low | Medium | High | High | Very High |
| Common Applications | Valves, flanges, pump bodies | Forged flanges, small valve parts | Cryogenic valves, LPG/LNG services | Food, pharma, clean chemical | Marine, saltwater, chemicals |
| Standards/Specs | ASTM A216 / ASME SA216 | ASTM A105 / ASME SA105 | ASTM A352 / ASME SA352 | ASTM A351 / SA351 | ASTM A351 / SA351 |
Notes:
- WCB: A cast carbon steel material suitable for general pressure and temperature applications. It offers excellent cost-performance balance.
- A105: A forged carbon steel material with superior mechanical strength and dimensional precision, ideal for high-strength small components.
- LCB: Designed for low-temperature environments, such as LNG facilities, with excellent impact toughness at subzero temperatures.
- CF8 / CF8M: Cast stainless steels equivalent to 304 and 316 respectively, used in applications requiring high corrosion resistance.
9. Applications of ASTM A216 WCB
ASTM A216 WCB is a versatile cast carbon steel grade widely used across multiple industries due to its balanced mechanical properties, good weldability, and cost-effectiveness.
Its primary applications focus on pressure-containing components, especially in valve manufacturing and piping systems.
Oil and Gas Industry
- Valves and Fittings: A216 WCB is extensively used for gate, globe, check, and ball valve bodies in upstream, midstream, and downstream sectors.
Its ability to withstand high pressure and moderate temperatures makes it ideal for controlling the flow of crude oil, natural gas, and refined products. - Pressure Vessels and Flanges: Castings made from WCB serve in pressure vessels and pipeline flanges where mechanical strength and pressure integrity are critical.
- Pump Casings and Manifolds: Due to its toughness and machinability, it is often chosen for pump housings and manifolds in complex piping systems.
Power Generation
- Steam Valves and Components: WCB valves are common in steam power plants, handling moderate-to-high pressure steam lines.
The material’s thermal stability supports repeated thermal cycling. - Feedwater and Cooling Systems: Components like valve bodies, pump casings, and flanges fabricated from WCB are used in cooling water circuits and feedwater systems.
Petrochemical and Chemical Processing
- Process Valves: A216 WCB valves are suitable for many process fluids, especially where corrosion is not extreme.
Their strength and weldability allow for fabricating of customized components. - Heat Exchanger Housings: Cast steel heat exchanger components made from WCB provide durability and pressure containment.
Water and Wastewater Treatment
- Pipeline Valves: Gate, globe, and check valves made from WCB are common in municipal waterworks and wastewater treatment plants, where reliable shut-off and flow control are essential.
- Pump and Valve Components: WCB’s cost-effectiveness makes it a preferred choice for large valves and pump parts in water treatment applications.
Structural and Mechanical Uses
- Heavy Equipment Castings: Beyond valves and piping, A216 WCB is used for cast parts in heavy machinery requiring toughness and fatigue resistance.
- Marine Components: Certain non-corrosive environments in marine applications also use WCB for structural castings.
9. Advantages and Limitations of ASTM A216 WCB
Advantages of ASTM A216 WCB
High Temperature and Pressure Resistance:
A216 WCB is engineered to perform reliably under elevated temperatures and pressures,
making it ideal for critical industrial applications such as valves and pressure vessels where thermal and mechanical stresses are common.
Excellent Mechanical Properties:
It offers a well-balanced combination of strength, ductility, and toughness, enabling components to withstand loads, resist deformation, and absorb energy effectively.
These properties remain stable across a broad temperature range, ensuring dependable performance.
Cost-Effectiveness:
Compared to high-alloy or special materials, A216 WCB is relatively economical.
Its widespread availability and the straightforward casting and machining processes contribute to its affordability without compromising essential performance.
Good Machinability and Fabrication:
The material machines well using standard equipment and can be welded with proper techniques, facilitating the fabrication of complex valve bodies and pressure-containing parts from cast sections.
Wide Availability:
Globally produced by many foundries and suppliers, A216 WCB ensures steady supply and reduced lead times for various industries.
Limitations of ASTM A216 WCB
Susceptibility to Corrosion:
As a carbon steel, A216 WCB is vulnerable to corrosion in moist, oxygen-rich, or chemically aggressive environments.
This necessitates protective coatings, linings, or cathodic protection, which may increase system costs and complexity.
Reduced Low-Temperature Toughness:
The material’s impact resistance decreases at low temperatures, raising the risk of brittle fracture.
For cryogenic or cold-service applications, alternative materials (like A352 LCB) or additional heat treatments are often required.
Welding Challenges:
Welding A216 WCB demands caution due to the risk of hardening and cracking in the heat-affected zone (HAZ).
Preheating, post-weld heat treatment (PWHT), and careful selection of filler metals and welding parameters are necessary, adding complexity and expense to fabrication and repairs.
11. Relevant Standards and Specifications
| Standard/Spec | Relevance |
| ASTM A216 / ASME SA216 | Governs WCB chemistry and mechanical properties |
| ASME B16.34 | Pressure-temperature ratings for valves |
| API 600 / API 598 | Valve construction and testing |
| ASME B31.1 / B31.3 | Pressure piping design codes |
| NACE MR0175 / ISO 15156 | WCB not generally recommended for sour service unless hardness is controlled |
12. Conclusion
ASTM A216 WCB is a foundational material for industrial castings, especially in valves and pressure components.
It offers a robust balance of mechanical performance, manufacturability, and affordability.
Though limited in corrosion resistance and low-temperature service, WCB remains unmatched in many general applications.
DEZE: High-Precision Valve Casting Solutions for Demanding Applications
DEZE is a specialized provider of precision valve casting services, delivering high-performance components for industries that require reliability, pressure integrity, and dimensional accuracy.
From raw castings to fully machined valve bodies and assemblies, DEZE offers end-to-end solutions engineered to meet stringent global standards.
Our Valve Casting Expertise Includes:
Investment Casting for Valve Bodies & Trim
Utilizing lost wax casting technology to produce complex internal geometries and tight-tolerance valve components with exceptional surface finishes.
Sand Casting & Shell Mold Casting
Ideal for medium to large valve bodies, flanges, and bonnets—offering a cost-effective solution for rugged industrial applications, including oil & gas and power generation.
Precision Machining for Valve Fit & Seal Integrity
CNC machining of seats, threads, and sealing faces ensures every cast part meets dimensional and sealing performance requirements.
Material Range for Critical Applications
From stainless steels (CF8M, CF3M), A216 WCB to duplex and high-alloy materials, DEZE supplies valve castings built to perform in corrosive, high-pressure, or high-temperature environments.
Whether you require custom-engineered control valves, gate valves, check valves, or high-volume production of industrial valve castings, DEZE is your trusted partner for precision, durability, and quality assurance.
FAQs
What is ASTM A216 grade WCB?
ASTM A216 grade WCB is a cast carbon steel specification commonly used for valve bodies, fittings, and pressure-containing parts designed for moderate to high temperature and pressure service.
What does WCB mean in steel grade?
WCB stands for “Wrought Carbon B-grade,” indicating a specific carbon steel casting grade under ASTM A216 with defined chemical composition and mechanical properties.
Is A216 WCB killed carbon steel?
Yes, A216 WCB is typically a killed carbon steel, meaning it is fully deoxidized during steelmaking to prevent gas porosity and improve soundness.
What is A216 equivalent material?
Equivalent materials include ASTM A352 LCB for low-temperature applications and ASTM A105 for forged carbon steel, though A105 has different mechanical characteristics and is forged rather than cast.
Is A216 WCB forged or cast?
A216 WCB is a cast carbon steel, produced by casting processes such as sand casting or investment casting.
What is WCB metal?
WCB metal refers to the carbon steel alloy designated as WCB under ASTM A216, widely used for manufacturing cast steel components in pressure and valve applications.
