Aluminum Bronze Casting Services

1. Introduction

Aluminum bronze alloys—copper-based materials containing 5–12 wt.% aluminum—trace their origins to early 20th‑century naval engineering.

Metallurgists first recognized that adding aluminum to copper dramatically enhanced strength and corrosion resistance, especially in seawater.

Today, aluminum bronze casting enables the production of complex, high‑performance components that would be impossible or prohibitively expensive to machine from wrought bar stock.

In this article, we explore alloy chemistry, casting methods, microstructure, properties, and real‑world applications.

By the end, you’ll understand why aluminum bronze remains the material of choice for demanding marine, industrial, and even aerospace environments.

2. Alloy Composition & Metallurgy

Aluminum bronzes derive their exceptional properties from a carefully balanced blend of copper and strategic alloying elements.

In practice, most commercial grades fall into three primary chemistries:

Aluminum itself (5–12 wt.%) dissolves into the copper lattice, creating an α‑Cu matrix with yield strengths up to 400 MPa—50 % higher than pure copper.

Next, intermetallic κ phases (κ I, κ II, κ III) nucleate as the alloy cools below ~930 °C.

These hard, complex compounds boost wear resistance but require tight cooling‑rate control: cooling above 100 °C/min keeps κ precipitates below 1 µm,

maximizing toughness (Charpy energy ~35 J), whereas slower cooling yields coarse plates that can embrittle the alloy.

3. Casting Processes

Aluminum bronze’s versatility stems in large part from its compatibility with multiple casting methods.

Each process delivers distinct advantages in terms of tolerances, surface finish, porosity control, and economic batch sizes.

Below, we analyze the five most common techniques and highlight best practices for melting, pouring, and mold design.

Investment Casting (Lost‑Wax)

• Overview: Molds form by coating a sacrificial wax pattern with ceramic slurry. After dewaxing, the resulting ceramic shell captures intricate details down to 0.5 µm Ra.

• Tolerances & Finish: Dimensional accuracy of ± 0.2 mm and superior surface finish (0.5–1.0 µm Ra).
• Batch Size & Cost: Ideal for small‑ to medium‑volume runs (10–1,000 pieces). Per‑part cost ranges from $100–$500, depending on complexity.
• Key Considerations:

• • Control shell thickness to balance strength (avoiding shell failure) with thermal shock resistance.
  • Optimize dewax and burn‑out schedules to prevent shell cracking.

Sand Casting

• Overview: Sand molds—typically resin‑bonded silica—offer low tooling expense and accommodate parts up to several tons.
• Tolerances & Finish: Achieves ± 1.0 mm accuracy and 3–6 µm Ra after standard cleaning.
• Batch Size & Cost: Best for large, low‑volume components (> 50 kg) with per‑part costs as low as $50.
• Key Considerations:

• • Use controlled moisture content (3–5 %) in green sand to minimize gas porosity.
  • Employ mold and core vents or vacuum casting variants to reduce trapped gases.

Centrifugal Casting

• Overview: Rotating molds generate centrifugal force, driving metal into thin sections and squeezing out inclusions.
• Tolerances & Finish: Cylindrical parts reach ± 0.5 mm tolerance; surface finishes around 1.5 µm Ra.
• Typical Applications: Bearings, bushings, and sleeves that demand virtually pore‑free microstructures.

• Key Considerations:

• • Adjust rotational speeds (200–1,500 rpm) to control wall thickness and feed rates.
  • Preheat molds to 250–350 °C to reduce thermal shock and cracking.

Vacuum Casting

• Overview: Drawing molten alloy into molds under vacuum eliminates dissolved gases and minimizes shrinkage porosity.
• Tolerances & Finish: Comparable to sand casting (± 1 mm) but with markedly improved internal soundness.
• Batch Size & Cost: Suited for small‑ to medium‑volume critical components; tooling costs exceed standard sand molds by ~30 %.
• Key Considerations:

• • Maintain vacuum levels below 10⁻² Torr during pouring.
  • Flux and degas meticulously—aluminum bronze’s affinity for oxygen can otherwise generate oxide entrainment.

Metal‑Mold (Die) Casting

• Overview: Permanent steel or iron dies allow rapid cycling and excellent repeatability for mid‑ to high‑volume parts.
• Tolerances & Finish: Achieves ± 0.3 mm dimensional accuracy and 1–2 µm Ra on first‑shot surfaces.
• Batch Size & Cost: Economical above volumes of 5,000 pieces; die costs range from $20,000 to $100,000.
• Key Considerations:

• • Control mold temperatures (350–450 °C) to balance fluidity with solidification timing.
  • Implement automatic shot‑blasting and shot‑peening to remove die release residues and improve fatigue life.

Melting & Pouring Best Practices

Across all methods, consistent temperature control and melt quality prove crucial:

• Melting Range: Keep aluminum bronze between 1,100 °C and 1,200 °C to ensure full dissolution of alloying elements.
• De‑oxidation & Fluxing: Add proprietary fluxes (e.g., borax‑based) at melt temperature to scavenge oxides and sulfides.
• Degassing: Sparge with inert gases (argon or nitrogen) for 3–5 minutes to reduce hydrogen porosity.
• Pouring Temperature: Pour within a narrow window of 1,100 ± 10 °C to avoid thermal shock in molds and reduce dross formation.

4. Microstructure & Heat Treatment

As-cast aluminum bronze exhibits an α‑Cu matrix peppered with fine κ (kappa) intermetallic phases along grain boundaries.

If the mold cools rapidly (> 100 °C/min), grains remain small (< 100 µm) and κ precipitates stay nanoscale; this yields peak strength (~650 MPa UTS) and toughness (~35 J Charpy).

Conversely, slower cooling encourages coarse κ plates that boost hardness but reduce impact resistance.

Foundries and end-users apply heat treatments to refine properties:

• Homogenization (700 °C, 4 h): Eliminates chemical segregation, stabilizing κ distribution.
• Annealing (500 °C, 2 h): Softens the matrix (down to ~200 HB) for easier machining.
• Age Hardening (350 °C, 8 h): Allows controlled growth of κ′ precipitates, increasing hardness up to ~300 HB without sacrificing ductility.

5. Mechanical Properties

Aluminum bronze casting outperforms many alloys in both strength and wear resistance:

Property	C63000 (As‑Cast)	C95400 (Age‑Hardened)
Tensile Strength (UTS)	550–650 MPa	600–700 MPa
Yield Strength (0.2% offset)	350–450 MPa	400–500 MPa
Elongation at Break	15–25 %	10–18 %
Hardness (Brinell, HB)	180–240	220–300
Fatigue Endurance Limit	~280 MPa (10⁷ cycles)	~320 MPa (10⁷ cycles)
Charpy Impact Toughness (V‑Notch)	≥ 30 J	~ 20 J

Moreover, aluminum bronze combines wear resistance—through abrasion‑resistant κ phases—with high toughness, which metal‑matrix composites and stainless steels struggle to match simultaneously.

6. Corrosion & Erosion Resistance

In seawater at 25 °C, aluminum bronze exhibits a corrosion rate below 0.01 mm/year, rivalling that of 316 L stainless steel.

Its iron and nickel additions foster stable oxide films that repel chlorides and sulfides.

Additionally, the hard κ phases resist cavitation erosion: tests on pump impellers demonstrate mass losses under 0.5 mg/(cm²·h) even after 100 h of cavitating flow.

In acidic (pH 3) environments, aluminum bronze corrodes at ~0.05 mm/year—far lower than typical carbon steels.

These alloys also resist slurry erosion thanks to their high hardness and work‑hardening capability, making them ideal for solids‑handling applications in mining and dredging.

7. Advantages and Disadvantages of Aluminum Bronze Castings

Advantages

High Strength and Hardness

• Aluminum bronze castings exhibit exceptional mechanical properties, with tensile strengths ranging from 450–700 MPa
  (e.g., ZCuAl10Fe3 achieves 540 MPa via centrifugal casting) and hardness values of 120–240 HB, depending on alloy composition and heat treatment.

Excellent Corrosion Resistance

• Alloys like C63000 (9–11% Al) and QAl9-4 demonstrate superior resistance to seawater, brine, and acidic environments.
  For example, ZCuAl9Mn2 maintains a corrosion rate of 0.1–0.3 mm/year in seawater due to the formation of a stable Al₂O₃ oxide layer.

Superior Wear and Cavitation Resistance

• The presence of hard intermetallic phases (e.g., CuAl₂) and alloying elements like Mn and Fe enhances wear resistance.
  CuAl8Fe3 and ZCuAl10Fe3 are widely used in high-wear components such as pump impellers and worm gears.
  Additionally, CuAl11Ni5Fe4 shows 50% lower cavitation erosion than 316L stainless steel in high-velocity water jets.

Thermal Stability

• Retain mechanical properties at moderate to high temperatures (up to 400–500°C), outperforming many conventional bronzes.

Non-Sparking and Non-Magnetic

• Suitable for explosive environments like offshore drilling rigs and grain handling facilities.

Disadvantages

High Material and Production Costs

• Aluminum bronze is 2–4× more expensive per kg than carbon steel due to the cost of alloying elements like Al, Ni, and Fe.

Challenging Machining and Welding

• High hardness (e.g., ZCuAl9Fe4Ni4Mn2 at 180 HB after aging) and poor thermal conductivity accelerate tool wear.
  Welding is particularly difficult due to aluminum oxidation, which forms a tenacious Al₂O₃ layer.
  Specialized techniques like T247 high-manganese aluminum bronze weld rods and preheating are required to avoid defects like porosity and cracking.

Thermal Limitations

• While suitable for ambient to moderate temperatures (up to 250°C for ZCuAl10Fe3), prolonged exposure above 400°C leads to oxide scaling and strength degradation.
  This limits its use in high-temperature environments compared to nickel-based alloys.

Processing Sensitivity

• Casting defects like shrinkage porosity and aluminum segregation require strict process control. For instance, ZCuAl9Mn2 demands 1150–1250°C pouring temperatures and optimized mold preheating to minimize defects.

Weight:

• Density (~8.4 g/cm³) exceeds aluminum alloys, limiting use where lightweight dominates.

8. Applications of Aluminum Bronze Castings

Aluminum bronze castings serve a pivotal role wherever components must endure extreme environments, high loads, and aggressive media. In particular:

Marine Hardware

• Propellers and Rudder Stocks: Aluminum bronze’s exceptional resistance to seawater corrosion and cavitation
  makes it the material of choice for ship propellers and rudder stocks, where service lifetimes often exceed 10 years with minimal maintenance.

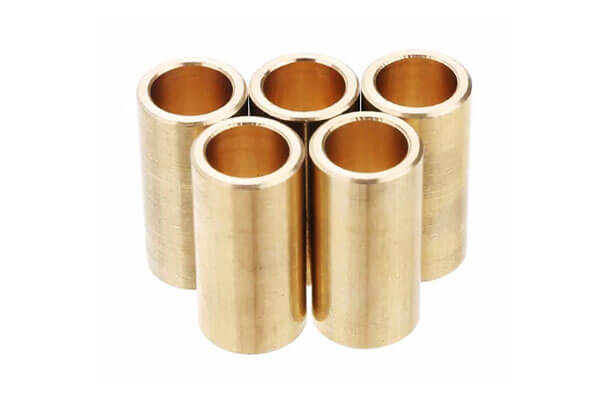

• Shaft Sleeves and Bearings: In seawater-lubricated bushings and stern tube bearings,
  aluminum bronze’s low friction coefficient and self‑lubricating properties reduce wear rates by up to 50 % compared with traditional brass alloys.

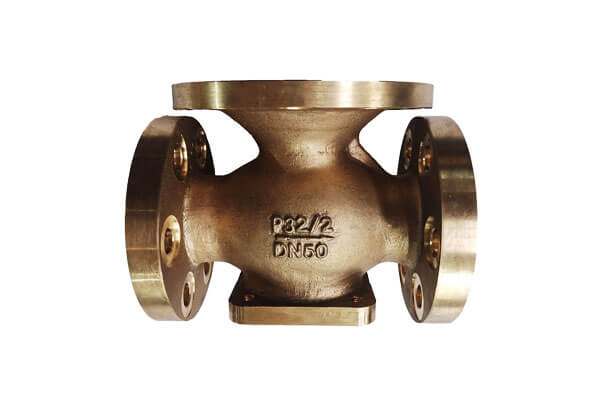

• Valve Bodies and Pump Housings: Offshore platforms rely on aluminum bronze valves and pump bodies to withstand chlorides and sulfides without pitting or stress‑corrosion cracking.

Industrial Machinery

• Pump Impellers and Wear Rings: In chemical‑ and slurry‑handling pumps,
  cast impellers in C95400 grade deliver both high strength (600–700 MPa UTS) and outstanding erosion resistance, extending overhaul intervals by 30 %.
• Worm Gears and Gearboxes: Age‑hardened aluminum bronze gears exhibit surface hardness up to 300 HB and tolerate heavy shock loads,
  making them prevalent in mining and cement‑processing equipment.
• Wear Plates and Thrust Washers: Applications requiring repetitive sliding contact, such as hydraulic cylinders and conveyor rollers, benefit from aluminum bronze’s combination of hardness and toughness.

Emerging & Specialized Uses

• Aerospace Bearings: Advanced C63000 bearings, often combined with polymer liners or additive‑manufactured honeycomb structures, support turbine shafts at temperatures up to 400 °C.
• Additive‑Casting Hybrids: Integrating 3D‑printed cores and conformal cooling channels into aluminum bronze castings
  enables rapid prototyping of complex valve manifolds and heat‑exchanger components, reducing lead time by 40 %.

9. Common Aluminum Bronze Grades

Aluminum bronzes encompass a family of copper‑based alloys in which aluminum is the principal alloying element.

Below are some of the most widely used grades, their nominal chemistries, distinguishing properties, and typical applications:

Grade (UNS)	Nominal Composition (wt %)	Key Properties	Typical Applications
C63000	Cu–10 Al–5 Ni–5 Fe	Excellent combination of strength, toughness, and wear resistance; good corrosion and cavitation resistance.	Pump impellers, valves, bearings, marine hardware
C95400	Cu–10 Al–5 Fe	High strength and hardness (through age‑hardening); good elevated‑temperature performance.	Worm gears, high‑load bearings, steam‑engine components
C61400	Cu–11 Al–4 Fe–4 Ni	Superior corrosion resistance in seawater; good fatigue strength.	Ship propellers, shaft sleeves, subsea connectors
C62100	Cu–11 Al–2 Ni–2 Fe	Balanced strength and ductility; good resistance to erosion and cavitation.	Hydraulic pump components, wear rings, thrust washers
C63200	Cu–9 Al–2 Ni–2 Fe	Higher ductility among aluminum bronzes; easier to machine.	Valve bodies, fittings, general marine castings
C95410	Cu–10 Al–5 Fe–0.1 C	Similar to C95400 but with added carbon for hardness; improved bearing performance.	Bearing bushings, wear pads, sliding elements

10. Conclusion

Aluminum bronze casting delivers an exceptional combination of strength, toughness, and corrosion/erosion resistance that few other alloys can match.

By selecting the right chemistry, casting method, and heat treatment schedule, engineers achieve complex geometries with minimal post‑machining.

Looking ahead, advances in vacuum and additive casting promise even better quality, reduced porosity, and faster turnaround, ensuring aluminum bronze remains a cornerstone of high‑performance cast components.

DEZE is the perfect choice for your manufacturing needs if you need high-quality aluminum bronze castings.

Contact us today!



FAQs

What is aluminum bronze?

Aluminum bronze refers to a group of copper-based alloys that contain aluminum as the primary alloying element, typically ranging from 5% to 12%.

It may also include elements like iron, nickel, and manganese to enhance specific properties such as strength, corrosion resistance, and wear resistance.

Why choose aluminum bronze over other bronze alloys?

Aluminum bronze offers superior corrosion resistance—especially in seawater—along with excellent mechanical strength, wear resistance, and fatigue performance.

These properties make it ideal for marine, aerospace, chemical processing, and heavy industrial applications.

How corrosion-resistant is aluminum bronze casting?

Aluminum bronze exhibits exceptional resistance to corrosion in seawater, salt spray, industrial atmospheres, and many acids.

The formation of a stable aluminum oxide layer (Al₂O₃) protects the surface from further degradation.

Is aluminum bronze easy to machine?

Aluminum bronze is machinable, especially in the as-cast or annealed condition.

However, hardened grades (like those with nickel and iron) can be abrasive and require carbide tools and proper machining parameters to avoid tool wear.

Is aluminum bronze suitable for welding?

Aluminum bronze can be welded, but it requires special procedures. Gas-shielded arc welding methods (such as GTAW or MIG) with appropriate filler metals are commonly used.

Preheating and post-weld heat treatment may be necessary to prevent cracking and maintain mechanical properties.
