Custom-Cast Butterfly Valves
Butterfly valves are critical components in industrial flow systems, often exposed to high pressures, repetitive operation cycles, and corrosive or abrasive media. In such demanding environments, every valve must deliver superior durability, precise dimensional accuracy, and reliable performance to ensure safety, efficacitas, et diu muneris vitae.
At DEZE Foundry, we specialize in producing custom-cast butterfly valves engineered to meet the exact requirements of our clients. Leveraging advanced casting technologies and rigorous quality control, we offer tailored solutions for flanged, lug, and wafer designs in materials ranging from stainless steel and duplex alloys to PTFE-lined or high-temperature metals.
Our comprehensive capabilities span engineering design, prototyping, Tooling, accuratius mittentes, Machining, calor, et superficies consummatione.
Custom Butterfly Valves — Precision Solutions

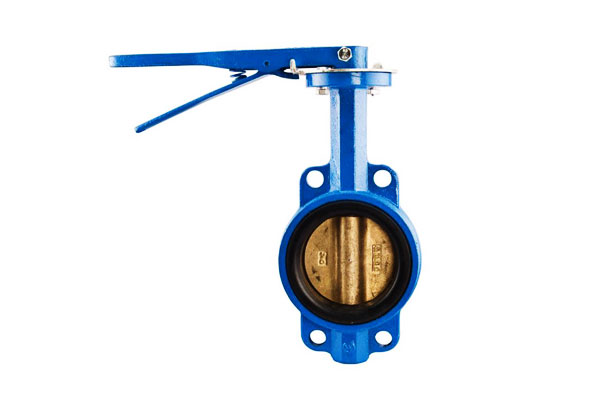

Wafer Papilio Valvulae

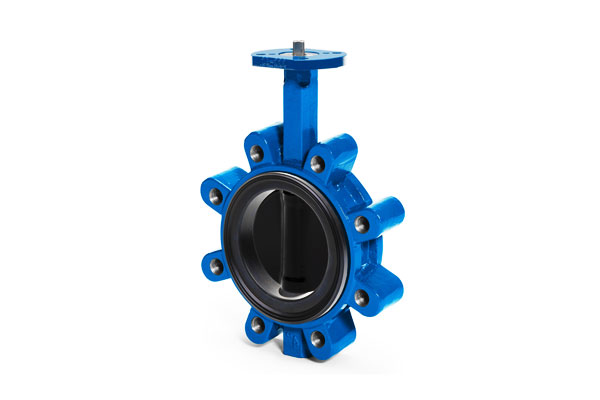

Lug Butterfly Valves
Flags papilio valvae

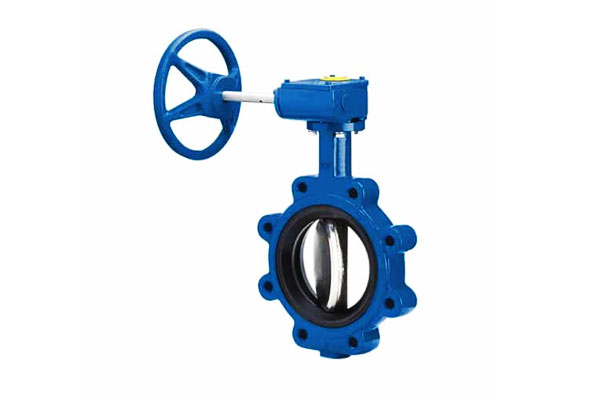

Resilient Seated Butterfly Valve

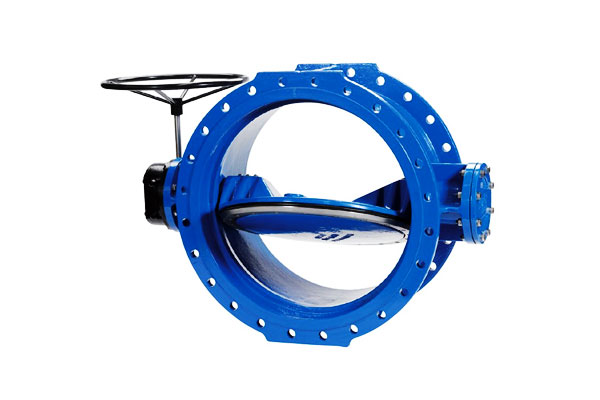

Double Offset Butterfly Valves

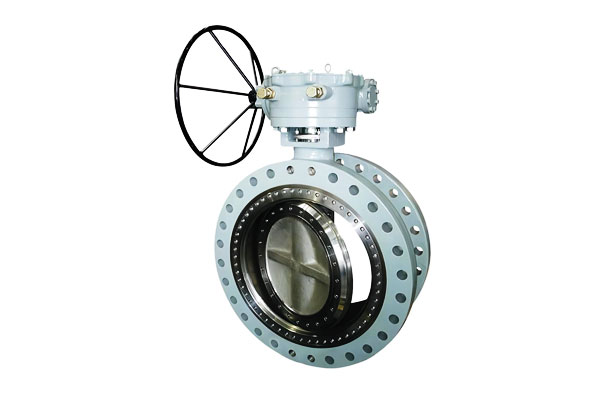

Triplex offset papfus valvae

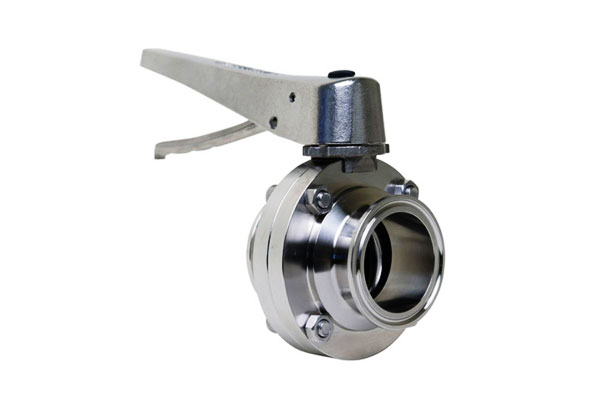

Hygienic Butterfly Valves

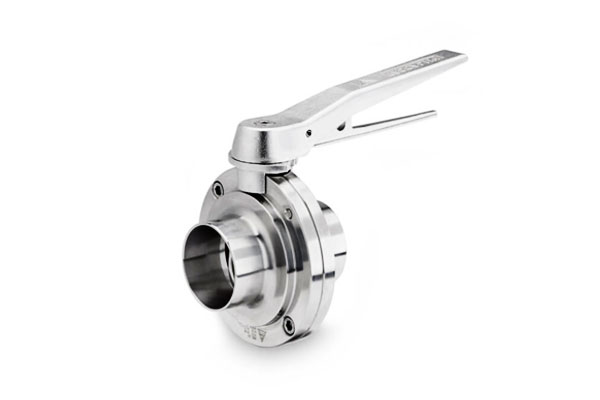

Butt Weld Butterfly Valves

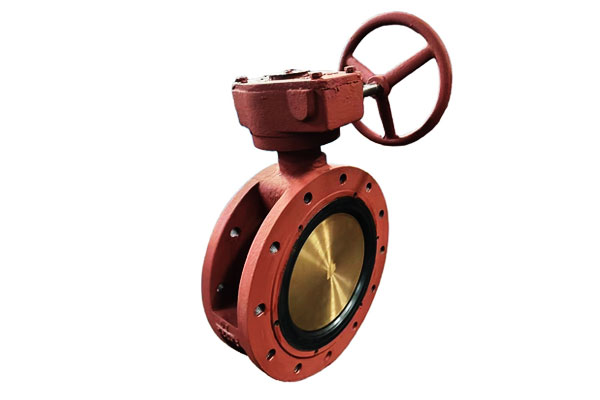

Marine Butterfly Valves

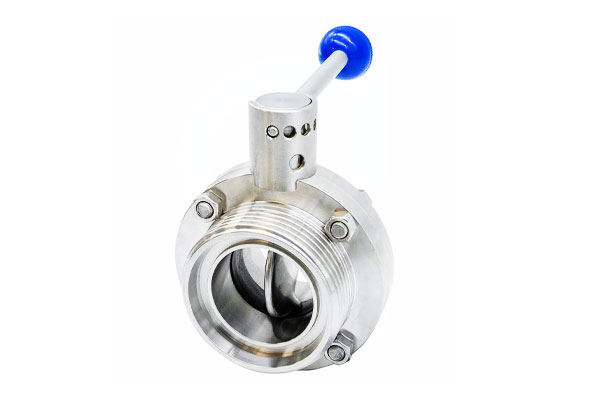

Stainless Steel Butterfly Valves
WCB Steel Butterfly Valves

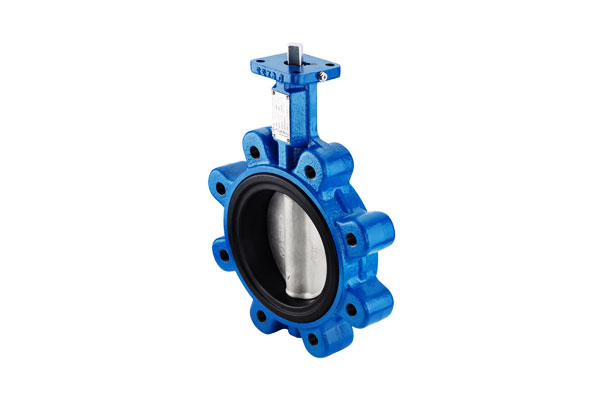

Ferrum ductile Butterfly Valvulae

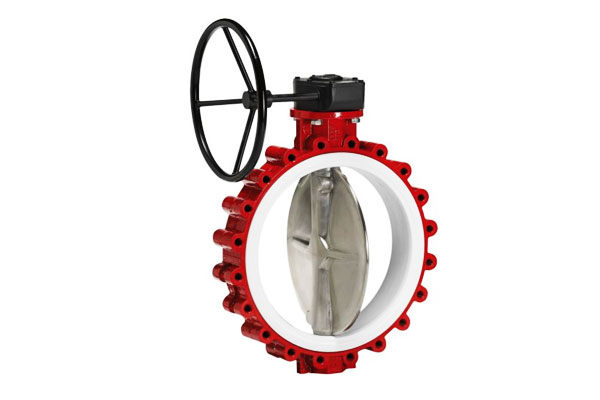

PTFE-lined butterfly valve

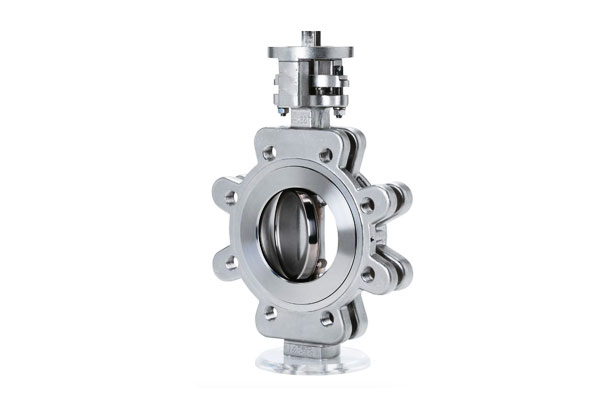

High Performance Butterfly Valves

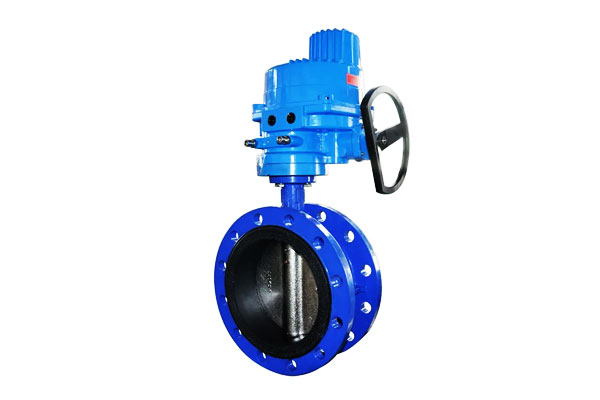

Electric Actuation Butterfly Valve
Comprehensive Butterfly Valve Specifications
| Genus | Specification Details |
|---|---|
| Magnitudo dolor | NPS 2 - 48 (Dn 50 - 1200) (custom-cast sizes up to DN 2000 available upon request) |
| Corpus Materials | Ferrum (GG25), Ferrum (GGG40/50), Carbon Steel (WCB), Immaculatam ferro (CF8/304, CF8M/316), Duplex Stainless ferro (CD3MN/2205), Super Duplex (CD3MWCuN/2507), Nickel Alloys (Monel, Inconel — for corrosive service) |
| Temperature range | -40°F to 600°F (-40°C to 315°C) depending on seat and body alloy |
| Stem Materials | Immaculatam ferro (SS410, SS416, SS630), Duplex SS, Monel K500, Inconveniens 718 |
| Discus Materials | Ferrum (coated with Nylon 11 aut epoxy), Aluminium aes, Immaculatam ferro (304 / 316 / 2205), Duplex / Super Duplex, Nickel Aluminum Bronze (NAB), CAMPESCO |
| Sedes Materials | EPDM, NBR/BUNA-N, FKM/Viton, Ptfe, RPTFE, Silicone, Hypalon (bonded or replaceable seat options) |
| Body Styles | Wafer, Lug, Double-Flanged, U-Type Flanged, Grooved-End, High-Performance Double-Offset, Triple-Offset Metal-Seated |
| Pressura Ratings | PN10 / PN16 / PN25 / PN40; ASME Classis 150 / 300; AWWA C504 Class 150B & 250B |
| Maximum Allowable Working Pressure (MAWP) | Vexillum: 150–250 psi (10–16 bar); High-performance: ad 740 Psi (51 sera) (depending on size/material) |
| Shutoff Rating | • Bidirectional bubble-tight (mollis sede) • Zero leakage (metal-seat TOV per API 609) |
| Flange Drilling Standards | ASME B16.1 Class 125, ASME B16.5 Class 150 & 300, In 1092 Pn 10/16/25/40, JIS 5K/10K/16K, Iso 7005 |
| Face-to-Face Standards | API 609 Category A (wafer/lug), API 609 Category B (high performance), In 558 Series 13/14/16, Iso 5752 |
| Testing Standards | API 598, MSS SP-61, Iso 5208, In 12266-1 & -2, AWWA C504 Hydrostatic Test |
| Testimonia (Libitum) | CE/PED, ATEX, SIL 2/3, Abs, DNV, LR, CCS, BV, WRAS, NSF-61, FDA contact materials |
| Actio Options | Manual Lever, Gear Operator, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator, Intelligent Control Actuators |
| Fluere Characteres | Equal percentage or linear (depends on disc geometry and application) |
| Typical applications | Aquam & LEPIDUS, Hvac, PRAEGRESSUS, desalinatio, eget processus, cibus & potum, oleum & Gas, marinus, generatio, MINING, pulpam & charta, ignis praesidium |
