Is comhpháirteanna riachtanacha iad snáitheanna sna tionscail déantúsaíochta agus tógála, ag fónamh mar an príomh -mhodh chun ceangal a dhéanamh, daingnithe, agus ina saothraítear rónta.
From pipes to mechanical systems, the choice of the right thread type can significantly impact the performance, marthanacht, and efficiency of the final product.
Sa treoir chuimsitheach seo, we will delve into the key differences between 14 common thread types,
including NPT, Pt, BSP, Agus níos mó, to help you better understand which is suitable for your application.

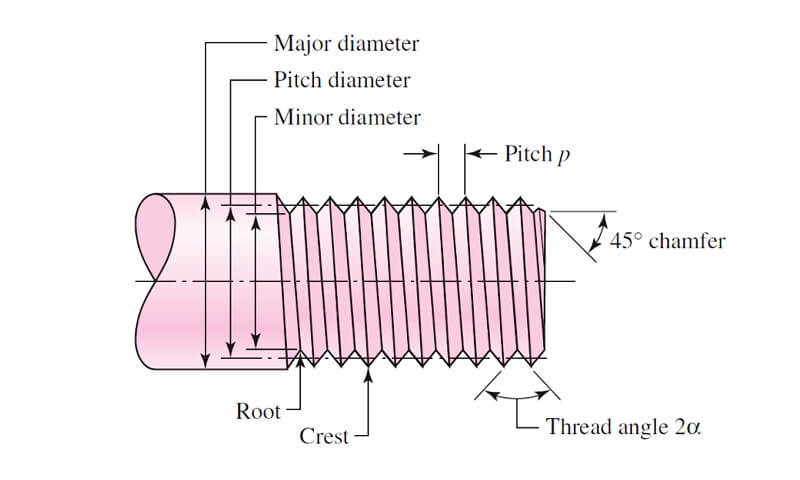

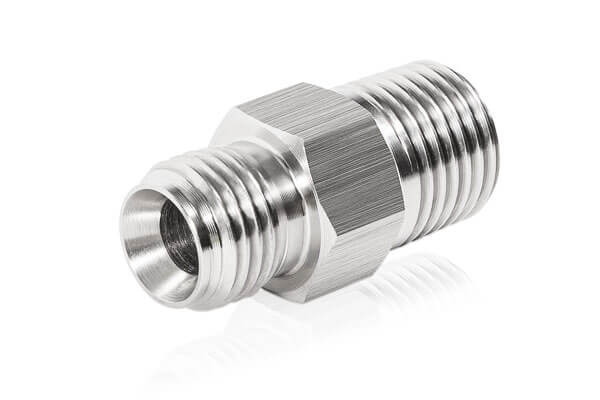

1. NPT (National Pipe Thread) – American Pipe Thread
NPT threads are one of the most widely used types of threaded connections in the United States. As part of the American National Standards,
NPT threads are tapered to allow for a self-sealing connection that tightens as the threads are screwed together.
This feature makes them especially effective for high-pressure systems where gas or fluid leakage is a critical concern.
Their self-sealing nature eliminates the need for additional sealing elements, such as gaskets or tape.
- Feidhmithe: NPT threads are commonly found in plumbing, ola agus gás, Córais hiodrálacha, and pneumatic applications where tight, leak-proof seals are necessary.
- Buntáistí: High sealing performance, widely used in high-pressure fluid and gas systems.
- Key Feature: Tapered threads allow for secure sealing under pressure, ensuring safety and reliability in fluid transportation systems.
2. Pt (Parallel Thread) – Parallel Pipe Thread
Unlike NPT, PT threads are parallel, which means the threads on both the male and female parts are the same size throughout.
These threads typically require additional sealing devices like O-rings or gaskets to achieve a leak-proof connection.
PT threads are commonly used in low-pressure applications where the requirements for a high-strength seal are not as demanding.
- Feidhmithe: PT threads are common in liquid or gas systems with lower pressure requirements, including water supply, general piping, and low-pressure pneumatic systems.
- Buntáistí: Easier to assemble with sealing components, offering flexibility in various systems.
- Key Feature: Parallel design and reliance on external sealing components for leak prevention.
3. G (BSPP) – British Standard Parallel Pipe Thread
G threads, or BSPP threads, follow the British Standard for parallel pipe threads. These threads also rely on external seals like O-rings for a secure connection.
G threads are popular in regions outside of the U.S., particularly in Europe, and are known for their ease of use and versatility in low-pressure systems.
- Feidhmithe: G threads are typically used in low to medium-pressure applications such as hydraulics, plumbing, and pneumatic systems.
- Buntáistí: Compatibility with a wide range of sealing components and efficiency for low-pressure applications.
- Key Feature: Common in industries requiring a reliable connection with external sealing.
4. ZG (BSPT) – British Standard Pipe Tapered Thread
ZG threads, also known as BSPT, are tapered threads commonly used in the same industries as NPT threads.
The tapered design provides a self-sealing connection, making BSPT threads an excellent choice for pressurized systems.
The design ensures the threads press against each other as the connection is tightened, effectively preventing leaks.
- Feidhmithe: BSPT threads are often used in fluid and gas transfer systems, including those in oil and gas, tógáil, agus innealra tromshaothair.
- Buntáistí: Self-sealing design, making them ideal for high-pressure connections.
- Key Feature: The tapered shape ensures a tight seal, eliminating the need for additional sealing elements.
5. RC (British Standard Pipe Tapered Thread)
RC threads are another variation of the British Standard tapered pipe thread. Like BSPT, RC threads offer self-sealing capabilities due to their tapered nature.
They are highly resistant to wear and are often used in industrial systems that require high-pressure sealing.
- Feidhmithe: Commonly found in industrial gas and fluid systems, particularly in the oil, gás, agus tionscail cheimiceacha.
- Buntáistí: High-pressure resistance and excellent sealing properties.
- Key Feature: Offers a high degree of leak protection due to its tapered design.
6. M – Metric Thread
M threads, part of the International System of Units (SI), are standardized threads used globally in manufacturing.
These threads are characterized by their metric size, with the outer diameter and pitch measured in millimeters.
Metric threads are used for general-purpose mechanical and structural applications where precision is necessary.
- Feidhmithe: M threads are widely used in machine tools, automotive parts, tógáil, and electrical systems.
- Buntáistí: Global standard, easy to work with, and available in various sizes for different applications.
- Key Feature: Precision design makes M threads suitable for a wide range of manufacturing needs.
7. BSPP (British Standard Pipe Parallel)
BSPP is another type of British standard parallel pipe thread. These threads are similar to PT threads and are often used for systems where external sealing is necessary.
BSPP threads are preferred when working with lower-pressure fluid systems, offering reliable and easy-to-assemble connections.
- Feidhmithe: Hydraulic systems, air compressors, and pneumatic equipment.
- Buntáistí: Requires O-rings or other sealing devices for leak prevention.
- Key Feature: Compatible with a wide range of sealing materials and suitable for low-pressure applications.
8. BSPT (British Standard Pipe Tapered)
BSPT threads, similar to BSPP, have a tapered design that makes them ideal for high-pressure applications.
The self-sealing characteristic of BSPT threads ensures that there is no need for additional gaskets, making them a preferred choice in industries where fluid or gas pressure is a concern.
- Feidhmithe: Plumbing, oil and gas pipelines, and chemical processing systems.
- Buntáistí: Self-sealing, reducing the need for additional sealing components.
- Key Feature: Excellent performance in high-pressure applications.
9. UNF (Unified Fine Thread) – Unified Fine Thread
UNF threads are a fine-thread version of the Unified Thread Standard (UTS), offering better shear strength and vibration resistance.
Their fine pitch ensures a stronger, more precise connection, making them ideal for high-stress applications.
- Feidhmithe: Aeraspás, gluaisteán, and precision engineering applications that require high strength and fine thread characteristics.
- Buntáistí: High tensile strength and durability under stress.
- Key Feature: Better suited for precise and high-strength mechanical connections.
10. UNC (Unified Coarse Thread) – Unified Coarse Thread
UNC threads are a more coarse version of the Unified Thread Standard, making them perfect for applications that involve larger components or heavy-duty usage.
These threads are typically used in situations where ease of assembly and disassembly is important.
- Feidhmithe: Used in heavy-duty machinery, automotive parts, and structural applications that require larger fasteners.
- Buntáistí: Strong resistance to vibration and easier assembly.
- Key Feature: Larger pitch size makes them ideal for components that need to withstand heavy loads.
11. Acme Thread – Trapezoidal Thread
Acme threads are designed for high-load applications, particularly those requiring linear motion and power transmission.
The trapezoidal profile ensures load-bearing capacity, making Acme threads ideal for lead screws and other motion systems.
- Feidhmithe: Linear actuators, mechanical presses, and machine tools.
- Buntáistí: High load-bearing capacity with minimal wear.
- Key Feature: Trapezoidal shape helps in smooth movement and load transfer.
12. Trapezoidal Thread (ISO Standard)
Trapezoidal threads are used for similar applications to Acme threads but follow the ISO standard for greater compatibility.
The trapezoidal profile allows for efficient power transfer and minimal wear, making it ideal for heavy-duty machinery.
- Feidhmithe: Used in high-load environments such as presses, machines, and actuators.
- Buntáistí: High efficiency and durability for long-lasting performance.
- Key Feature: Designed for durability in high-load mechanical applications.
13. NPTF (National Pipe Thread Fuel) – American Fuel Pipe Thread
NPTF is a variant of the NPT thread designed specifically for fuel systems, where an airtight, leak-free connection is essential.
Its tight tolerances and self-sealing ability make it suitable for high-pressure fuel lines in automotive, aeraspás, and industrial systems.
- Feidhmithe: Fuel lines, gluaisteán, and high-pressure systems.
- Buntáistí: Excellent sealing properties under high pressure.
- Key Feature: Self-sealing thread that ensures leak-free connections in fuel systems.
14. An duine (Japanese Industrial Standard) – Japanese Industrial Thread
JIS threads are the standard for threaded fasteners used in Japan, offering compatibility with various industrial applications.
These threads are engineered to meet specific requirements for mechanical strength, cruinneas, agus iontaofacht.
- Feidhmithe: Gluaisteán, electrical, and industrial applications in Japan.
- Buntáistí: High precision and consistency.
- Key Feature: The JIS standard ensures that these threads are universally accepted and compatible within Japan’s industrial sectors.
Deireadh
Choosing the right thread type is crucial for ensuring the strength, iontaofacht, and efficiency of mechanical connections.
Understanding the differences between thread types like NPT, BSP, M, and others will help you make informed decisions whether you’re working in plumbing, déantúsaíochta feithicleach, nó aeraspáis.
By considering factors like sealing requirements, pressure levels, agus comhoiriúnacht ábhair, you can optimize your designs and guarantee optimal system performance.
