Врсте ЦНЦ машина

Рачунарска нумеричка контрола (ЦНЦ) машине су револуционисале производну индустрију, пружајући неупоредиву прецизност, поновно постављање, и ефикасност. Understanding the various types of CNC machines and their functionalities is essential for choosing the right tool for a specific project or business need. This comprehensive guide will explore different types of CNC machines, their categories, and how to select the best type for your requirements.

What is a CNC Machine?

A CNC (Рачунарска нумеричка контрола) machine is a programmable device that automates the manufacturing process by controlling the movement of tools and parts using CAD (Computer-Assisted Design) and CAM (Computer-Assisted Manufacturing) software to convert design files into instructions that control the movement of the machine.

CNC machines can perform a variety of operations with high precision and repeatability, allowing for mass production and the manufacture of complex parts. CNC machines are widely used in automotive, ваздухопловство, електроника, медицински, and other industries.

Basic Elements of CNC Machine System

A CNC machine system typically comprises the following elements:

1. Контролор: The brain of the CNC machine that reads and interprets G-code (the machine language) to control the machine’s movements.
2. Drive System: Includes motors and amplifiers that execute the controller’s commands.
3. Machine Interface: Human Machine Interface (HMI) to input commands and monitor operations.
4. Алати за сечење: End mills, бушилице, стругови, and other tools used for cutting and shaping materials.
5. Feedback System: Provides real-time data on the machine’s performance for accurate positioning and error correction.

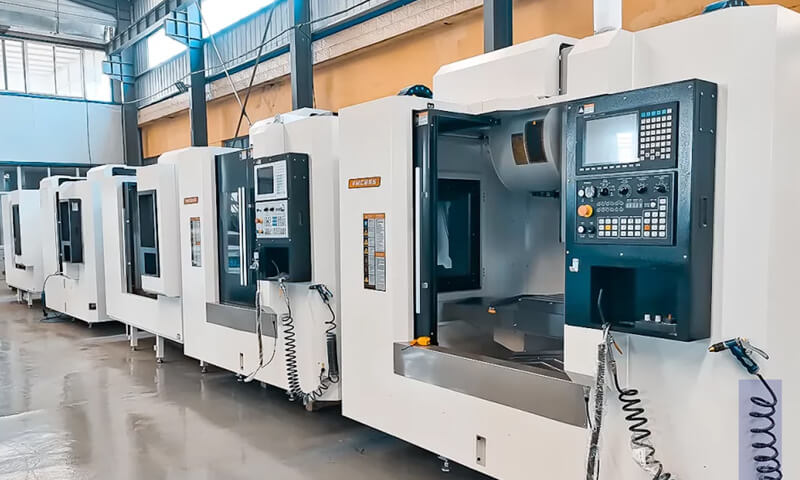

Different Types of CNC Machines

There are various types of CNC machines, each designed for specific tasks:

1. Mill CNC Machine:

• • Функција: Uses rotating cutting tools to remove material from a stationary workpiece, ideal for creating flat surfaces, рупе, and pockets.
  • Апликације: Suitable for creating complex shapes and intricate designs in a variety of materials.
  • Ограничење： The size it can machine depends on the enclosure size housing the machine and the highest distance the cutting tools can travel.

2. Turn CNC Machine:

• • Функција: Also known as CNC lathes, these machines rotate the workpiece while cutting tools shape it, perfect for cylindrical components like shafts, чашица, and bolts.
  • Апликације: Commonly used for turning operations on materials such as metals and plastics.
  • Ограничење： Due to the way this machine manufactures products, it is better to make symmetrical parts.

3. Grinding CNC Machine:

• • Функција: Utilizes an abrasive wheel to smooth and finish surfaces, commonly used in finishing operations for high precision and surface quality.
  • Апликације: Used for finishing operations and creating extremely fine tolerances.
  • Ограничење： Тхе CNC grinding machine removes materials from a workpiece at a very slow rate. This is why it finds use primarily as a finishing or smoothening machine.

4. Drilling CNC Machine:

• • Функција: Designed to create round holes using rotating drill bits; often combined with tapping to thread the holes.
  • Апликације: Commonly used for creating precise holes in various materials.
  • Ограничење： One major limitation of the machine is the dimension of the hole it can create. It is challenging to create holes that are deep or large enough without specialized drill bits.

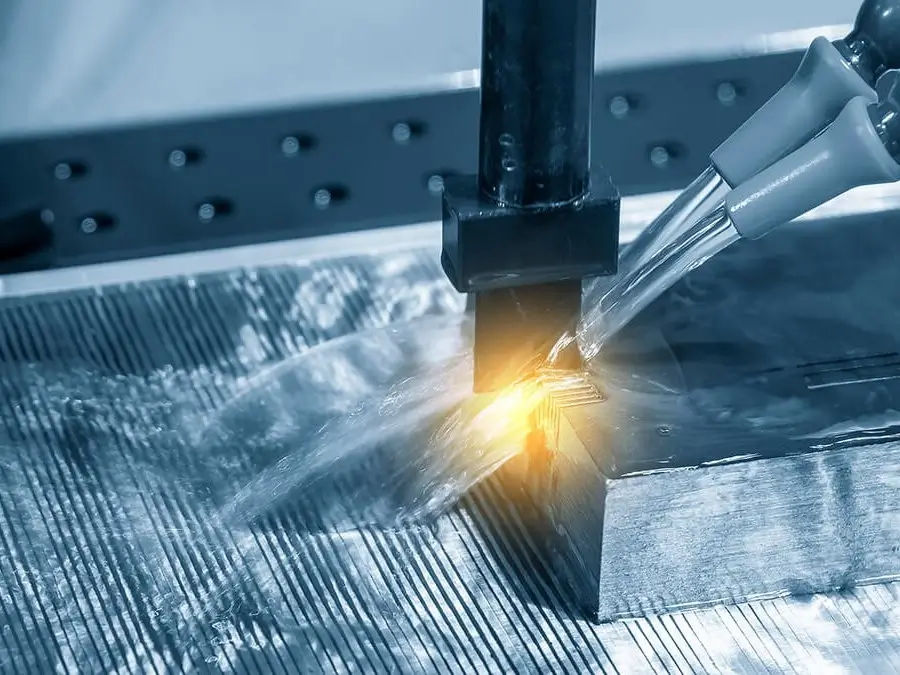

5. ЕДМ (Electric Discharge Machine):

• • Функција: Uses electrical discharges to erode material from a workpiece, allowing for the creation of complex shapes that are difficult to achieve with traditional cutting tools.It performs non-contact machining, enabling it to work with parts of any hardness.
  • Апликације: Suitable for machining hard materials and producing intricate features.
  • Ограничење： EDM is limited to conductive materials, making it unsuitable for non-conductive materials like ceramics, дрва, и пластика.

6. Plasma Cutting CNC Machine:

• • Функција: Cuts materials using a high-temperature plasma torch, suitable for electrically conductive materials like steel and aluminum.
  • Апликације: Ideal for cutting steel and other conductive materials.
  • Ограничење： These machines produce tremendous heat as they cut materials by melting them. This heat often affects the surface finish of the cut material, resulting in heat-affected zones. Another limitation is that this machine has a restrictive range of materials it can cut, as it only cuts through metals and other conductive alloys.

7. Waterjet Cutting CNC Machine:

• • Функција: Uses a high-pressure jet of water mixed with abrasives to cut materials without generating heat, perfect for cutting thick and heat-sensitive materials.
  • Апликације: Versatile cutting solution suitable for rubber, leather, fiberglass, штампане плоче, пена, папир, керамички, стакло, камен, and sheet metal.
  • Ограничење： One of the biggest downsides is the waterjet cutting speed is slower than other cutting alternatives. This slower speed is especially evident around the curved cuts and corners.

8. Laser Cutting CNC Machine:

• • Функција: Utilizes a focused laser beam to cut or engrave materials with high precision. The laser beam cuts through the materials regardless of their conductivity to create the desired product or shape.
  • Апликације: Commonly used for cutting metals, пластика, дрва, and fabrics.
  • Ограничење： One of the limitations of a laser-cutting CNC machine is the 2.75-inch maximum thickness of the material you can cut with it.

9. CNC Router Machine:

• • Функција: Often used for cutting wood, пластика, and softer materials, CNC routers have a high-speed rotating spindle for smooth finishes.
  • Апликације: Suitable for signage, cabinetry, and decorative work.
  • Ограничење： The overall operation of the CNC router machine can be quite noisy due to its different components.

10. Multi-Axis CNC Machine:

• • Функција: Multi-axis CNC machines can move in four or more directions, compared to a two or three-axis machine, multi-axis machining is more complex and produces more accurate parts. They offer better flexibility and range from 4-axis up to 12-axis configurations.
  • Апликације: Ideal for complex parts requiring machining from multiple angles.
  • Ограничење： These machines differ significantly from 2 and 3-axis types and often need skilled operators for optimal performance.

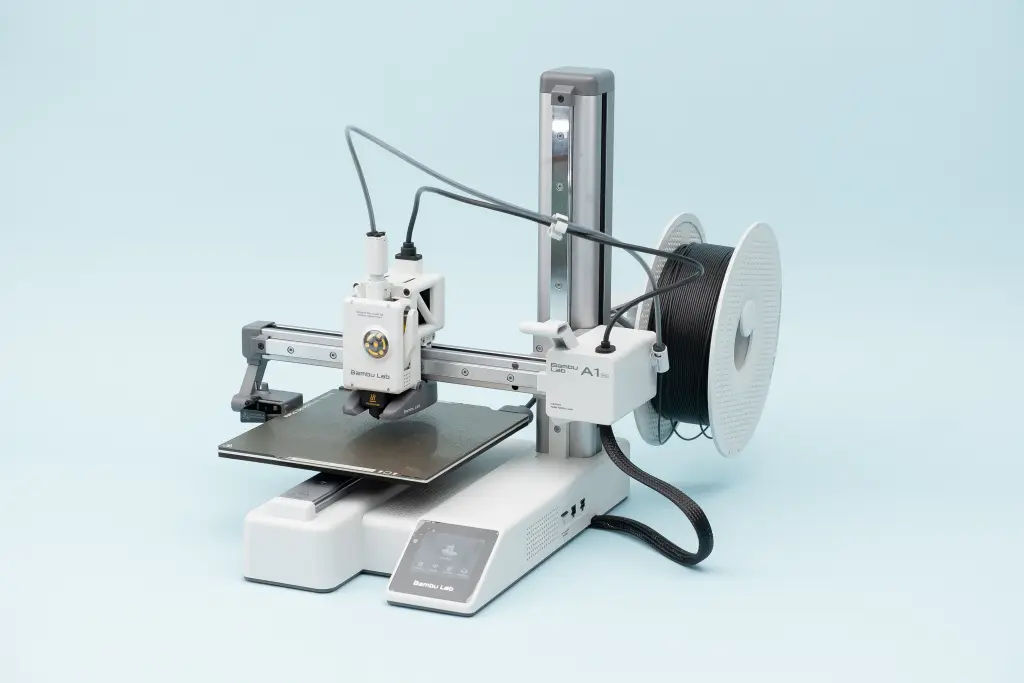

11. 3D Printer:

• • Функција: A type of CNC machine that builds parts layer by layer from a digital file, using materials such as plastics, resins, and metals.
  • Апликације: Widely used in prototyping, производња, and customized product creation.
  • Ограничење： The cost of procuring this CNC equipment and manufacturing components using this process are quite high. Такође, 3D printing speed is slow, especially when used for mass production processes.

12. CNC Automatic Tool Changer:

• • Функција: Also known as ATC, enhances productivity by allowing multiple tools to be used in a single setup without manual intervention.
  • Апликације: Enhances productivity and reduces downtime in production environments.
  • Ограничење： High failure rate, long tool change times, tool magazine capacity is small.

Types of CNC Machines by Number of Coordinate Axes

CNC machines can be categorized based on the number of coordinate axes they operate:

2-Axis CNC Machines:

2-axis CNC machines are the simplest type, operating along the X (horizontal) and Y (vertical) секире. They are typically used for straight cuts, drilling holes, or processing a single surface without repositioning the workpiece.

3-Axis CNC Machines:

The most common CNC machines are 3-axis models, which add a Z-axis for depth to the standard X and Y axes. They work on stationary workpieces and can handle tasks in 2.5 dimensions, making them versatile for basic machining.

4-Axis CNC Machines:

These machines include an A-axis, which allows rotation along the X-axis, in addition to the X, И, и З оси. This feature is ideal for tasks like cutouts and arc cutting.

5-Axis CNC Machines:

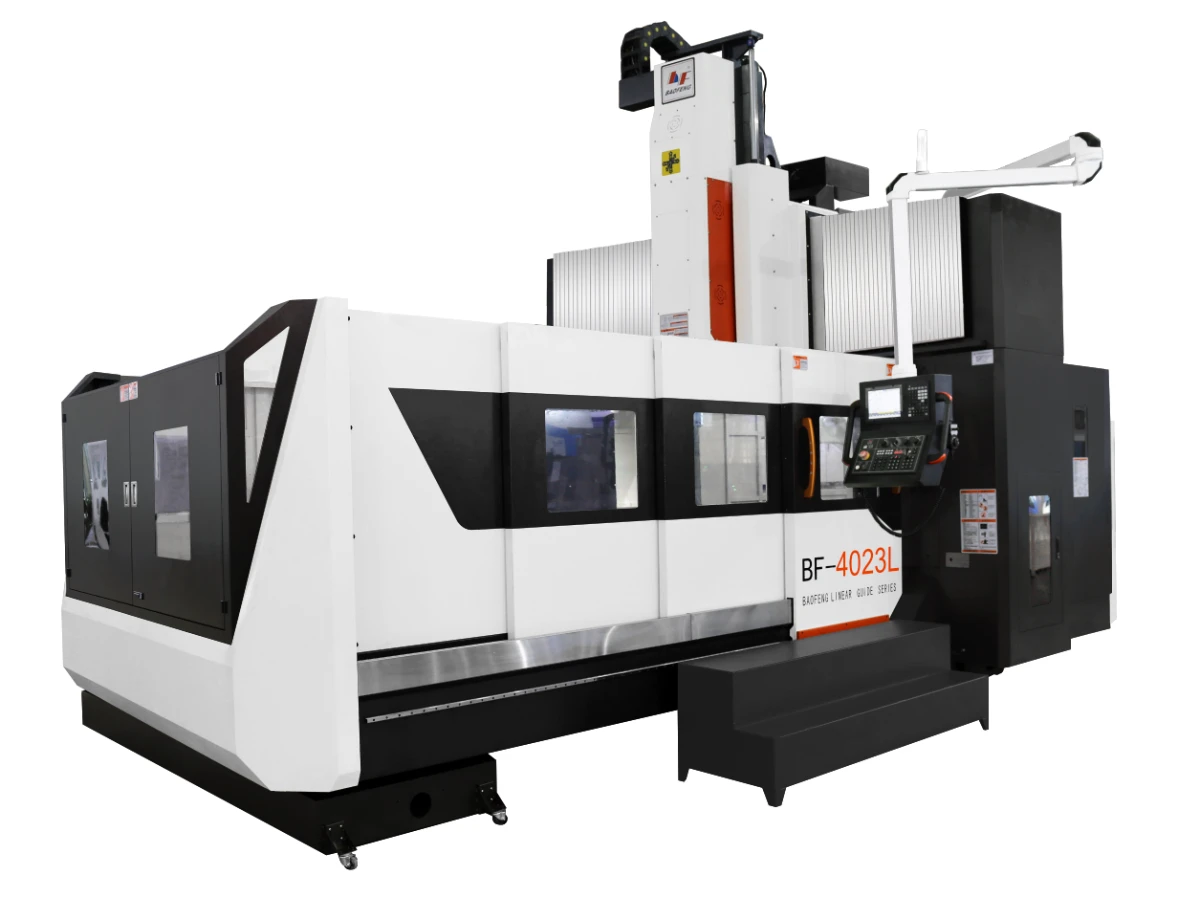

5-axis CNC machines introduce a C-axis, allowing the cutting tool to pivot. This setup enables the machining of five surfaces simultaneously, producing highly precise parts ideal for medical equipment.

7-Axis CNC Machines:

7-axis machines have three axes for workpiece rotation, three for tool movement, and an additional E-axis for arm rotation. Their ability to create complex parts makes them suitable for aerospace, медицински, and military components.

9-Axis CNC Machines:

Combining a 5-axis milling machine and a 4-axis lathe, 9-axis CNC machines handle both internal and external part features efficiently. They are commonly used for manufacturing dental implants, медицински алати, and advanced aerospace components.

12-Axis CNC Machines:

These machines feature two cutting heads, each capable of moving along the X, И, З, А, Б, and C axes. This configuration allows for faster production with exceptional precision, ideal for high-volume, intricate machining tasks.

Types of CNC Machines Divided by Servo System

CNC machines can also be classified based on their servo systems:

Open Loop Control System: Basic control system with no feedback mechanism; lower cost but less precision.

Semi-Closed Loop Control System: Uses some feedback to correct errors; a middle-ground option for cost and precision.

Closed-Loop Control System: Advanced system with full feedback, offering high precision and minimal error.

Types of CNC Machines According to Moving Trail

Different CNC machines are designed to follow specific paths:

Point Control: Controls the start and end points of the toolpath, focusing on positioning rather than the path taken.

Linear Control: Ensures linear movement between points, commonly used for drilling and tapping operations.

Contouring Control: Controls the toolpath continuously, enabling the creation of curved or contoured surfaces.

How to Select the Best CNC Machine Type?

When choosing the right CNC machine for your business, several factors must be taken into account. The ideal machine depends on the nature of your business, the type of products you manufacture, and the scale of production. Here are key considerations for selecting a CNC machine:

Business Type

The type of business you run will significantly narrow down your choices. For a small CNC shop, a few CNC routers might suffice. И обрнуто, a large-scale manufacturing operation may require larger, more versatile multi-functional CNC machines.

Availability of Spare Parts

ЦНЦ машине, like any other equipment, can wear out or break down. It’s important to choose a brand or model that your technicians can easily repair, with spare parts readily available. The availability of parts directly impacts downtime and how quickly production can resume.

Product Requirements

The specific CNC machine you need largely depends on the complexity of the products you manufacture. Simple products may only require a CNC lathe or a 3-axis milling machine. Међутим, for more complex items, a 5-axis CNC machine that can perform multiple operations in one setup would be more efficient. Specialized machines, such as Swiss lathes, are ideal for producing high volumes of small, intricate cylindrical parts.

Power Requirements

CNC machines generally consume a lot of power, often requiring three-phase power to operate efficiently. It’s crucial to ensure your facility can provide the necessary power for any new CNC equipment. You should also assess current power usage to avoid surpassing your power supply capacity when adding new machines.

Material to be Machined

The material you plan to machine is a critical factor. Machines must be sturdy enough to precisely mill hard alloys. С друге стране, softer materials like mild steel may only need precision machines capable of maintaining the required tolerances.

By considering these factors, you can select a CNC machine that best fits your production needs and business requirements.
