Spot Weld vs. Tack Weld: Schlëssel Differenzen

1. Aféierung

Schweißen ass e wesentleche Prozess an der Metallfabrizatioun, déi haltbar an zouverlässeg Verbindungen an enger breeder Palette vun Industrien ubidden, ganz agemaach Automotiv, Aerospace, Elektronik, Baulibatiounen, an schwéier Maschinnen.

Ënnert de ville Schweißtechniken verfügbar, Punktschweißen und Klebschweißen Stand eraus wéinst hiren ënnerschiddlechen Uwendungen a Virdeeler.

Wéi och ëmmer, dës zwou Methoden déngen verschidden Zwecker, mécht et entscheedend hir fundamental Prinzipien ze verstoen, Stäerkten, Ufrongnisseuren, a bescht-benotzen Szenarie.

Dësen Artikel gëtt eng am-Déift, berufflech, an daten-ugedriwwen Verglach vun Punkt Schweess vs. schweißen.

D'Diskussioun wäert hir fundamental Prinzipien, schaffen Mechanismen, Uwendungen, Effekter op d'Materialeigenschaften, Virdeeler, an Aschränkungen, wéi och zukünfteg technologesch Fortschrëtter entdecken.

2. Fundamental Prinzipien vu Punktschweißen a Tackschweißen

Versteesdemech de Kär Prinzipien hannert Punkt Schweess vs. schweißen ass entscheedend fir hir Rollen an der Metallfabrikatioun ze schätzen.

Dës zwou Schweißtechniken ënnerscheeden sech wesentlech an hirer Mechanismen, Hëtzt Generatioun Methoden, an Uwendungen, mécht se gëeegent fir verschidde industriell Zwecker.

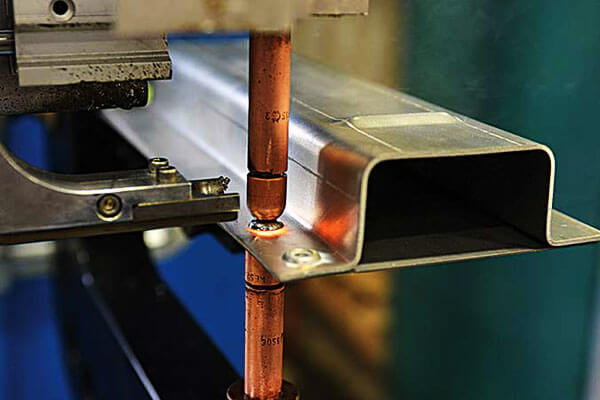

2.1 Wat ass Spot Welding?

Punktschweißen ass eng Resistenz Schweess Technik dat benotzt lokaliséiert Hëtzt an Drock fir zwee oder méi Metallplacke ze fusionéieren.

De Prozess baséiert op elektresch Resistenzheizung, wou en elektresche Stroum duerch d'Werkstécker fléisst, Hëtzt generéieren wéinst Ohms Gesetz (V = IR).

Dës Hëtzt schmëlzt d'Metall op de Kontaktpunkten, formeg e feste Schweessnugget beim Ofkillen.

Aarbechtsmechanismus

De Punkt Schweess Prozess besteet aus e puer Schlëssel Schrëtt:

1. Elektroden Positionéierung:

• • Kupferlegierungselektroden klemmen d'Metallplacke zesummen, e gudden elektresche Kontakt assuréieren.

1. Aktuell Applikatioun:

• • A K) héich-Intensitéit elektresche Stroum geet duerch d'Elektroden, generéieren Hëtzt op der Interface wéinst elektresch Resistenz.
  • The Hëtzt ass konzentréiert um Gelenk well d'Metallplacke méi héich Resistenz hunn wéi d'Elektroden.

1. Metal Fusioun:

• • Déi lokaliséiert Regioun schmëlzt séier, bilden a kleng geschmollte Weld Nugget.
  • Déi ugewandt Elektrodenkraaft verhënnert exzessiv Metallexpansioun an hält de richtege Kontakt.

1. Cillkéieren & Stolfifikatioun:

• • Den elektresche Stroum stoppt, an den Drock bleift während dem geschmollte Metal verstäerkt, eng haltbar geschweißte Gelenk bilden.

1. Elektroden Fräisetzung:

• • D'Elektroden zréckzéien, an de geschweißte Sektioun ass elo permanent gebonnen.

Schlëssel Charakteristiken vun Spot Schweess

• Lokaliséiert Heizung: Hëtzt gëtt generéiert nëmmen op der Weld Interface, allgemeng thermesch Verzerrung reduzéieren.
• Kee Füllmaterial: De Schweessprozess erfuerdert keng zousätzlech Fillermetall, maachen et kascht effektiv.
• Automatiséiert an High-Speed: De ganze Schweesszyklus kann tëscht huelen 0.1 zu 0.5 Sekonnen, maachen Punkt Schweess ideal fir Mass Produktioun Industrien.
• Bescht fir dënn Blieder: Am effektivsten fir Metal thicknesses tëscht 0.5 mm an 3 mm, sou wéi niddereg-Kuelestoff Stol, Edelstol, Aluminium, an galvaniséierte Metaller.

Faktoren déi Punktschweißqualitéit beaflossen

Verschidde Faktoren bestëmmen d'Qualitéit an d'Kraaft vun engem Punktschweiß:

• Aktuell Intensitéit: Méi héije Stroum erhéicht d'Wärmegeneratioun awer kann och zu exzessive Materialverbrennung féieren.
• Elektroden Kraaft: Richteg Drock verhënnert exzessiv spatzen iwwerdeems eng staark Schweess garantéiert.
• Weld Zäit: Kuerz Zäit reduzéieren Hëtzt-betraff Zonen, wärend méi Zäiten d'Fusioun verbesseren, awer d'Verzerrungsrisiken erhéijen.
• Material Konduktivitéit: High-Conductivity Metaller (Z.B., Aluminium, Kupfer) méi héije Stroum erfuerderen fir effektiv Schweißen z'erreechen.

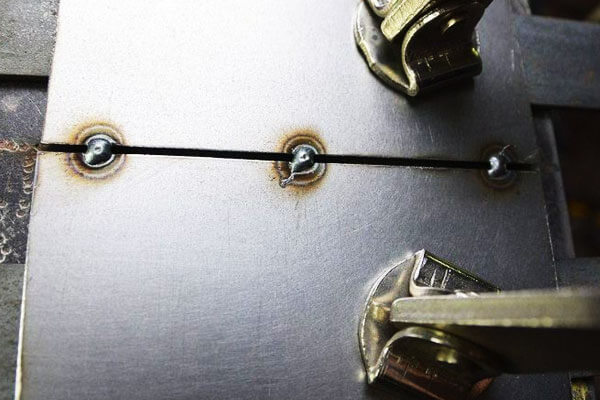

2.2 Wat ass Tack Welding?

Tack Schweess ass eng temporär Schweess Technik benotzt halen Metal workpieces am Plaz virun der Finale Schweess Prozess.

Et déngt als virleefeg Schrëtt fir déi richteg Ausrichtung ze garantéieren, Verzerrung verhënneren, an erhalen Stabilitéit uechter voll Schweess Operatiounen.

Géigesaz zu Punkt Schweess, Tack Welds sinn net entwéckelt fir laangfristeg strukturell Lasten ze droen mä amplaz déngen als guidéieren Kader fir Finale Welds.

Aarbechtsmechanismus

De Schweißprozess ëmfaasst déi folgend Schrëtt:

1. Metal Virbereedung:

• • Flächen ginn gebotzt fir Rost ze entfernen, UeleP, oder Kontaminanten déi d'Schweißqualitéit beaflosse kënnen.

1. Tack Weld Applikatioun:

• • Kleng Schweißen (typesch 5-15 mm Längt) ginn laanscht d'Gelenk mat virbestëmmten Intervalle geluecht.
  • Welds kënnen opgedeelt ginn 25-50 mm auserneen, ofhängeg vum Material an erfuerderlech Ausrichtung Präzisioun.

1. Iwwerpréift fir Ausriichtung:

• • D'Tack-Schweißen garantéieren datt d'Werkstécker bleiwen stabil a korrekt positionéiert virum final Schweess.

1. Finale Schweess Prozess:

• • De komplette Schweißprozess (Ech et, Tig, oder Stéck Schweess) folgt, d'Werkstécker permanent fusionéieren.

Schlëssel Charakteristiken vun Tack Schweess

• Ausriichtung & Stabilitéit: Verhënnert Materialbewegung a garantéiert korrekt Upassung virum voll Schweess.
• Schafft mat Multiple Schweißmethoden: Dëst kann duerchgefouert ginn benotzt Ech et, Tig, Stéck Schweess, oder souguer Punktschweißen.
• Wesentlech fir grouss Skala Fabrikatioun: Am extensiv benotzt Schëffsbau, Aerospace, strukturell Stol Konstruktioun, an schwéier Maschinnen.
• Kann geläscht ginn wann néideg: A Fäll wou eng temporär Obligatioun néideg ass, D'Schweißschweiße kënne virum endgültege Schweißen ofgeschnidden ginn.

Aarte vu Schweißen

1. Intermitterende Tack Welds:

• • Klengen, spatzen welds ginn a reegelméissegen Ofstänn laanscht de Gelenk gesat.
  • Gëeegent fir dënn Blieder a delikat Strukturen.

1. Kontinuéierlech Tack Welds:

• • A K) Serie vun iwwerlappende Schweess, bitt méi staark strukturell Integritéit.
  • Oft benotzt fir décke Materialien an héich-Stress Uwendungen.

Faktoren déi d'Schweißqualitéit beaflossen

• Arc Längt & Hëtzt Input: Exzessiv Hëtzt kann zu Verbrenne féieren, während net genuch Hëtzt schwaach Schweess verursaache kann.
• Elektroden Positionéierung: Richteg Fackelwénkel a Reesvitessen beaflossen d'Schweißstäerkt.
• Material-Säit & Décker: Décke Materialien erfuerderen méi intensiv Schweißen to prevent shifting.

3. Prozess an Techniken Verglach

The effectiveness of Punktschweißen und Klebschweißen depends largely on their specific Produktéierungsprodukter, Techniken, and key parameters.

While both are used in metal fabrication, hat Methicht Methoden, Material, and applications differ significantly.

This section provides an in-depth comparison of their welding techniques, critical process factors, and material suitability.

3.1 Punkt Schweess Prozess

Elektroden Typen a Material Considératiounen

Spot welding relies on copper alloy electrodes, which ensure high electrical and thermal conductivity while minimizing heat loss.

The choice of electrode material significantly impacts weld quality and durability.

• Common Electrode Materials:

• • Klasse 1 (Copper-Cadmium or Copper-Nickel) – Used for aluminum and other highly conductive metals.
  • Klasse 2 (Copper-Chromium-Zirconium) – Best suited for niddereg-Kuelestoff Stol an allgemeng Zweck Uwendungen.
  • Klasse 3 (Copper-Tungsten or Copper-Molybdenum) – Used in high-strength applications where wear resistance is needed.

Elektroden Kraaft a Stroum Kontroll

• Elektroden Kraaft: Ensures that the metal sheets remain in proper contact to avoid excessive heat loss or material expulsion.
• Aktuell Intensitéit: Typesch rangéiert tëscht 5,000 an an 15,000 amperes, jee no Material.
• Weld Zäit: Measured in Millisekonnen (typically 0.1–0.5 seconds) to achieve optimal fusion without overheating.

Prozess Schrëtt

1. Spannung – Electrodes apply konsequent Kraaft to the metal sheets.
2. Current Flow – High current generates localized heat at the interface.
3. Metal Fusioun – The heat melts the material, bilden a weld nugget.
4. Cooling Phase – The weld solidifies under pressure, garantéieren a strong metallurgical bond.
5. Elektroden Fräisetzung – The welded section is now permanently joined.

Gemeinsam Material fir Punkt Schweess

• Low-Carbon Steel – Most commonly welded due to low electrical resistance and good weldability.
• Edelstol – Requires higher currents due to high resistivity.
• Aluminium Ladionen – More challenging due to high thermal and electrical conductivity; requires precise control of current and weld time.
• Galvanized and Coated Metals – Additional considerations for Zinkbeschichtungen that may create contamination issues.

Prozess Geschwindegkeet an Effizienz

Spot welding is known for its high-speed operation, with individual welds taking less than half a second.

This efficiency makes it ideal for automated production lines in the automotive, Elektronik, and manufacturing industries.

3.2 Tack Schweess Prozess

Aarte vu Schweißen

Tack Schweess ass eng versatile technique that can be adapted to different Material, joint configurations, a strukturell Ufuerderunge.

The choice of tack welding type depends on the intended application and welding method.

Intermitterende Tack Welds

• Klengen, spatzen welds are applied along the joint.
• Ideal fir thin sheets and light structures.
• Gewinnt an benotzt sheet metal fabrication and precision welding applications.

Kontinuéierlech Tack Welds

• A K) series of closely spaced or overlapping welds that create a semi-permanent bond.
• Offeren better structural stability virum final Schweess.
• Gewinnt an benotzt heavy fabrication, Schëffsbau, and pressure vessel assembly.

Parameteren déi Tack Weld Qualitéit beaflossen

Several key parameters influence the effectiveness of tack welds:

• Arc Längt:

• • Too long: Increases oxidation and reduces penetration.
  • Too short: Leads to excessive spatter and potential weld defects.

• Hëtzt Input & Weld Size:

• • Excessive heat may cause distortion or burn-through, besonnesch an dënnen Materialien.
  • Insufficient heat results in weak tack welds that may break before final welding.

• Elektroden Positionéierung & Welding Angle:

• • A proper torch angle (typically 10-15° from vertical) ensures deep penetration and strong adhesion.

Gemeinsam Material fir Tack Welding

• Stum (Karkbelaéierung & Edelstahl): Am extensiv benotzt Baulibatiounen, Aerospace, a Schëffsbau.
• Aluminium & Nickel Alloys: Erfuer ginn specialized welding techniques (TIG/MECH) to prevent cracking.
• Titanium & Spezialitéit Alloys: Gewinnt an benotzt high-performance industries, erfuerderlech precise heat control.

Prozess Geschwindegkeet a Präzisioun

Tack welding is slower than spot welding, but it ensures alignment stability and precision, wat ass crucial for large-scale structural fabrication.

It is often used as a virleefeg Schrëtt virum final Schweess.

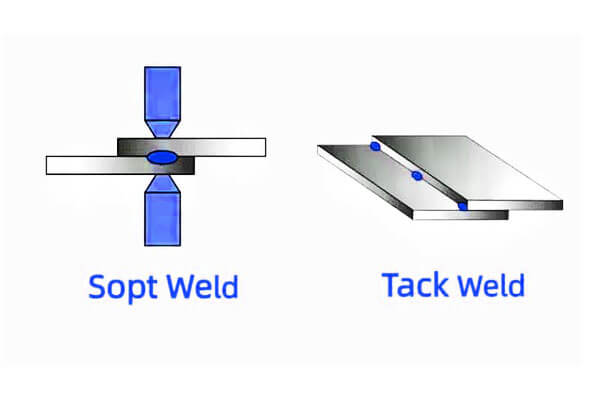

4. Schlëssel Differenzen: Spot Weld vs. Tack Weld

Aspekt	Punkt Schweess	Tack Welding
Primär Zweck	Permanent joining of metal sheets	Temporary positioning before final welding
Joining Mechanism	Heat and pressure via electrical resistance	Fusion using arc welding (Ech et, Tig, Stiech)
Schéier Stäerkt	Héichheet	Mëttelméisseg
Peel Strength	Wéineg bannen	Mëttelméisseg
Load-Bearing Capacity	Strong under shear stress but weak in tension and peel loads	Provides initial holding strength, final strength depends on full weld
Hëtzt Generatioun	Lokaliséiert, rapid heating (resistance-based)	Broader heat-affected zone (arc-based)
Effekt op Material	May cause localized brittleness	Helps control distortion before full welding
Hëtzt-betraffe Zone (Seum)	Klengen, concentrated	Méi grouss, gradual heat spread
Risk of Material Warping	Higher for thin metals	Lächcher, helps prevent warping
Elektresch Kämpfung	Low resistance at joints, ideal for battery and electronics	Not optimized for electrical applications
Prozess Vitesse	Extremely fast (milliseconds per weld)	Méi lues, requires multiple tack points
Suitability for Automation	Highly automated, used in robotic assembly lines	Mostly manual, some semi-automated processes
Production Efficiency	Bescht fir héich-Vitesse Fabrikatioun	Bescht fir large-scale structural assembly
Labor Cost	Lächcher (due to automation)	Méi héicher (due to manual welding)
Equipment Cost	Héichheet (specialized resistance welding machines)	Lächcher (conventional arc welding equipment)
Filler Material	Net néideg	Oft néideg (welding wire, Schutzgas)
Ëffentlech Zeffen	Automotiv, Aerospace, Elektronik, battery manufacturing	Shipbuilding, Baulibatiounen, heavy machinery fabrication
Overall Cost-Effectiveness	Bescht fir mass production of thin metals	Bescht fir low-volume or structural applications

5. Effekter vu Spot Welding vs. Tack Schweess op Material Properties

Welding techniques play a pivotal role in altering the physical and mechanical properties of materials.

The impact varies significantly between spot welding and tack welding,

with each process influencing material characteristics in different ways due to differences in heat input, Killmëttel, and joint formation.

Strukturell a mechanesch Ännerungen

Punkt Schweess:

• Spot welding applies intense heat in a localized area, which causes the metal to melt and fuse together.
• The rapid cooling results in the formation of a heat-affected zone (Seum) around the weld, where the grain structure changes.
• Consequences:

• • Brécheg: This heat can lead to embrittlement, making the material more prone to cracking under stress, especially in metals with lower ductility.
  • Staang: While spot welding provides strong shear strength, the joint is weak when subjected to peel forces.
    Careful design is needed to prevent joint failure in such scenarios.

Tack Welding:

• Tack welding involves smaller, less intense heat inputs compared to spot welding, minimizing the change in the material’s grain structure.
• Consequences:

• • Reduzéiert Veraarbechtung: Tack welding minimizes the risk of warping during final welding by securing pieces temporarily.
  • Weaker Joints: The temporary nature of tack welds means they don’t provide full strength, and they can cause stress concentrations if not followed by a proper full weld.

Impakt op Corrosion Resistenz

Punkt Schweess:

• The localized heat from spot welding often disrupts any protective coatings, such as galvanized layers or anodized finishes, leading to exposure to raw metal.
• Corrosion Risks:

• • Galvanesch Korrosioun: Spot welds can become sites for galvanic corrosion, especially when different materials with varying electrochemical properties are joined.
  • Mitigéieren: Post-weld treatments like passivation or additional coatings are often required to protect the joint from corrosion.

Tack Welding:

• Tack welding generally causes less disruption to protective coatings compared to spot welding.
• Corrosion Risks:

• • Uewerfläch Kontaminatioun: The process still requires proper cleaning to prevent the introduction of oxidation or flux residue,
    which could lead to corrosion if not cleaned before the final weld.
  • Mitigéieren: Surface preparation and post-weld cleaning are critical to ensure long-term corrosion resistance.

Elektresch Konduktivitéit an Wärmetransfer

Punkt Schweess:

• Spot welding is particularly effective in applications where electrical conductivity and heat transfer are essential.
• Elektresch Kämpfung:

• • The process creates a low-resistance joint, making it ideal for electrical components, such as battery tabs and circuit boards.

• Thermal Efficiency:

• • The localized heat in spot welding ensures efficient thermal conduction, benefiting applications that require heat resistance or rapid cooling.

Tack Welding:

• Tack welding is not primarily used to improve electrical conductivity but serves more as a temporary alignment method.
• Electrical Impact:

• • While tack welds stabilize the workpieces, they can introduce resistance points if not performed correctly, which could affect the electrical performance in sensitive applications.

• Heat Transfer:

• • The heat input is generally too low in tack welding to influence the material’s thermal properties significantly.

6. Virdeeler an Nodeeler vu Spot Welding vs. Tack Welding

Souwuel Punkt Schweess an an schweißen are essential processes in various industrial applications, particularly in the automotive, Aerospace, and manufacturing sectors.

Each method offers distinct advantages and limitations based on the specific requirements of the task at hand.

6.1 Virdeeler vun Spot Welding

Schnell an effizient

• Spot welding is an incredibly fast process, often taking only a few milliseconds to join materials.
  Dëst mécht et ideal fir Héich-Volumen, such as in automotive manufacturing.
• The speed reduces overall production costs and increases throughput.

Kee Fillermaterial erfuerderlech

• Spot welding does not require any filler material, which lowers the cost of materials and eliminates the need for additional components like rods or wires.
• This feature makes spot welding highly kascht effektiv, especially in mass-production settings.

Automatioun-frëndlech

• Spot welding is easily automated, which improves consistency and reduces labor costs.
  Automated spot welding systems are commonly used in industries where high precision and repeatability are required, such as in car manufacturing.

Minimal Post-Weld Veraarbechtung

• Am meeschte Fäll, spot welding requires minimal post-weld processing, as the joints are often clean and don’t require additional material, reducing the overall work needed after the welding process.

6.2 Nodeeler vun Spot Schweess

Limitéiert op dënn Materialien

• Spot welding is most effective on thin sheets of metal, typesch rangéiert vun 0.5 zu 4 mm in thickness.
  Fir décke Materialien, the heat and pressure might not be sufficient to create a strong weld.
• This limits its application in industries dealing with méi décke Materialien.

Ufälleg fir Schwäch an Peel Lasten

• While spot welding provides strong shear strength, et ass weak under peel forces.
  In some structural applications where the joint may be subject to bending or peeling forces, spot-welded joints may fail.
• The joint is not ideal for droen applications where the joint will be subjected to high tensile or peel stress.

Risiko vun Weld Mängel

• Spot welding is highly sensitive to electrode alignment, Material Eegeschafte, an Prozess Parameteren.
  If any aspect of the process is off, it can result in weld defects, wéi Porositéit, ënnerzegoen, or incomplete fusion.
• Electrode wear can also affect weld quality over time.

6.3 Virdeeler vun Tack Welding

Bitt Stabilitéit an Ausriichtung

• Tack Schweess serves as a temporary measure to secure workpieces in place before full welding.
  It prevents warping and distortion, ensuring that materials remain properly aligned during subsequent welding operations.
• This is especially important in applications that require precise alignment, sou wéi an schwéier Maschinnen oder structural fabrication.

Villsäiteg fir verschidde Material Dicken

• Tack welding can be performed on a wide range of materials, ganz agemaach thicker metals that spot welding cannot handle effectively.
• It works with metals like Stum, Aluminium, an an Nickel Alloys and can be used in various industries, iwwuerten construction to aerospace.

Verhënnert Hëtzt Schued

• Since tack welds use a smaller heat input than full welding, they minimize heat-affected zones (Seum).
  This helps prevent material degradation, particularly in heat-sensitive alloys and reduces the chances of distortion or cracking.

Einfach ze bewerben

• The process is straightforward and can be done using Ech et, Tig, oder Stéck Schweess, making it adaptable to different production environments.

6.4 Nodeeler vun Tack Welding

Zäit-opwänneg

• Tack welding requires multiple steps: each tack weld must be positioned, webdeakled, and cooled. This makes it a slower process compared to spot welding.
• For large-scale projects, this can increase overall production times and result in méi héich Aarbechtskäschte compared to more efficient welding methods.

Verlaangt spéider voll Schweess

• While tack welds hold pieces together temporarily, they do not offer the strength necessary for a permanent joint. Duerfir, a final, full welding process must follow tack welding.
• This means additional work is required, which can add to both the cost and time needed for completion.

Risiko vu Kontaminatioun

• The tack weld process can introduce contamination if surfaces are not properly cleaned before welding.
  UeleP, Knascht, or oxidation can lead to poor joint integrity and may require additional post-weld cleaning to ensure strong final welds.
• Tack welds also have a higher risk of defects like porosity or undercut if not executed correctly.

7. Industriell Uwendunge vu Spot Welding vs. Tack Welding

• Automotiv and Aerospace: Spot welding is used for mass production of thin parts, while tack welding ensures proper alignment before final welding.
• Structural Fabrication & Schwéier Maschinnen: Spot welding is ideal for thin materials, while tack welding is essential for thicker, more complex assemblies.
• Elektronik and Battery Manufacturing: Spot welding is used for electrical connections in battery tabs and circuit boards, while tack welding holds components in place.
• Construction and Shipbuilding: Tack welding plays a larger role, especially for steel frameworks and large metal assemblies, while spot welding is limited to lighter materials.

8. Conclusioun

Souwuel Punkt Schweess vs. schweißen are vital to metal fabrication, but they serve different purposes.

Spot welding excels in héich-Vitesse, automated production, whereas tack welding is essential for precision alignment and structural integrity.

With ongoing advancements in Autorisatioun, Ai, and sustainable welding technologies, both methods will continue evolving to meet modern industry demands.
