Lift check valve is a critical component in fluid handling systems, designed to prevent reverse flow and protect equipment from damage caused by backpressure.

Unlike swing check valves, which rely on a hinged disc, lift check valves use a piston or disc that “lifts” off its seat to allow forward flow and seals tightly under reverse pressure.

This design offers unique advantages in high-pressure, high-velocity applications, making them indispensable in industries ranging from oil and gas to pharmaceuticals.

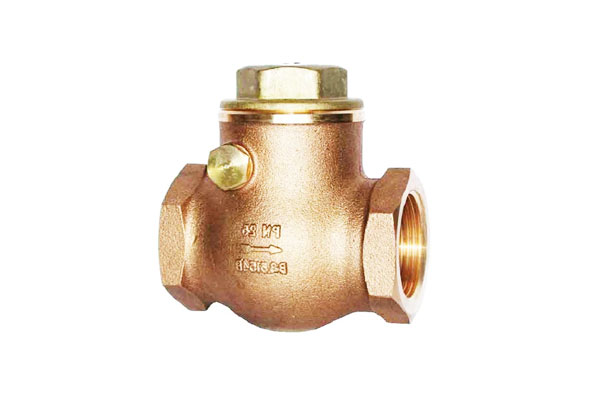

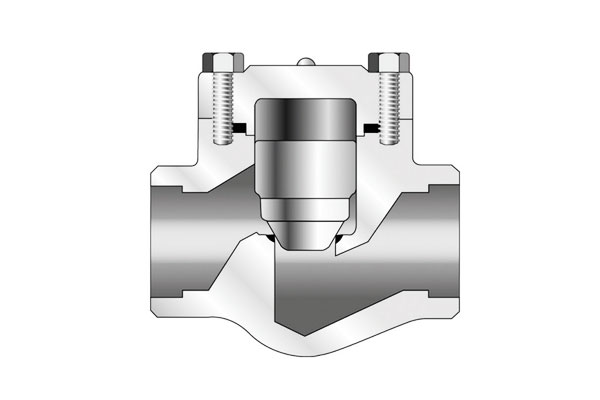

1. What Is a Lift Check Valve?

A lift Клапанды тексеріңіз is a type of non-return valve that controls fluid flow in one direction only.

Its core components include a valve body, a disc (or piston) that fits snugly against a seat, and a guiding mechanism (such as a stem or cage) that ensures the disc moves vertically.

When fluid flows forward, pressure pushes the disc upward, creating an opening for flow. When flow stops or reverses, the disc falls back onto the seat—assisted by gravity or spring force—forming a tight seal to block reverse flow.

The defining feature of lift check valves is their linear motion, which minimizes turbulence and pressure drop compared to swing check valves.

This design makes them suitable for systems with high flow velocities (дейін 30 m/s) and pressures (exceeding 10,000 пси), where precise flow control is critical.

2. Principle of Operation

Lift check valves operate on the principle of pressure differential, with motion governed by fluid dynamics and mechanical forces:

• Pressure-Differential Lift: Forward flow creates pressure upstream of the disc, overcoming closing forces (gravity, spring tension) to lift the disc off its seat.
  The disc rises to a maximum height (typically 10–20% of the pipe diameter), allowing flow with minimal restriction.
• Spring-Assisted Variants: In vertical installations or low-pressure systems, a spring biases the disc against the seat, ensuring closure even when gravity is insufficient.
  Spring force is calibrated to achieve a specific “cracking pressure” (0.5–5 psi), the minimum upstream pressure required to open the valve.
• Pilot-Operated Variants: For large-diameter valves (>12 дюйм) or systems with fluctuating pressures, pilot mechanisms use upstream pressure to assist disc lift, reducing cracking pressure variability by 40% compared to spring-loaded designs.

3. Types of Lift Check Valves

Lift check valves are classified based on installation orientation, internal guiding mechanism, closure assistance, material construction, and application-specific adaptations.

While the core operating principle—axial movement of a disc or plug—remains the same, design variations optimize performance for different service conditions.

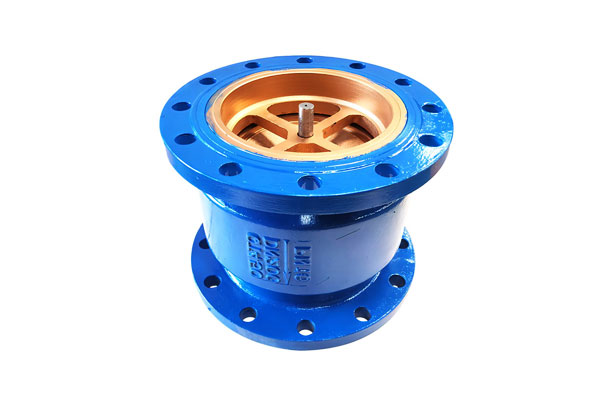

Vertical Lift Check Valves

• Жобалау:
  Features a vertical flow path with a disc or plug guided in a cylindrical body bore. The seat is positioned horizontally, and gravity assists in closure.
  The guide stem ensures precise axial motion, minimizing seat wear. Flow enters from below, lifting the disc directly upward.



• Installation: Requires upward (тік) flow for reliable operation.
• Артықшылықтары:

• • Қарапайым, gravity-assisted closure.
  • Minimal moving parts reduce maintenance needs.

• Шектеулер: Orientation-specific; not suitable for horizontal piping unless modified.
• Typical Uses: Сорғының разряд сызықтары, vertical risers, cooling water systems.

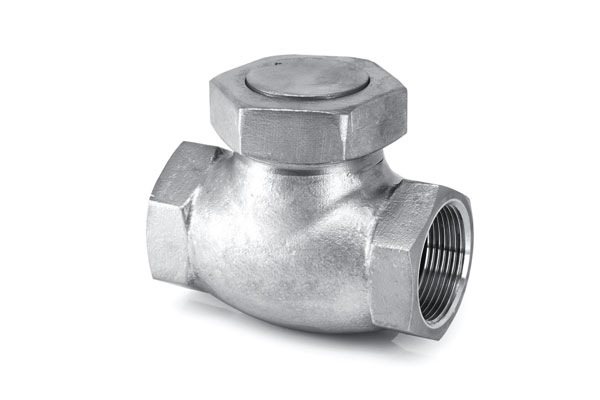

Horizontal Lift Check Valves

• Жобалау:
  Configured for horizontal piping runs, with an inclined seat and a guided disc that moves at an angle (typically 45°) to the horizontal axis.
  This design uses a spring or gravity component to return the disc to its seat. Internal flow passages are contoured to reduce turbulence and pressure drop.



• Closure Assistance: Often fitted with a spring to overcome the lack of gravity assistance.
• Артықшылықтары:

• • Flexible installation in horizontal pipelines.
  • Can be used in vertical downflow service with adequate spring preload.

• Typical Uses: Industrial process piping, майлау & gas transmission, gas compressor outlets.

Piston-Type Lift Check Valves

• Жобалау:
  Uses a piston-shaped closure member moving inside a precision-machined guide sleeve or cylinder.
  The close tolerance between piston and sleeve dampens motion, reducing chatter and vibration. Flow passes through ports around the piston when lifted.



• Артықшылықтары:

• • Reduced disc flutter in fluctuating flow conditions.
  • Improved sealing in high-pressure applications due to guided alignment.

• Шектеулер: Slightly higher pressure drop due to reduced flow area around the piston.
• Typical Uses: High-pressure steam systems, power plants, petrochemical lines.

Spring-Assisted Lift Check Valves

• Жобалау:
  Incorporates a calibrated spring positioned behind the disc or piston to push it toward the seat.
  The spring preload determines the cracking pressure and ensures positive closure regardless of installation orientation.
  Designs often use non-corroding spring alloys such as Inconel X-750 for harsh environments.
• Артықшылықтары:

• • Reliable closure in any orientation.
  • Reduces water hammer by closing before reverse flow accelerates.

• Typical Uses: Pump protection in variable-speed drives, chemical processing plants, offshore platforms.

Silent (No-Slam) Lift Check Valves

• Жобалау:
  Combines a lightweight disc with a strong, short-travel spring to achieve closure in milliseconds. The axial, streamlined flow path minimizes turbulence. Disc travel is limited to reduce kinetic energy and prevent slamming into the seating.
• Орындау: Eliminates the slamming noise common with swing checks in high-velocity systems.
• Артықшылықтары:

• • Quiet operation.
  • Excellent surge control in high-rise building water systems and long pipelines.

• Typical Uses: HVAC chilled water loops, potable water mains, fire suppression systems.

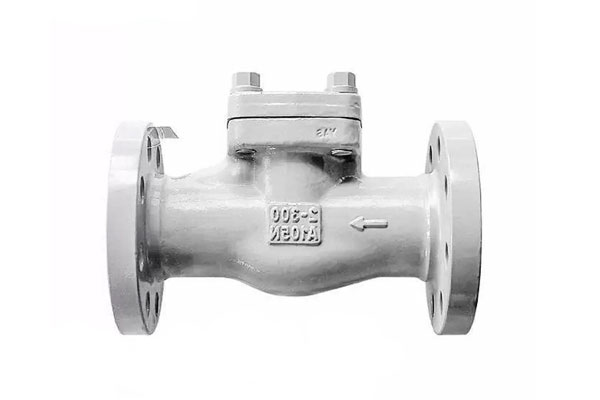

Forged Steel Lift Check Valves

• Жобалау:
  Manufactured from forged steel billets, these valves feature a compact, high-strength body suitable for high-pressure, high-temperature, and critical services.
  Common end connections include socket weld, бұрандалы (NPT), and butt weld. Internal components often have hardfacing for wear resistance.
  Forged construction improves grain structure and fatigue life compared to cast bodies.
• Артықшылықтары:

• • Exceptional strength-to-weight ratio.
  • Better resistance to thermal shock and cyclic pressure loading.
  • Compact form factor for space-limited installations.

• Typical Uses: Power generation (boiler feed lines), refinery high-pressure loops, superheated steam lines, petrochemical high-integrity systems.

Application-Specific Variants

• Subsea Lift Check Valves:

• • Ерекше өзгешеліктері: ROV-operable overrides, metal-to-metal seats, hyperbaric tested.
  • Ratings: Up to 15,000 пси, water depth to 4,500 м.

• Piggable Lift Check Valves:

• • Ерекше өзгешеліктері: Full-bore design, smooth internal contour to allow pig passage.

• Corrosion-Resistant Variants:

• • Материалдар: Super duplex stainless, Inconel® for sour service or chloride-laden environments.

Common Size & Rating Ranges:

4. Typical Components, Материалдар, Жабындар, and Construction

Таңдау материалдар, Беттік емдеу, and construction techniques directly impacts a lift check valve’s performance, service life, and compliance with industry standards.

Body Materials

The body is the primary pressure-containing component, and its metallurgy must satisfy strength, Коррозияға төзімділік, and toughness requirements.

Trim Materials (Диск, Орын, Сабақ, Guide)

Жиіту refers to all wetted internal parts other than the body/bonnet. Materials are selected for тозуға төзімділік, Коррозияға төзімділік, and compatibility with process media.

• Hardfaced Stainless Steel (13Кр + Жұлдыз®) — Excellent wear and galling resistance.
• 17-4 PH Stainless Steel — High strength, Жақсы коррозияға төзімділік; often used for discs.
• Жұқпалы® 718 / 625 — Exceptional sour service performance; high fatigue resistance.
• Tungsten Carbide-Coated Components — Extreme abrasion resistance for slurry service.

Seat Materials

• Металл орындықтары — Stellite® 6, tungsten carbide; suited for high-temperature, high-velocity, or erosive service.
• Жұмсақ орындықтар — PTFE, reinforced PTFE, Іліппе-бет; provide bubble-tight shutoff (API Class VI), but temperature-limited to approx. –50 °C to +250 ° °.
• Elastomer Seats — NBR, EPDM, Viton®; good for water and mild chemicals, but limited temperature range and chemical compatibility.

Springs (Ерікті)

Springs are critical in spring-assisted lift check valves.

• Материалдар: Inconel X-750, 17-7 PH stainless steel, Hastelloy C-276.
• Key Requirements: High fatigue strength, Коррозияға төзімділік, stable modulus over temperature.

Жабындар & Беттік емдеу

Coatings extend service life by reducing corrosion, erosion, and galling.

Material Selection Considerations

• Corrosive Media: Prefer duplex, супер дуплекс, or nickel alloys; consider HVOF or weld overlay.
• High Temperature (>400 ° °): Use low alloy steels or Cr-Mo steels with Stellite seating.
• Erosive Service: Specify hardfacing (tungsten carbide or Stellite) for disc and seat.
• Low-Temperature Service (<–46 °C): Ensure impact-tested materials per ASME B31.3 and ASTM A352 for carbon steels.
• Sour Service (H₂s): Comply with NACE MR0175 / Исо 15156 for material hardness and composition.

5. Performance Characteristics of Lift Check Valves

• Қысым төмен: Typically 1–3 psi per inch of valve size at nominal flow, 50% lower than swing check valves. A 2-inch valve has a pressure drop of 2 psi at 50 gpm.
• Жауап беру уақыты: Spring-loaded valves close in <0.1 секунд, limiting reverse flow volume and water hammer.
• Leakage: Metal-seated valves: <0.1% of nominal flow; soft-seated: <0.001% (Ansi класы VI).
• Төзімділік: 100,000+ cycles in clean service; 10,000+ cycles in abrasive environments (with Stellite trim).

Typical Performance Characteristics

6. Advantages and Limitations

Артықшылықтары of Lift Check Valve

• Tight Shutoff: Superior to swing check valves, with leakage rates 10–100× lower, critical for preventing product loss or contamination.
• High-Pressure Performance: Operates reliably at up to 25,000 пси, exceeding the capabilities of most other check valve types.
• Low Pressure Drop: Streamlined design reduces energy consumption by 5–10% in high-flow systems compared to swing check valves.
• Resistance to Wear: Piston and cage designs minimize contact between moving parts, extending service life in abrasive fluids.

Шектеулер of Lift Check Valve

• Higher Cost: 20–50% more expensive than swing check valves due to precision machining requirements.
• Sensitivity to Installation: Must be mounted horizontally (for gravity-driven designs) or with proper spring selection (vertical lines) to avoid premature wear.
• Limited Size Range: Typically available up to 12 inches in diameter; larger sizes (>12 дюйм) are costly and less common.

7. Applications of Lift Check Valves

Lift check valves are employed across multiple industries wherever unidirectional flow protection is required.

Their suitability stems from positive sealing, guided closure, and adaptability to various pressures, температуралар, and media conditions.

8. Common Failure Modes & Troubleshooting

Even with proper selection and installation, lift check valves can experience operational or mechanical failures due to process conditions, material limitations, or maintenance issues.

Understanding these failure modes enables faster diagnosis, Минималды тоқтау уақыты, and extended service life.

9. Testing, Certification & Стандарттар

Testing and certification of lift check valves ensure that they meet design specifications, safety requirements, and regulatory compliance before installation in service.

• Апи 598 — Valve inspection/testing.
• Asme b16.34 — Pressure–temperature ratings.
• Исо 5208 — Pressure test of metallic valves.
• API 6D / 6DSS — Pipeline and subsea valve requirements.
• PED 2014/68/EU — Pressure equipment compliance.

10. Comparison with Other Non-Return Valves

Lift check valves are one of several Қайтарылмайтын (қарау) клапан designs, each with advantages and limitations depending on flow characteristics, installation constraints, and maintenance requirements.

Table — Comparative Overview of Common Check Valve Types

Негізгі бақылаулар:

• Lift Check Valves excel in Жоғары қысымды, high-seal-integrity applications and services with variable flow where spring assistance is beneficial.
• Swing Check Valves are economical for large-diameter, low-pressure-drop services but prone to water hammer.
• Tilting Disc designs offer a balance between flow efficiency and reduced slam, often used in power plants.
• Dual Plate valves are lightweight and suitable for space-limited pipeline retrofits.
• Ball Check Valves are simple and maintenance-light, good for slurry or viscous fluids but with less precise sealing.

11. Advanced topics & future trends

• Жер үсті техникасы & hardfacing — improved alloys and thermal spray coatings extend seat life.
• Қоспа өндірісі — potential for complex internal flows and customized trim geometries.
• CFD & Ақиа — used to refine flow paths, reduce erosion hotspots and predict dynamic behavior.
• Smart sensors — position, vibration and leak detection integrated for predictive maintenance.

12. Қорытынды

Lift check клапан is engineered for precision, delivering unrivaled performance in critical systems where reverse flow poses risks.

Their vertical motion design, material versatility, and tight shutoff make them essential in oil and gas, Электр қуатын өндіру, және фармацевтикалық өндірістер.

While higher initial costs than swing check valves, their durability and efficiency provide long-term value.

As materials and smart technologies advance, lift check valves will continue to evolve, meeting the demands of increasingly extreme and automated fluid handling systems.

Осы: Талап етілетін қосымшалар үшін жоғары дәлдікті клапанды шешу

Осы дәлдік клапаны құю қызметтерінің мамандандырылған провайдері болып табылады, Сенімділікке қажет салаларға арналған жоғары өнімді компоненттерді жеткізу, Қысымның тұтастығы, және өлшемді дәлдік.

Шикі құю өнімдерінен толық өңделген клапан және жиналыстар, Осы Жаһандық стандарттарға сәйкес келетін түпкі шешімдерді ұсынады.

Біздің клапанның құю сараптамасы кіреді:

Инвестициялық құю Клапандар үшін & Жиіту

Жоғалған балауызды кастинг технологиясын пайдалану кешенді ішкі геометриялар мен күрделі төзімді клапан компоненттерін ерекше беттік әрлеуі бар.

Құмның құюы & Қабықшаны құю

Орташа және үлкен клапан денелеріне өте ыңғайлы, фланецтер, және Bonnets-in тұрмыстық өндірістік қосымшалар үшін үнемді шешім ұсынады, Соның ішінде май & Газ және электр қуатын өндіру.

Клапанға арналған дәл өңдеу & Мөрді мінсіздігі

CNC орындықтарын өңдеу, Жіптер, және герметикалық беттер барлық құятын бөліктің өлшемді және тығыздау талаптарына сәйкес келеді.

Сыни қолдануға арналған материалдық ауқым

Тот баспайтын болаттардан (CF8 / CF8M / CF3 / CF3M), жез, Ішкі үтік, дуплексті және жоғары қорытпалар үшін, Осы Жабдықтар коррозияға негізделген клапан құймалары, Жоғары қысымды, немесе жоғары температуралы орта.

Өзгертпелі көбелек клапандарын қажет ете ме, Тексеру клапандары, Глобус клапандары, қақпа клапандары, немесе өнеркәсіптік клапан құймаларының жоғары көлемді өндірісі, Бұл сіздің сенімді серіктесіңіз дәлдік үшін, төзімділік, және сапа кепілдігі.

ЖҚС

What is the difference between a lift check valve and a swing check valve?

Lift check valves use vertical disc motion for tight shutoff and low pressure drop, ideal for high-pressure systems.

Swing check valves have a hinged disc, offering higher flow capacity but poorer shutoff and increased water hammer risk.

Can lift check valves be used in vertical pipelines?

Иә, but spring-loaded designs are required to ensure the disc closes properly against gravity. Gravity-driven lift check valves must be mounted horizontally.

What is the maximum temperature a lift check valve can handle?

Forged steel valves with Inconel trim withstand temperatures up to 650°C, suitable for high-pressure steam service.

How often should lift check valves be maintained?

In clean service (E.Г., water), annual inspections are sufficient. In abrasive or corrosive service, inspect every 3–6 months.

What is “cracking pressure” and why is it important?

Cracking pressure is the minimum forward pressure needed to open the valve. It ensures the valve only opens when intended, preventing premature wear from low-flow pulsations. Typical values range from 0.5 қарай 5 пси.
