Die casting is a precision manufacturing process used to create intricate metal parts with high accuracy and excellent surface finish.
This method plays a crucial role in industries such as automotive, zrakoplovstvo, i elektronike.

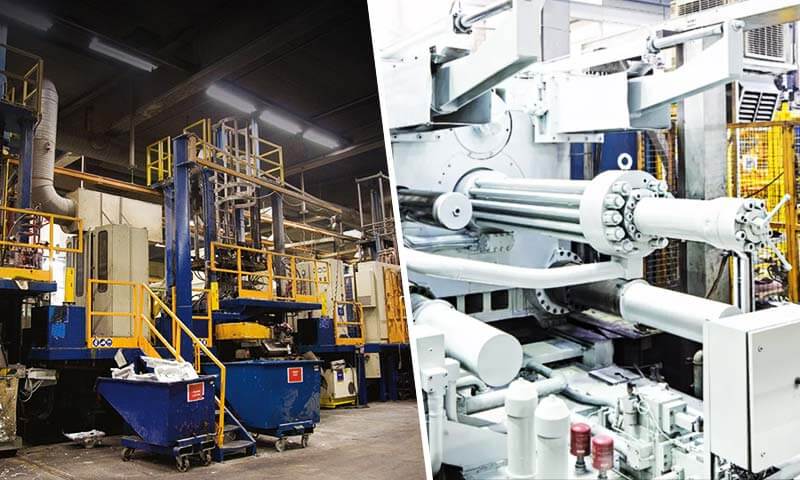

Two of the most commonly used die-casting techniques are Low-Pressure Die Casting (LPDC) and High-Pressure Die Casting (HPDC).
Both methods offer unique advantages, and the choice between them depends on the specific requirements of the parts being produced.
In this blog post, we will delve into the differences between Low-Pressure vs High-Pressure Die Casting, explore the factors that influence their performance,
and help you make an informed decision about which method is best suited for your manufacturing needs.
1. What is Die Casting?
Kasting is a manufacturing process where molten metal is injected into a steel mold under high pressure to create precise and complex shapes.
The metal cools and solidifies quickly within the mold, resulting in strong parts, Dimenzionalno točan, and ready for use without significant post-processing.
Die casting is essential for producing high-performance components used across many industries, such as automotive, zrakoplovstvo, potrošačka elektronika, and industrial machinery.
The die-casting process can be broadly divided into several types, including Low-Pressure Die Casting (LPDC) and High-Pressure Die Casting (HPDC).
Each method uses different pressure levels and injection techniques, making them suited to different types of parts and production volumes.
Understanding these differences is crucial for manufacturers looking to optimize production efficiency, smanjiti troškove, and maintain high-quality standards.

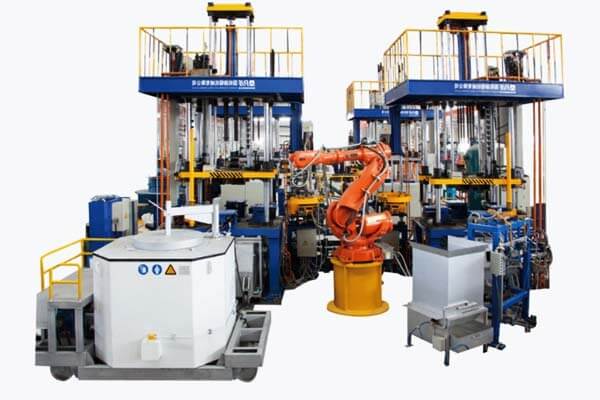

2. Understanding Low-Pressure Die Casting (LPDC)
Definicija: What is LPDC?
Lijevanje malog tlaka (LPDC) is a process in which molten metal is injected into a mold under low pressure, obično okolo 1 do 2 barovi.
Unlike HPDC, LPDC uses air or inert gases to push the metal into the mold, which results in slower filling speeds and more controlled material flow.
Pregled procesa:
The LPDC process begins with the molten metal being placed into a furnace, where it is heated to the required temperature.
A low-pressure source is then used to inject the metal into the mold cavity, allowing it to fill the mold gradually.
This controlled injection method leads to more uniform material flow, reducing the likelihood of defects such as voids and air pockets.
LPDC is particularly beneficial for larger, thicker parts where dimensional accuracy is essential.
Advantages of Low-Pressure Die Casting (LPDC):
- Improved Material Flow: The lower pressure in LPDC allows for a more controlled and uniform flow of molten metal into the mold.
This improves the ability to cast intricate and complex shapes, especially those with thin sections or deep cavities, without creating defects such as air pockets or voids. - Minimal Porosity: LPDC typically produces castings with lower porosity than other casting methods, which increases the mechanical strength and reliability of the final product.
This is particularly important for parts subjected to high stress or fatigue. - Better Surface Finish: The slower, controlled injection of molten metal ensures that the casting fills the mold uniformly, resulting in a smooth surface finish with fewer imperfections.
This can reduce the need for extensive post-processing such as grinding or polishing. - Suited for Thicker Castings: LPDC excels in producing larger, thicker parts that require more material to fill the mold.
The slow and controlled filling process allows for better quality in thicker parts compared to faster, higher-pressure methods. - Reduced Thermal Stresses: Because LPDC operates at lower temperatures and uses slower cooling rates,
it reduces the risk of thermal stresses, which can cause warping or cracking in the final product.
Limitations of Low-Pressure Die Casting (LPDC):
- Slower Production Rate: LPDC is a slower process compared to high-pressure die casting.
The low-pressure injection and slower mold-filling process means that LPDC typically has longer cycle times, which can be less efficient for high-volume production runs. - Higher Cost per Part for Large Volume: While LPDC provides excellent quality for individual parts, its slower production rate makes it more expensive per part in large-volume production.
For mass production, high-pressure die casting (HPDC) may be more cost-effective. - Limited to Larger Parts: LPDC is best suited for medium to large components, particularly those that require thicker walls.
It is not ideal for smaller, thin-walled parts that require fast, proizvodnja velikog volumena. - Mold Design Complexity: The design of molds for LPDC can be more complex and costly due to the need for features that help facilitate slow, controlled filling.
Molds must also be designed to handle the lower pressure and may require additional considerations to avoid defects. - Limited Application for Very Thin Parts: LPDC is not the best choice for producing parts with very thin walls or small details that require a quick, high-pressure injection to achieve full mold filling.

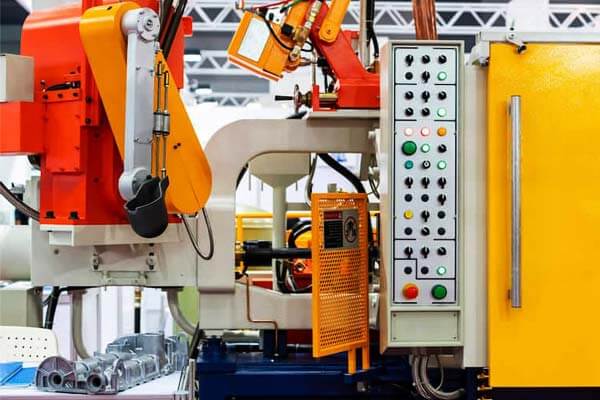

3. Understanding High-Pressure Die Casting (HPDC)
Definicija: What is HPDC?
High-Pressure Die Casting (HPDC) involves injecting molten metal into a mold at extremely high pressures, typically up to 2000 barovi.
This process uses mechanical or hydraulic systems to force the metal into the mold rapidly, enabling quick production with excellent precision.
Pregled procesa:
In HPDC, molten metal is injected into a steel mold at high velocity and pressure, filling the mold cavity almost instantly.
The rapid injection and cooling process ensures that the metal solidifies quickly, producing parts with excellent dimensional accuracy and a smooth surface finish.
HPDC is ideal for high-volume production of small, složeni dijelovi.
Advantages of High-Pressure Die Casting (HPDC):
- High-Speed Production: One of the most significant advantages of HPDC is its speed.
The high pressure enables molten metal to fill the mold quickly, which results in short cycle times and increased production rates.
This is ideal for mass production of parts where speed is a critical factor in meeting market demand. - Excellent Dimensional Accuracy: HPDC provides excellent dimensional precision, with parts having tight tolerances and minimal deviation from the design specifications.
The high pressure forces the molten metal to fill the mold, ensuring that the final parts have consistent and accurate shapes. - Vrhunska završna obrada površine: HPDC produces parts with smooth surfaces, minimizing the need for post-casting operations such as grinding or polishing.
The pressure injection process results in a finely detailed finish that is ideal for cosmetic components and parts that require minimal finishing work. - Ideal for Thin-Walled Components: HPDC is particularly suited for casting thin-walled components.
The high-pressure forces molten metal into even the finest sections of the mold, making it perfect for parts like housings, Komponente motora,
and intricate electronic enclosures that require high strength and precision in thin sections. - Cost-Effective for High-Volume Production: Given its fast cycle time and efficient mold filling, HPDC is cost-effective when manufacturing large quantities of parts.
The reduced labor costs and short production times make it ideal for industries like automotive, where large batches of similar components are required. - Variety of Materials: HPDC can be used with a wide range of materials, uključujući aluminij, cinkov, magnezij, i legure bakra.
This flexibility makes HPDC versatile and adaptable to various industries, from automotive to consumer electronics.
Limitations of High-Pressure Die Casting (HPDC):
- Risk of Porosity:
Despite the high pressure, HPDC can sometimes result in porosity in the cast parts.
This occurs when air pockets or gases become trapped during the molding process, which can weaken the structural integrity of the part.
Proper process control is essential to minimize this risk, but porosity may still occur, especially in highly complex shapes. - Limited to Smaller Parts with High Complexity:
HPDC is ideal for small to medium-sized parts but is less suited for large components.
The complexity of larger parts can result in difficulties in mold filling and uneven cooling, which may lead to defects.
HPDC works best for parts that have thin walls or moderate dimensions. -
Higher Initial Investment:
Setting up a high-pressure die-casting process requires significant upfront costs for molds, strojevi, i alata.
The complexity of the equipment needed and the precision required to achieve quality castings means
that the initial investment can be higher than other casting methods, such as low-pressure die casting or sand casting. - Tool Wear
The high pressure used in HPDC subjects the molds to significant wear over time. This can lead to increased maintenance costs and potential production delays.
Molds for HPDC need to be durable and maintained regularly to ensure the casting process continues smoothly and without interruptions. - Limited Control Over Material Properties:
While HPDC provides high precision in part geometry,
it can sometimes result in reduced control over the material’s final properties, especially in thicker sections.
The rapid cooling process may lead to differences in hardness or microstructure, which can impact the mechanical properties of the final part. - Not Ideal for Low-Volume Production:
Due to the higher setup and equipment costs, HPDC is not ideal for low-volume production.
The process is most cost-effective when producing large quantities of parts, making it less suitable for prototyping or small batches where the investment might not be justified.
4. Key Differences Between Low-Pressure vs High-Pressure Die Casting
| Kriteriji | Lijevanje malog tlaka (LPDC) | High-Pressure Die Casting (HPDC) |
|---|---|---|
| Pressure Used | Low pressure (tipično 1 do 2 barovi) | Very high pressure (do 2000 barovi) |
| Brzina proizvodnje | Slower production rate, suitable for small to medium runs | High-speed production, ideal for high-volume manufacturing |
| Part Size and Thickness | Ideal for thicker, larger parts and components with complex geometries | Best suited for thin-walled, smaller parts with intricate details |
| Površinski završetak | Dobra površinska obrada, but may require additional finishing for larger parts | Izvrsna završna obrada površine, minimal post-processing required |
| Točnost dimenzije | Excellent dimensional control for thicker and larger parts | Exceptional precision and tight tolerances for smaller parts |
| Poroznost | Lower porosity, resulting in fewer imperfections and a better-quality surface | Higher risk of porosity, particularly in thicker sections |
| Material Flow | Improved material flow for complex shapes and intricate designs | Fast material flow, well-suited for producing high-volume, Jednostavni dijelovi |
| Tooling and Equipment Cost | Higher cost for molds and equipment due to slower production | Initial tooling costs are higher, but costs per part decrease in large volumes |
| Vrijeme ciklusa | Longer cycle times due to a slower filling process | Shorter cycle times, faster production rate |
| Najbolje aplikacije | Suitable for large parts such as engine blocks, larger automotive parts, i zrakoplovne komponente | Ideal for high-volume production of smaller parts like transmission housings, zupčanici, and automotive components |
| Complexity of Design | Well-suited for parts with more intricate designs and thicker sections | Best for simpler, thinner designs with less complexity |
5. Material Selection in Low-Pressure vs High-Pressure Die Casting
Material selection plays a crucial role in the die-casting process as it directly impacts the final part’s performance, izdržljivost, i isplativost.
Both Low-Pressure Die Casting (LPDC) and High-Pressure Die Casting (HPDC) offer unique benefits depending on the chosen material.
The properties of the material, such as its flowability, jačina, and resistance to thermal and mechanical stresses, significantly affect the casting process and the quality of the end product.
Materials Used in Low-Pressure Die Casting (LPDC):
LPDC is often used with materials that benefit from slower, more controlled cooling and filling processes.
Tipično, LPDC is well-suited for alloys that require excellent mechanical properties, as well as the ability to form thicker sections or parts with greater dimensional stability.
- Aluminij Legure: Aluminum is the most commonly used material in LPDC.
It offers excellent strength-to-weight ratio, otpor korozije, and high machinability, making it ideal for automotive, zrakoplovstvo, i industrijske komponente.
Aluminum alloys like 356, 380, i 413 are commonly used due to their excellent casting characteristics and ability to handle larger parts. - Legure magnezija: Magnesium alloys are increasingly being used in LPDC for their lightweight properties,
especially in applications where reducing weight is crucial (Npr., aerospace and automotive parts).
Magnesium alloys, such as AZ91, provide good castability and are known for their strength and ease of processing. - Legure cinka: Zinc is another common material for LPDC due to its excellent flowability and low melting point.
Zinc die castings are commonly used in applications that require high-volume production of small to medium-sized parts, such as automotive components, hardver, and electrical enclosures. - bakrene legure: Bakrene legure, including brass and bronze, are sometimes used in LPDC. They offer good strength, otpor korozije, i toplinska vodljivost.
These alloys are particularly suited for parts that require high durability and resistance to wear.
Materials Used in High-Pressure Die Casting (HPDC):
HPDC is most effective for highly fluid materials, allowing for rapid filling and solidification in molds.
The ability to inject molten metal at high pressure into molds makes HPDC ideal for materials that benefit from quick, precizan, i proizvodnja velikih količina.
- Aluminijske legure: Like LPDC, HPDC often uses aluminum alloys, particularly those that can withstand rapid cooling and are suited for high-volume production.
Common aluminum alloys used in HPDC include A380, A356, and A413.
HPDC is preferred for parts that require thinner walls and tighter tolerances, such as automotive components like engine blocks, prijenosna kućišta, and wheels. - Legure magnezija: Magnesium alloys are increasingly used in HPDC, especially for parts where weight savings are critical.
These alloys offer excellent strength-to-weight ratios and are often found in automotive, zrakoplovstvo, and electronic enclosures. - Legure cinka: Zinc is one of the most common materials used in HPDC due to its fluidity,
which allows for fast mold filling. Zinc die casting produces excellent dimensional accuracy and smooth finishes,
making it ideal for high-precision, high-volume applications like automotive, potrošačka elektronika, and hardware. - bakrene legure: While less common than aluminum and zinc alloys in HPDC,
copper alloys such as brass and bronze are occasionally used for specific high-performance applications requiring excellent corrosion resistance and durability. - Lead-Free Alloys: With growing environmental concerns, lead-free alloys are being used more frequently in HPDC.
These alloys are typically based on aluminum or zinc and meet strict environmental regulations without compromising performance.
Key Considerations for Material Selection in LPDC vs HPDC:
- Flowability: HPDC requires materials with excellent flowability at high temperatures to fill molds rapidly,
while LPDC is more suitable for materials that benefit from slower, controlled filling to form thicker, more stable parts. - Snaga i trajnost: Both LPDC and HPDC require strong materials, but LPDC is often used for thicker sections that require higher mechanical strength.
HPDC, with its faster cooling process, can handle thinner sections with high dimensional accuracy but may not provide as much structural integrity for thicker parts. - Razmatranja težine: LPDC is often preferred for materials like aluminum and magnesium alloys when weight reduction is crucial.
HPDC is also used for these materials, but typically for thinner, more intricate parts in high-volume production.
6. Costs: Lijevanje pod niskim pritiskom nasuprot visokotlačnom
Cost considerations are a critical factor when choosing between LPDC and HPDC.
Initial Investment
- Lijevanje malog tlaka (LPDC): The initial setup for LPDC tends to have a higher investment
due to the specialized equipment required for precise pressure control and the mold design suitable for larger, thicker parts.
This includes the cost of the furnace positioned below the mold and the mechanism for applying low pressure. - High-Pressure Die Casting (HPDC): HPDC also requires significant upfront investment but generally less than LPDC when considering large volume production needs.
The machinery used for HPDC is designed to handle high pressures, which can inject molten metal into the mold at speeds up to 2000 bar.
Dodatno, the complexity of the molds needed for HPDC can increase initial costs.
Production Costs
- Unit Cost: In terms of unit cost, HPDC often proves more economical for high-volume production runs because it operates at faster cycle times.
This efficiency reduces the cost per part significantly compared to LPDC. Međutim, for lower volume productions, especially those requiring thicker or larger parts,
LPDC may offer competitive pricing due to its suitability for such specifications without compromising on quality. - Complexity and Material Use: The complexity of parts plays a significant role in determining production costs.
HPDC is ideal for thinner, complex parts that require minimal post-processing, potentially lowering overall production costs.
Obrnuto, LPDC’s ability to produce parts with fewer defects and better material flow might reduce waste and rework costs for certain applications.
Long-Term Costs
- Maintenance and Tool Life: Long-term costs must consider maintenance and tool life.
HPDC machinery typically experiences more wear and tear due to the extreme pressures involved,
leading to potentially higher maintenance costs over time. S druge strane, LPDC, dok je sporije,
can sometimes result in longer tool life thanks to gentler process conditions, possibly reducing long-term maintenance expenses. - Post-Processing Needs: Parts produced via HPDC often require less post-processing due to their excellent surface finish and dimensional accuracy,
whereas LPDC parts may need additional finishing work depending on the application.
These differences impact the overall cost efficiency of each method over the lifespan of a production project.
7. Common Applications for Each Process
Lijevanje malog tlaka (LPDC):
- Automobilski Parts: Blokovi motora, glave cilindra, and larger components.
- Zrakoplovstvo: Strukturni dijelovi, zagrada, and casings.
- Industrial Components: Pumps, ventili, and heavy-duty machinery components.
High-Pressure Die Casting (HPDC):
- Automobilski: Prijenosne dijelove, kućište, and small engine components.
- Elektronika: Enclosures for consumer electronics, konektori, i hladnjake.
- Small Components: Parts that require high precision, such as medical devices and household appliances.
8. Choosing the Right Die Casting Method
When deciding between Low-Pressure vs High-Pressure Die Casting, there are several factors to consider:
- Veličina dijela & Složenost: LPDC is better for thicker, more intricate parts, while HPDC excels in high-volume production of smaller, thinner parts.
- Proizvodni volumen: If you need to produce large quantities quickly, HPDC is your best option.
Međutim, if part quality and precision are more important than volume, LPDC may be more suitable. - Odabir materijala: The type of material being used may also dictate the casting method,
as certain alloys are better suited for LPDC or HPDC. - Budget and Lead Time: If cost and production speed are key considerations, HPDC is ideal.
For specialized parts where precision and quality are more important than volume, LPDC is a better choice.
9. Zaključak
Both Low-Pressure vs High-Pressure Die Casting offer distinct advantages depending on the requirements of the part being manufactured.
Whether you prioritize production speed, koštati, složenost dijela, or precision,
choosing the right method ensures that your parts perform optimally and meet industry standards.
Understanding the differences between these processes will guide you in selecting the best technique for your manufacturing needs.
