Valve Surface Treatments

1. Кіріспе

Valves serve as the linchpin of fluid-handling systems in oil & газ, Электр қуатын өндіру, water treatment and food processing.

Дегенмен, harsh operating conditions—corrosive chemicals, high temperatures, abrasive particles and cyclic stresses—quickly degrade untreated valve surfaces.

By applying the right surface treatment, engineers can boost corrosion resistance by over 90 %, extend wear life by 3–5×, and maintain reliable sealing for millions of on/off cycles.

This article explores valve surface engineering from fundamentals through cutting-edge trends, with data-backed insights and active guidance for valve manufacturers and end users alike.

2. Fundamentals of Surface Treatment for Valves

Valve surface treatment manipulates the outermost microns of a component, creating properties that diverge from the bulk substrate.

Whereas a valve body might boast tensile strength above 400 МПа, its unprotected surface corrodes at rates up to 0.2 mm/year in seawater.

Applying the right finish flips that dynamic, reducing corrosion rates to below 0.005 mm/year.

Key performance criteria include:

• Коррозияға төзімділік: Measured by salt‐spray testing (ASTM B117), where uncoated steel may fail in 24 сағат, while a quality nickel‐phosphorus coating endures over 1 000 сағат.
• Тозуға төзімділік: Quantified via pin‐on‐disk abrasion tests, coatings like tungsten carbide HVOF deliver hardness above 1 200 Дғас, outperforming steel substrate (250 Дғас) by nearly fivefold.
• Беттің кермектігі: Microhardness measurements (ASTM E384) confirm thermal nitriding boosts surface hardness to 600–1 000 Дғас.
• Friction and Sealing: Lower friction coefficients (м < 0.2) in PTFE‐based polymeric coatings help valves achieve bubble‐tight shutoff, especially in ball and butterfly valves.

To qualify a treatment, engineers rely on a battery of tests—salt‐spray, microhardness, adhesion (cross‐hatch), кеуелік (electrochemical impedance)—to validate that coatings withstand real‐world stresses.

3. Major Surface Treatment Technologies

Surface treatment technologies enhance valve performance by forming protective or functional layers that combat corrosion, кию, and environmental degradation.

Each technique has its own strengths, ideal use cases, and material compatibility.

3.1 Electrochemical Processes

Electrochemical surface treatments are widely used in the valve industry to improve corrosion resistance, wear performance, and surface uniformity.

These processes use electrical or chemical energy to deposit or transform materials on the valve surface.

Their precision and adaptability make them suitable for both large industrial valves and small, high-precision components.

3.1.1 Электроплицей

Электроплицей is a process in which a metal layer is deposited on a valve component by passing an electric current through an electrolyte containing the metal ions to be deposited.

This technique is particularly effective for improving corrosion resistance, surface hardness, және эстетика.

Common Electroplated Materials:

• Никель (-Да): Enhances corrosion and wear resistance; commonly used in chemical, майлау & газ, and marine valves.
• Хромий (Кр): Offers a hard, smooth, and decorative finish; ideal for valve stems and seating surfaces.
• Мырыш (Негра): Provides sacrificial corrosion protection; often used for low-pressure, atmospheric applications.

Артықшылықтары:

• Controlled thickness (typically 5–50 µm)
• Good adhesion to steel, жез, and aluminum substrates
• Cost-effective and scalable

Шектеулер:

• May require post-treatment (E.Г., baking) to relieve hydrogen embrittlement
• Line-of-sight process; complex geometries may suffer from uneven deposition

3.1.2 Electroless Plating

Unlike electroplating, electroless plating does not rely on external electrical current.

Орнына, it uses a controlled chemical reaction to deposit a uniform coating on all exposed surfaces—regardless of geometry.

This method is especially valuable for internal valve passages, Жіптер, and blind cavities.

Common Coating Systems:

• Nickel–Phosphorus (Ni–P): Offers uniform thickness and excellent corrosion resistance. High-phosphorus versions (>10% Б) resist aggressive media like acids and seawater.
• Nickel–Boron (Ni–B): Provides superior hardness (>900 Дғас) және қарсылық киіңіз.
• Copper and Cobalt alloys: Used for niche chemical compatibility and lubrication applications.

Артықшылықтары:

• Highly uniform coating (typical thickness: 10–50 µm)
• No need for electrical contact points
• Suitable for complex, high-precision valve components

Шектеулер:

• Slower deposition rates compared to electroplating
• More complex chemistry and bath maintenance

3.1.3 Conversion Coatings

Conversion coatings chemically modify the valve surface to form protective oxide or phosphate layers.

These are often used as standalone treatments or primers for further coatings (E.Г., paint or powder coating).

Main Types:

• Ауысу (Тот баспайтын болат үшін): Removes free iron and enhances corrosion resistance by enriching the chromium oxide layer.
• Phosphating: Produces a crystalline phosphate layer that improves paint adhesion and provides mild corrosion resistance.
• Анодтық (primarily for aluminum valves): Electrochemically forms a thick, stable oxide layer that resists corrosion and can be dyed for aesthetics.

Артықшылықтары:

• Improves paint/coating adhesion
• Enhances corrosion resistance without significantly altering dimensions
• Environmentally adaptable (some processes are RoHS-compliant)

Шектеулер:

• Thin films (әдетте <5 мкм) may not offer sufficient protection in harsh environments without a topcoat
• Not suitable for all metals (E.Г., limited effect on carbon steel)

3.2 Thermal Spray and Physical Deposition

Thermal spray and physical deposition methods create robust, wear-resistant, and corrosion-proof coatings by mechanically or chemically bonding material to a valve’s surface.

These high-energy techniques deliver thicker, denser films than electrochemical processes, making them ideal for severe service conditions.

3.2.1 Flame, HVOF, and Plasma Spraying

Бірінші, flame, high-velocity oxy-fuel (HVOF), and plasma spraying all project molten or semi-molten particles onto the valve substrate at high speed.

Болғандықтан, the particles flatten and bond, forming a continuous, tightly adherent coating up to 500 мкм thick.

• Flame Spraying

• • Материалдар: Алюминий, мырыш, and simple alloys
  • Әдеттегі қалыңдығы: 100-300 мкм
  • Жамандық: Low equipment cost, good corrosion protection for general-purpose valves
  • Шектеулер: Lower bond strength (15–25 MPa) and higher porosity (~5%) than HVOF

• HVOF Spraying

• • Материалдар: Tungsten carbide–cobalt (WC–Co), chromium carbide, nickel alloys
  • Әдеттегі қалыңдығы: 100–500 µm
  • Жамандық: High bond strength (дейін 70 МПа), low porosity (<1%), and hardness exceeding 1 200 Дғас
  • Жағдайды қолданыңыз: Erosion-resistant trim in slurry or sand-laden media reduces wear volume by over 85% compared to bare steel

• Plasma Spraying

• • Материалдар: Ceramic oxides (Альво₃, ZrO₂), metal–ceramic blends
  • Әдеттегі қалыңдығы: 150–500 µm
  • Жамандық: Exceptional thermal stability (operating temperatures up to 1 000 ° °) and chemical inertness
  • Шектеулер: Higher capital cost and need for specialized safety measures

3.2.2 PVD and CVD (Physical and Chemical Vapor Deposition)

Қайта, PVD and CVD deposit ultra-thin, high-performance films in vacuum chambers.

These atom-by-atom processes yield coatings just 1–5 µm thick, but they deliver outstanding hardness, Коррозияға төзімділік, and precise control.

• Physical Vapor Deposition (PVD)

• • Жабындар: Titanium nitride (TiN), chromium nitride (CrN), diamond-like carbon (Дл)
  • Қаттылық: > 2 000 Дғас
  • Adhesion: > 50 МПа (scratch test)
  • Артықшылықтары: Minimal dimensional change, extremely low friction (м < 0.1), and superior wear resistance for critical valve seats and stems

• Chemical Vapor Deposition (CVD)

• • Жабындар: Silicon carbide, boron carbide, silicon nitride
  • Жамандық: Conformal coverage of complex geometries, high chemical inertness, and temperature resistance up to 1 200 ° °
  • Шолу: Requires precise temperature control (400-1 100 ° °) and longer cycle times

Қысқаша, thermal spray techniques excel when valves operate in abrasive, erosive, немесе жоғары температуралы орта, delivering thick, durable barriers.

Сол уақытта, PVD and CVD serve niche applications where ultra-thin, high-hardness coatings and tight tolerances prove critical—often in high-precision or sanitary valve components.

3.3 Polymeric and Composite Coatings

Polymeric and composite coatings deliver versatile, durable protection for valves in corrosive, химиялық, and outdoor environments.

By combining organic resins with reinforcing fillers or inorganic particles, these coatings balance corrosion resistance, Механикалық беріктік, and finish quality.

3.3.1 Epoxy, Polyurethane, and Fluoropolymer Systems

Epoxy, polyurethane, and fluoropolymer coatings each offer unique advantages:

• Epoxy Coatings
  Epoxy resins cure into dense, cross-linked films (50-150 мкм) that resist chemical attack and moisture ingress.
  А 75 µm epoxy layer can withstand over 1 000 hours in a salt-spray chamber (ASTM B117) before white rust appears.
  Үстіне, epoxies adhere superbly to steel substrates, making them ideal primers or standalone finishes for water valves and general industrial service.
• Polyurethane Coatings
  Polyurethane finishes deliver flexibility and abrasion resistance at thicknesses of 60–120 µm.
  They resist UV degradation significantly better than epoxies, retaining gloss and color after 2 000 hours of QUV exposure.
  Болғандықтан, designers choose urethanes for outdoor valves and architectural applications where both aesthetics and durability matter.
• Fluoropolymer Coatings (Ptfe, FEP, PVDF)
  Fluoropolymers resist virtually all chemicals and operate across −50 °C to 150 ° °.
  A typical 25 µm PTFE coating cuts static friction coefficients below 0.05, enabling bubble-tight shutoff in ball and butterfly valves.
  Furthermore, their non-stick surface repels fouling and simplifies cleaning in sanitary or chemical processing plants.

3.3.2 Powder Coatings and Hybrid Organic–Inorganic Films

Powder and hybrid coatings combine ease of application with robust performance:

• Thermoset Powder Coatings
  Applied electrostatically and cured at 150–200 °C, powder coatings form 60–150 µm films that marry corrosion protection with vibrant color options.
  Recent advances deliver salt-spray resistance exceeding 1 000 сағат, along with impact strength over 50 Ж, ideal for municipal valve bodies and outdoor enclosures.



• Hybrid Organic–Inorganic Films
  By integrating silica or ceramic nanoparticles into polymer matrices, hybrid films achieve higher hardness (дейін 600 Дғас) and superior chemical resistance.
  These coatings bridge the gap between pure polymer layers and thick thermal sprays,
  providing 30–100 µm protection with minimal dimensional change—perfect for tight-tolerance valve trims and precision assemblies.

In combination, polymeric and composite coatings offer cost-effective, environmentally friendly solutions.

They excel where thick, uniform barriers and color-coded finishes enhance both performance and user safety.

3.4 Thermochemical Surface Hardening

Thermochemical treatments diffuse alloying elements into the valve substrate at elevated temperatures, creating a hardened surface layer without adding a discrete coating.

These methods enhance wear resistance, fatigue life, and load-bearing capacity—critical for components like stems, орындар, and actuating mechanisms.

3.4.1 Nitriding

Nitriding introduces nitrogen into steel at 500–580 °C, forming hard nitrides within the surface to depths of 0.1–0.6 mm.

This process boosts surface hardness to 600-1 000 Дғас, reduces friction, and improves fatigue strength by 20–30%. Common variants include:

• Gas Nitriding uses ammonia gas; it yields uniform case depths and is suitable for complex geometries.
• Plasma Nitriding employs an electrical discharge in a low-pressure ammonia atmosphere, offering precise control over case depth and minimal distortion.
• Salt-Bath Nitriding provides fast cycle times and consistent results but requires careful handling of molten salt media.

Nitrided valve stems exhibit up to 5× longer wear life under cyclic actuation compared to unprocessed steel.

3.4.2 Карбюрату, Boriding, and Carbonitriding

These treatments diffuse carbon, boron, or both into steel to form hard, wear-resistant layers:

• Карбюрату takes place at 900–950 °C, infusing carbon to depths of 0.5–1.5 mm. Тоқтағаннан кейін, surface hardness reaches 550–650 HV, ideal for high-load applications.
• Boriding (Borocarburizing) introduces boron (and optionally carbon) -та 700–900 °C, producing an ultra-hard (дейін 1 400 Дғас) iron boride layer of 10–30 µm thickness.
  Borided valve components resist abrasive wear and galling exceptionally well.
• Carbonitriding combines carbon and nitrogen diffusion at 800–880 °C, achieving surface hardness of 650–800 HV with case depths of 0.2–0.8 mm.
  This hybrid approach balances toughness and wear resistance.

In abrasive or high-pressure valve trims, borided seals and carburized spindles can extend service intervals by 3–4× relative to untreated parts.

4. Valve Surface Treatment in Special Environments

Valves often operate under extreme conditions that accelerate wear, коррозия, and failure.

Tailoring surface treatments to each service environment transforms a vulnerable component into a durable, high‐performance asset.

Астында, we examine four demanding scenarios—marine/offshore, high‐temperature/high‐pressure, abrasive/slurry, and sanitary/food‐grade—and recommend optimal finishes backed by performance data.

Теңіз және оффшорлық қосымшалар

Saltwater immersion and airborne chloride severely challenge valve metallurgy.

Uncoated carbon steel corrodes at rates up to 0.15 mm/year in seawater, whereas a 25 µm electroless nickel‐phosphorus layer can reduce that to 0.005 mm/year.

To meet these demands:

• Electroless Nickel (Ni–P, ≥12 % Б): Offers uniform coverage on complex geometries, resists pitting in salt spray tests beyond 2 000 сағат (ASTM B117), and maintains surface hardness of 550–650 HV.
• Duplex Stainless Linings: Applying a thin (20–30 µm) Ni–P coat over duplex stainless grades (E.Г., 2205) combines galvanic and barrier protection.
• Fluoropolymer Overcoats: А 25 µm PTFE topcoat seals micro‐porosities, further lowering corrosion rates and preventing biofouling.

High-Temperature and High-Pressure Service

Steam, hot oil, and supercritical fluids push valve materials to their thermal limits. -Та 400 ° °, bare steel forms scaling oxides that spall under cyclic loads. Орнына:

• Thermal Spray Ceramic Coatings (Al₂O₃–13 % TiO₂ by plasma spray): Withstand continuous exposure up to 1 000 ° °, reduce oxidation rates by 70 %, and resist thermal fatigue.
• CVD Silicon Carbide (SiC): Provides a conformal, 2–5 µm barrier sustaining pressures beyond 1 000 bar and temperatures up to 1 200 ° ° without degradation.
• Nitriding: Gas or plasma nitriding at 520 ° ° yields a 0.4 мм hardened case (800 Дғас) that tolerates elevated stress and minimizes creep in valve stems.

Abrasive and Slurry Media

Coal‐fired plants, mining operations, and wastewater treatment expose valves to particulate‐laden flows that erode metallic surfaces at rates over 5 mg/cm²/hour.

Effective defenses include:

• HVOF Tungsten Carbide–Cobalt (WC–Co) Sprays: Produce coatings 200–400 µm thick with porosity below 1 %.
  In ASTM G76 slurry tests, these layers reduce erosion volume by 85 % compared to untreated steel.
• Boriding: Forms a hard (1 200-1 400 Дғас) iron boride layer of 20–30 µm, delivering exceptional resistance to cavitation and particulate impingement.
• Polyurethane Liners: For lower‐temperature slurries, 5–8 mm rubber‐polymer linings absorb impact and abrasion, қызмет ету мерзімін ұзарту 2–3×.

Ас, Фармацевтикалық, and Sanitary Environments

Hygienic processes demand surfaces that resist bacterial adhesion, tolerate frequent cleaning, and avoid contaminant shedding.

Critical requirements include surface roughness RA < 0.5 мкм and FDA‐approved materials:

• Electropolished Stainless Steel (304/316Өшпін): Achieves Ra < 0.4 мкм, eliminating crevices and facilitating CIP/SIP routines.
• PTFE/Liner Coatings: A thin (10–20 µm) fluoropolymer coat provides non‐stick properties, chemical inertness, and temperature resistance up to 150 ° °.
• Chrome‐Free Passivation: Uses nitric or citric acid to enrich the chromium oxide surface without hexavalent chromium, ensuring regulatory compliance (ЕО 2015/863).

5. Valve Surface Treatment Effect Comparison

Selecting the appropriate valve surface finishing involves balancing mechanical performance, Химиялық тұрақтылық, environmental exposure, and cost.

Different surface engineering methods provide distinct advantages,

and their effectiveness can be compared across several key criteria: Коррозияға төзімділік, тозуға төзімділік, temperature tolerance, surface hardness, coating thickness, жіне Шығындар тиімділігі.

6. Selection Criteria & Life-Cycle Considerations for Valve Surface Treatments

Selecting the right valve surface treatment is a critical engineering decision that directly impacts орындау, сенімділік, and total cost of ownership.

Instead of focusing solely on the initial coating cost, a well-informed approach considers material compatibility, operational environment, long-term maintenance, and regulatory compliance.

Material Compatibility and Galvanic Corrosion Risks

Клапанның денелері, stems, орындар, and trims are typically made of materials like carbon steel, Тот баспайтын болат, bronze, or high-performance alloys.

The surface treatment must be compatible with the substrate to avoid:

• Adhesion failure due to thermal expansion mismatches
• Galvanic corrosion, especially in seawater or dissimilar metal assemblies
• Сутегі кірпігі, a risk in some electrochemical coatings (E.Г., electroplated high-strength steel)

Operational Environment and Performance Demands

Different environments impose varied stress conditions:

• Corrosive Environments (E.Г., теңіз, Химиялық өсімдіктер): Favor electroless nickel-phosphorus or fluoropolymer coatings
• High-Temperature Applications (E.Г., steam lines): Require ceramic thermal sprays or nitrided surfaces
• Abrasive Flows (E.Г., slurry valves): Benefit from HVOF coatings or boriding

Lifecycle Cost vs. Capital Expenditure

While some surface treatments (E.Г., HVOF or duplex coatings) are expensive upfront, they can dramatically extend service life, reducing downtime, еңбек, and spare part costs.

Decision-makers should evaluate:

• Mean Time Between Failures (MTBF) improvements
• Reduced maintenance frequency
• Spare part availability and lead times

Maintenance and Repair Considerations

Certain surface finishing allows in-situ repairs, while others require full component replacement. Мысалы:

• Epoxy coatings can be recoated or touched up
• HVOF or ceramic coatings may need full re-application using specialized equipment
• Thin PVD coatings may be difficult to inspect or refurbish

Regulatory and Environmental Compliance

Increasingly stringent regulations require manufacturers to consider:

• RoHS and REACH compliance (E.Г., limits on hexavalent chromium, lead)
• VOC emissions in polymer coatings
• Eco-toxicity and recyclability of coating materials

7. Conclusion and Future Outlook

Valve surface treatment no longer represents a simple “paint job.” Instead, they form a strategic layer engineered for specific environments, balancing cost, орындау, and compliance.

Moving forward, expect smarter coatings that self-heal and self-report, greener chemistries that eliminate heavy metals, and fully automated production lines ensuring flawless, repeatable finishes.

By staying abreast of these advances, engineers can design valve systems that deliver reliability, әсерлілік, and longevity in the toughest conditions.

8. How do I choose the right surface treatment for my valve?

Осы is a professional valve manufacturer offering a comprehensive range of high-quality valves and advanced surface treatment services.

We specialize in customized solutions tailored to meet diverse application requirements and industry standards.

If you are looking for reliable, high-performance custom valves, өтінемін бізбен хабарласыңы. Our team is ready to provide expert support and tailored solutions.



ЖҚС

What types of valves does DEZE manufacture?

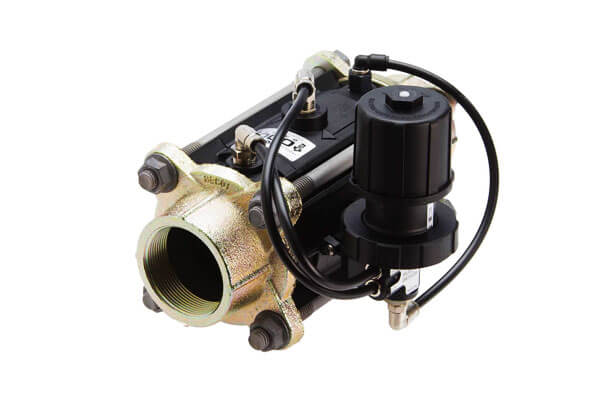

DEZE manufactures a wide range of industrial valves, including gate valves, ball valves, butterfly valves, Глобус клапандары, Тексеру клапандары, and control valves.

These are available in various sizes, pressure classes, and materials to suit applications in water treatment, мұнай-химия, Электр қуатын өндіру, Hvac, және одан да көп.

Do you offer valve customization services?

Иә. We provide fully customized valve solutions based on your project requirements, including dimensions, pressure ratings, end connections, Материалдық таңдау, and surface finishing.

Our engineering team will work with you to ensure the final product meets all technical specifications and performance standards.

Are DEZE valves compliant with international standards?

Иә. Our valves are manufactured according to major international standards, ... қоса алғанда:

• ANSI/ASME (American)
• DIN/EN (European)
• Ол (Japanese)
• Апи, Исо, and GB стандарттар

We also support third-party inspection and certification based on customer requirements.

What is the typical lead time for custom valves?

Lead times depend on the complexity of the valve design and surface treatment requirements. For standard valves, delivery usually ranges from 2 қарай 4 weeks.

Custom or specialty valves may require 6 қарай 8 weeks немесе одан көп. We always aim to meet project timelines efficiently.

How can I request a quote or technical consultation?

You can reach out to us via our website contact form, email, or phone.

Please provide basic project details such as valve type, size, материал, Жұмыс шарттары, and surface treatment needs. Our team will respond promptly with a tailored solution and quotation.
