1. Uvođenje

Swing check valve is a critical component in fluid control systems, engineered to automatically prevent backflow in pipelines.

Its core function is to ensure that fluid flows in only one direction, protecting pumps, Kompresori, and other downstream equipment from potential damage caused by reverse flow.

These valves operate without external control or actuation, relying solely on flow dynamics and gravity to open and close the internal disc.

The widespread use of swing check valves spans numerous industries, including water and wastewater treatment, oil and gas, Generacija energije, Hemijska obrada, and fire protection systems.

Their mechanical simplicity, combined with excellent reliability and ease of maintenance, makes them a popular choice for both low- and high-pressure applications.

2. What is a Swing Check Valve?

A swing provjeriti ventil is a type of Nepovratni ventil designed to allow fluid to flow freely in one direction while automatically preventing backflow.

The valve achieves this function through a simple mechanical design: a disc or flap (the “swing element”) is suspended on a hinge or shaft within the valve body.

When fluid flows in the intended direction, the force of the flow pushes the disc open.

If the flow reverses, the disc swings back into the closed position under gravity or reverse pressure, effectively sealing the passage and blocking backflow.

Key Komponente ventila of a Swing Check Valve

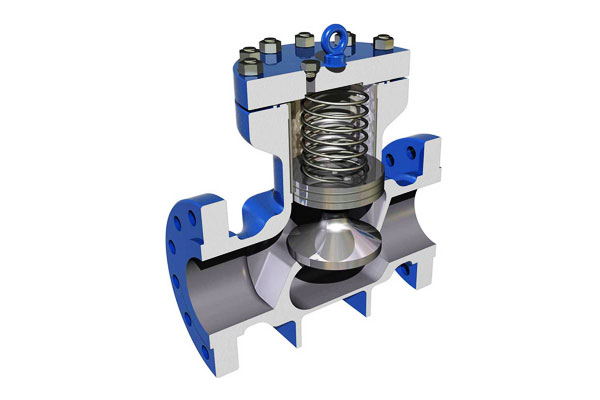

3. How Swing Check Valves Work

Swing check valves operate using a gravitacija- or flow-actuated disc that swings open or closed within the valve body, depending on the direction of the fluid flow.

They are designed specifically to prevent reverse flow in pipelines, ensuring that media such as water, ulja, plin, or steam flows in only one direction.

Princip rada

• Protok naprijed (Valve Open):
  When fluid flows in the intended direction, The momentum of the flow pushes the disc away from the valve seat.
  The disc swings on a hinge or pivot mechanism, allowing fluid to pass through with minimal resistance.
• Obrnuti protok (Valve Closed):
  If the flow reverses or pressure drops downstream, gravity and/or back pressure forces the disc to swing back onto the seat, forming a seal that blocks backflow.
• Closure Speed:
  Critical to performance. Slow closure may allow backflow, while rapid closure can cause “water hammer”—a pressure surge from sudden fluid deceleration.
  Spring-loaded designs or dashpots (fluid-filled dampers) mitigate this by controlling closure time (0.5–2 seconds).

This action is fully automatic—no external operator or actuator is needed. The valve responds purely to changes in flow direction and pressure differential.

4. Common Types of Swing Check Valves

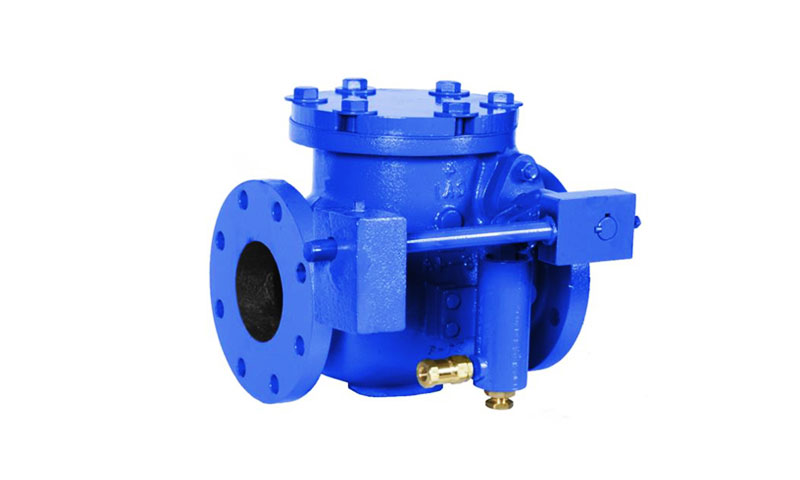

Standard Swing Check Valve

• Opis: A traditional design featuring a disc hinged at the top inside the valve body.
  The disc swings open when fluid flows in the forward direction and closes under gravity or reverse flow pressure.
• Prednost: Jednostavan, cost-effective design with robust construction; easy to maintain and suitable for horizontal installations.
• Aplikacije: Potable water systems, irrigation lines, HVAC systems, and general-purpose industrial pipelines.

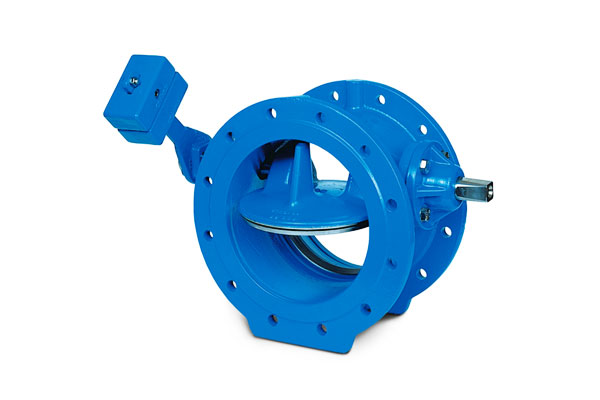

Tilting Disc Swing Check Valve

• Opis: Uses a disc that tilts on a pivot shaft located slightly above its center, allowing partial opening with less pressure and smoother movement.
  The design prevents full swinging, improving control.
• Prednost: Quick closing, reduced water hammer, better suited for applications with fluctuating flow or low pressure differentials.
• Aplikacije: Parni sistemi, process industries, Generacija energije, and thermal fluid pipelines.

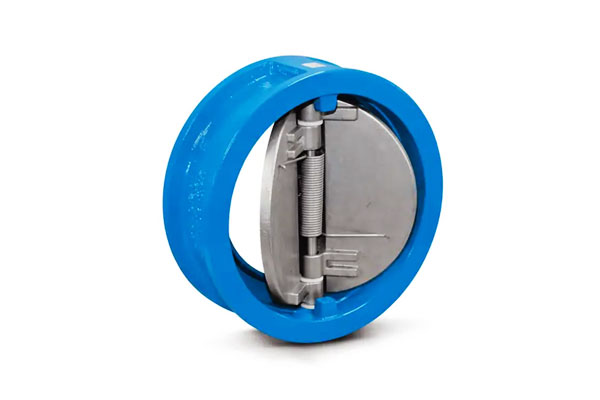

Dual Plate (Double Disc) Provjeriti ventil

• Opis: Contains two spring-loaded semicircular plates that open inward to allow flow. The plates quickly return to closed position when flow reverses.
• Prednost: Compact and lightweight with minimal pressure drop; ideal for reducing water hammer in tight spaces.
• Aplikacije: Ulja & gasovoda, petrochemical plants, Offshore platforme, and shipboard systems.

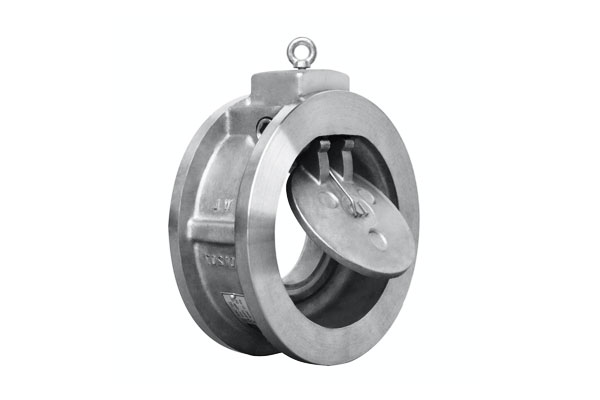

Wafer Swing Check Valve

• Opis: Designed with a slim, flat body that fits between two pipe flanges without the need for extended face-to-face dimensions.
  Usually features a lightweight disc and short swing path.
• Prednost: Saves space and weight, easy to install in existing flange systems, economical for large-volume use.
• Aplikacije: Compressed air lines, chilled water loops, building services, and packaged systems.

Silent (Non-Slam) Provjeriti ventil

• Opis: Incorporates a spring-loaded mechanism that ensures the disc closes gradually and quietly before flow reversal can cause hammering.
  The spring assists the disc closure regardless of installation orientation.
• Prednost: Eliminates water hammer, reduces noise, and allows installation in vertical, horizontal, or inclined positions.
• Aplikacije: Booster pump systems, high-rise building plumbing, fire protection loops, and clean water supply.

Spring-Assisted Swing Check Valve

• Opis: A hybrid swing design with an internal torsion or compression spring that accelerates the closure of the disc when flow stops or reverses.
• Prednost: Faster shut-off to prevent backflow, suitable for applications with pulsating flow or vertical installations.
• Aplikacije: Firefighting systems, irrigation networks, vertical piping installations, and pumping stations.

Y-Type Swing Check Valve

• Opis: The valve body and hinge mechanism are arranged at a 45° angle (“Y” shape), minimizing disc travel distance and improving responsiveness.
  Often used where compactness and faster closure are needed.
• Prednost: Low pressure drop, improved flow characteristics, fast response to flow reversal, and reduced mechanical wear.
• Aplikacije: Steam return lines, chemical and pharmaceutical plants, and high-temperature or aggressive media systems.

Top-Hinged or Counterweight Swing Check Valve

• Opis: Features a disc mounted on a top external hinge, sometimes equipped with a lever arm, counterweight, or dashpot for controlled closure. Allows for adjustable response timing and slam prevention.
• Prednost: Tunable disc behavior, reduced slamming forces, ideal for large-diameter or high-pressure pipelines.
• Aplikacije: Municipal water mains, wastewater treatment facilities, hydropower stations, and pump discharge lines.

5. Materijali: Matching the Fluid and Environment

Selecting the appropriate material is crucial for the reliability, Otpornost na koroziju, and longevity of a swing check valve.

The choice of material should be carefully matched to the nature of the conveyed fluid, operating temperature, pressure rating, corrosiveness, and the installation environment to ensure optimal valve performance and durability.

6. Advantages and Limitations

Prednosti of Swing Check Valve:

• Simple Design and Operation: Swing check valves have a straightforward design with fewer moving parts, making them easy to operate and maintain.
• Pad niskog pritiska: Kada se potpuno otvori, the valve offers minimal resistance to fluid flow, resulting in low pressure loss.
• Bidirectional Flow Prevention: They effectively prevent backflow, protecting pumps, Kompresori, and pipelines from damage.
• Wide Range of Sizes: Available in various sizes, suitable for both small-scale and large industrial applications.
• Versatile Applications: Compatible with a broad spectrum of fluids including water, pare, ulja, and gases.

Ograničenja of Swing Check Valve:

• Slow Closing Speed: The valve’s disc swings closed slowly, which can cause water hammer or surges in some systems.
• Requires Sufficient Flow Velocity: Needs adequate flow velocity to fully open and avoid partial closure or chatter.
• Not Suitable for High Pulsation Systems: Systems with rapid flow reversals or pulsations may reduce valve effectiveness and life span.
• Potential for Wear and Tear: The hinge mechanism and seating surfaces can wear over time, especially in abrasive or corrosive environments.
• Orientation Sensitivity: Proper installation orientation is critical; improper positioning can lead to malfunction or premature failure.

7. Common Applications of Swing Check Valve

• Water and Wastewater Treatment: Used to prevent backflow in pipelines carrying clean or treated water, sewage, and effluent.
• Pumping Systems: Installed on discharge lines of pumps to avoid reverse flow that could damage pump components.
• HVAC Systems: Applied in heating, ventilacija, and air conditioning systems to maintain flow direction and prevent backflow.
• Industrija nafte i gasa: Used in pipelines and processing units to safeguard against reverse flow of crude oil, refined products, and natural gas.
• Generacija energije: Commonly employed in steam and condensate lines to ensure unidirectional flow and protect turbines and boilers.
• Hemijska obrada: Suitable for fluids with moderate corrosiveness where flow direction control is critical.
• Fire Protection Systems: Integrated into sprinkler systems to prevent water backflow, ensuring system readiness.
• Marinac Aplikacije: Utilized in ballast and cooling water systems due to their reliability in preventing reverse flow under varying pressures.

8. Industry Standards and Compliance

Swing check valves are manufactured in accordance with:

• API 594 – Check Valve Design Standard
• ASME B16.34 – Pressure-temperature ratings
• ISO 5208 / API 598 – Pressure testing
• U 12334 – European standard for check valves
• AWWA C508 – Valves for waterworks systems

9. Zaključak

Swing check valves play a vital role in fluid systems, offering a reliable, cost-effective solution to prevent reverse flow.

Their simple design, broad material options, and adaptability make them suitable across a range of industries—from clean water and sewage to oil & gas and power plants.

Proper valve selection, instalacija, and maintenance are key to maximizing performance and longevity.
